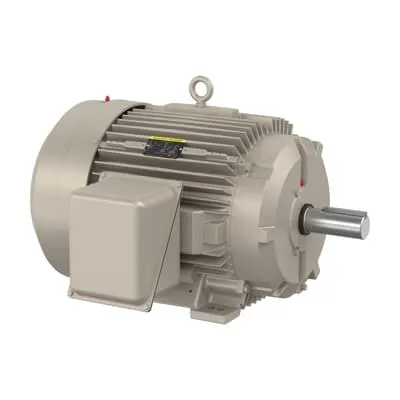

ABB FDEM4314T-5 General Purpose Motor - CSA EEV Certified
Part Number: 7BFDEM4314T-5
Quick Summary
General Purpose Motor FDEM4314T-5 is a high-efficiency 60 HP 575 V motor designed for heavy-duty 3-phase applications. Engineers often confront downtime, energy waste, and maintenance headaches when selecting motors for demanding line speeds. This model integrates robust standards and practical design to minimize risk while maximizing uptime. With CSA EEV and UR certifications, Premium Efficiency performance, and a TEFC enclosure, it meets strict safety and efficiency criteria. Stocked across multiple warehouses, it supports fast delivery and predictable procurement, while compatibility with standard 364T frames simplifies retrofits and maintenance planning for OEMs and end users alike.
Product Information
Extended Description
7BFDEM4314T-5 ABB: General Purpose Motor 60 Hp 575 V (FDEM4314T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1780RPM,3PH,60HZ,364T,A3670M,T
Ambient Temperature
40 °C
Bearing
0.000
Bearing NDE
0.000
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM4314T-5
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
617431-412: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
FDEM4314T-5
Gross Volume
33833.008 in³
Gross Weight
965 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
60HP,1780RPM,3PH,60HZ,364T,A3670M,TEFC,F
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 60 HP, 1800 RPM, Frame Size 364T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (FDEM4314T-
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
87 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
965 lb
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
54.7 A
Rated Efficiency
95 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.38 in
Short Description
60 HP, 1800 RPM, Frame Size 364T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
575 V
Feature: 60 HP output at 575 V for three-phase operation. Business Impact: Delivers reliable power with high torque, reducing process variability and enabling stable throughput in pumps, fans, and conveyors. Application: Suitable for manufacturing lines and process machinery that demand consistent speed and load handling. Feature: Premium Efficiency (NEMA) rated, 95% efficiency with service factor 1.15. Business Impact: Lowers energy costs over the motor’s life, improving total cost of ownership and reducing utility penalties in energy-intensive applications. Application: Continuous duty in process industries, packaging lines, and HVAC systems. Feature: TEFC enclosure and robust frame (364T). Business Impact: Enhanced protection against dust, moisture, and contamination, extending motor life in harsh factory floors and outdoor or semi-indoor installations. Application: Food and beverage, chemical processing, and metalworking environments where enclosure integrity matters. Feature: 4-pole, 1780 r/min synchronous speed, 60 Hz, 3-phase design. Business Impact: Predictable speed profile supports precise process control and improved pump and fan efficiency. Application: Conveyors, mixers, and industrial fluid handling systems requiring stable rotational speed. Feature: Foot-mounted, 364T frame with 2.38 in shaft diameter and DOL starting capability. Business Impact: Simplifies installation and retrofits with standard mounting patterns; minimizes commissioning time and maintenance complexity. Application: OEM equipment upgrades and retrofit projects with minimal downtime. Feature: Stocked At Warehouses and 0-day Lead Time. Business Impact: Immediate availability reduces project delays, improves supply chain resilience, and supports just-in-time manufacturing strategies. Application: Critical plant maintenance and capital projects needing rapid deployment.
Get a Quick Quote for a ABB 7BFDEM4314T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDEM4314T-5?
Enquire Now
FAQs
Yes. The FDEM4314T-5 uses a 364T frame with a foot-mounted base, aligning with common installation footprints. This simplifies retrofits, reduces mounting adaptation time, and supports straightforward alignment with existing couplings and belts in conveyors, pumps, and fans.
The motor is a 575 V, 3-phase unit running at 60 Hz with a 4-pole design. The nominal speed is 1780 r/min, and the rated current is 54.7 A. These specs support reliable operation in typical process and manufacturing equipment while maintaining efficiency targets.
Ideal for manufacturing and processing environments needing reliable drives for pumps, fans, conveyors, and mixers. Its TEFC enclosure and premium efficiency make it suitable for continuous-duty installations in food & beverage, chemical processing, water treatment, and material handling applications.
The motor carries CSA EEV and UR certifications and meets Premium Efficiency standards under NEMA guidelines. The TEFC enclosure supports compliance in harsh environments, while the product’s design aligns with general-purpose motor requirements for industrial facilities.
Warranty terms follow standard industry practices for motors of this class; product information indicates warranty claims require return of the warranted item. The motor is stocked at multiple warehouses with 0-day lead time, supporting rapid deployment and reduced downtime during maintenance or project kickoff.
