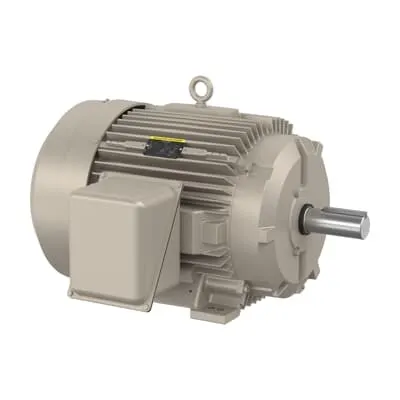

ABB FDEM4316T-5 General Purpose Motor - TEFC Enclosure
Part Number: 7BFDEM4316T-5
Quick Summary
ABB FDEM4316T-5 is a 75 HP general-purpose 3-phase motor designed for demanding industrial drives. This unit delivers dependable performance for pumps, conveyors, and processing equipment at 575 V and 60 Hz. It carries essential certifications for safe, compliant operation, including NEMA Design B, Premium Efficiency, and UL/CSA/UR recognition, ensuring energy efficiency and reliability in harsh environments. With stock available in the United States and other warehouses, you can expect rapid delivery and predictable lead times. The combination of a robust 365T frame, TEFC enclosure, and durable construction translates into lower maintenance costs, easier installation, and a strong return on investment for continuous-running applications.
Product Information
Extended Description
7BFDEM4316T-5 ABB: General Purpose Motor 75 Hp 575 V (FDEM4316T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1780RPM,3PH,60HZ,365T,A36070M,
Ambient Temperature
40 °C
Bearing
0.000
Bearing NDE
0.000
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM4316T-5
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
617428-032: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
FDEM4316T-5
Gross Volume
33833.008 in³
Gross Weight
965 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
75HP,1780RPM,3PH,60HZ,365T,A36070M,TEFC
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 75 HP, 1800 RPM, Frame Size 365T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (FDEM4316T-
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
86 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
965 lb
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
68.7 A
Rated Efficiency
95.40 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.38 in
Short Description
75 HP, 1800 RPM, Frame Size 365T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
575 V
The motor delivers robust torque with 75 HP, 1780 r/min within a 365T frame, providing stable speed and improved control for demanding loads on conveyors and pumps. This translates to fewer process disruptions and higher throughput in manufacturing lines. 575 V, 60 Hz, 3-phase operation paired with Direct On Line starting reduces hardware complexity and startup costs while maintaining energy efficiency through a rated current of 68.7 A and Premium Efficiency (95.40%), supporting meaningful energy cost reductions and regulatory compliance in plant facilities. The TEFC enclosure protects against dust and moisture, extending service life in harsh production environments and simplifying maintenance planning. NEMA Design B, Insulation Class F, and a 0-day lead time stock position ensure reliable integration with existing equipment and fast project ramp-up. The 2.38 in shaft diameter, 965 lb weight, and 365T frame enable straightforward coupling and solid mechanical compatibility with standard industrial drives, reducing installation risk and downtime in heavy-duty applications. Stocking at multiple warehouses (US and international) and clear warranty/return terms help optimize procurement and total cost of ownership for OEMs and maintenance teams.
