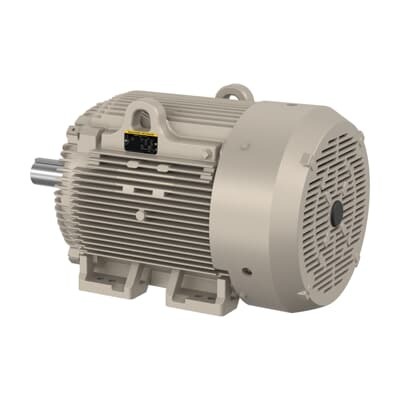

ABB 7BFDEM4400T Farm Duty Motor - CCSA US/CSA EEV/UR
Part Number: 7BFDEM4400T
Quick Summary
ABB Farm Duty Motor 7BFDEM4400T provides reliable 100 HP drive for agricultural equipment and farm systems. In harsh farm environments, uptime and energy efficiency are critical, and equipment must endure continuous duty with minimal maintenance. This model carries CSA EEV, UR, and CCSA US recognition, delivering North American compliance, while its Premium Efficiency design supports lower operating costs and reduced energy waste. With a TEFC enclosure and 230/460 V capability, it aligns with common industrial drives, simplifying procurement and service. By choosing this motor, engineers gain predictable performance, easier sourcing through multiple stocked warehouses, and a clear path to lower total cost of ownership for demanding farm applications.
Product Information
Extended Description
7BFDEM4400T ABB: Farm Duty Motor 100 Hp 230 V (FDEM4400T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
100HP,1785RPM,3PH,60HZ,405T,A40064M
Ambient Temperature
40 °C
Bearing
0.000
Bearing NDE
0.000
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDEM4400T
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
617429-012: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
405
Frequency (f)
60 Hz
Global Commercial Alias
FDEM4400T
Gross Volume
75711.563 inÂł
Gross Weight
601.463 kg
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
100HP,1785RPM,3PH,60HZ,405T,A40064M,TEFC
Made To Order
No
Medium Description
Farm Duty, 100 HP, 1800 RPM, Frame Size 405T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (FDEM4400T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
405T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
100 Hp
Power Factor
87 %
Product Name
Farm Duty
Product Net Depth / Length
41.5 in
Product Net Height
52.5 in
Product Net Weight
601.463 kg
Product Net Width
34.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
224 A | 112 A
Rated Efficiency
95.40 %
Rated Speed
1785 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.88 in
Short Description
100 HP, 1800 RPM, Frame Size 405T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Frame 405T with TEFC enclosure provides robust protection and standardized mounting, reducing installation time and field adjustments. This translates to lower commissioning costs and faster redeployments across multiple farm sites. Premium Efficiency (95.40%) lowers energy consumption and heat generation, delivering measurable operating cost savings on irrigation pumps and belt conveyors. The 230/460 V, 60 Hz, 3-phase configuration supports versatile power sourcing and seamless integration with existing plant electrical systems, improving procurement flexibility and serviceability. Foot-mounted, horizontal mounting (F1) simplifies installation in compact equipment housings and on farm conveyors, while Direct On Line starting minimizes startup hardware and reduces control system complexity. With 1785 rpm (rated) and 1800 rpm synchronous speed, the motor delivers steady torque for continuous-duty farm tasks, improving process reliability and uptime. Shaft diameter of 2.88 in and 405T frame enable straightforward coupling to pumps and fans, while insulation class F and ambient rating of 40 °C support durable operation in warm farm environments. These features collectively reduce total cost of ownership, support regulatory compliance (NEMA/B design), and enable predictable maintenance planning for agricultural facilities.
