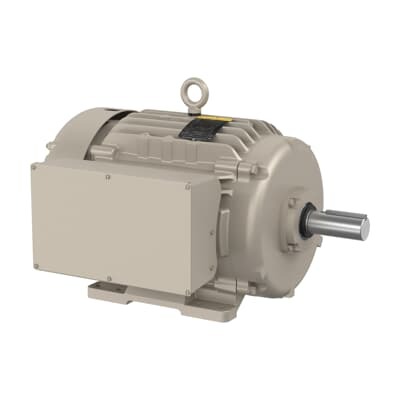

ABB 7BFDL1177T Motors & Drives - 16HP TEFC 208-230V CSA UR
Part Number: 7BFDL1177T
Quick Summary
ABB 7BFDL1177T is a 16 HP farm-duty motor for 208 V single-phase farm automation, optimized for demanding agricultural equipment. This model helps engineers reduce downtime with immediate stock availability and rapid procurement across multiple US warehouses. It carries CSA and UR listings, a NEMA design code L, and a TEFC enclosure rated for a 40 °C ambient, ensuring dependable operation in harsh field conditions. With 60 Hz compatibility and a 256T frame, it delivers reliable performance for pumps, conveyors, and processing lines while enabling energy-conscious design and predictable maintenance planning.
Product Information
Extended Description
7BFDL1177T ABB: Farm Duty Motor 16 Hp 208 V (FDL1177T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
16HP,1740RPM,1PH,60HZ,256T,0956LC,T
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6307 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL1177T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYM634: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
FDL1177T
Gross Volume
14448.906 inÂł
Gross Weight
146.057 kg
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
16HP,1740RPM,1PH,60HZ,256T,0956LC,TEFC,F
Made To Order
No
Medium Description
Farm Duty, 16 HP, 1800 RPM, Frame Size 256T, Standard Mounting, 1 Phase, TEFC Enclosure, 208-230 V, 60 Hz (FDL1177T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
16 Hp
Power Factor
96 %
Product Name
Farm Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
146.057 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
69 A | 61 A
Rated Efficiency
87.50 %
Rated Speed
1740 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.63 in
Short Description
16 HP, 1800 RPM, Frame Size 256T, Standard, 1 PH, TEFC, 208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
208 V | 230 V
Stocked for rapid replacement and 0-day lead times translate to lower downtime and faster repair cycles, especially when time is critical for irrigation systems or production lines. The 256T frame with foot-mount and horizontal mounting orientation simplifies installation on existing bases, reducing retrofit costs and enabling quick uptime recovery in the field. TEFC enclosure provides protection in dusty, humid farm environments, while the 60 Hz, 208-230 V single-phase supply aligns with common agricultural power setups, improving compatibility and reducing wiring complexity. A robust 87.50% efficiency and 96% power factor deliver tangible energy savings and lower utility bills over the motor’s lifetime, supporting a favorable total cost of ownership. Durable bearings (6309/6307) and insulation class F support long service intervals, minimizing maintenance interruptions in remote locations. Direct On Line starting reduces additional components and simplifies control schemes, while the 4-pole, 1740 r/min operation supports stable performance for conveyors and pumps. The motor’s 16 HP output, 69 A nominal current, and 256T frame ensure reliable torque delivery for continuous-duty farm applications, aligning with industry-standard motor bases and spare-part availability. With CSA and UR certification, NEMA design code L, and a robust 40 °C ambient rating, it meets regulatory and environmental expectations for agricultural equipment, enabling reliable performance across seasonal farming operations. Overall, ABB’s Farm Duty solution delivers measurable ROI through uptime extension, energy efficiency, and straightforward installation in agricultural environments.
