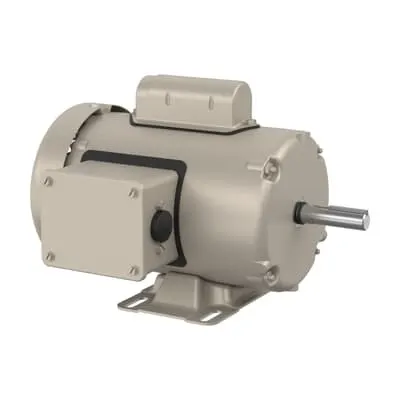

ABB 7BFDL3501M Farm Duty Motor - TEFC
Part Number: 7BFDL3501M
Quick Summary
Farm Duty Motor 7BFDL3501M delivers reliable 0.33 hp from 115 V for agricultural conveyors and small machinery. Engineers often contend with compact motors that fail under dust, moisture, or variable loads, leading to downtime and costly maintenance. This ABB model combines a TEFC enclosure, 60 Hz operation, and a rugged 56 frame to withstand farm and light-industrial environments. It carries CSA and UR certifications along with RoHS compliance, reinforcing safety and environmental responsibility in regulated settings. With a stock-ready profile and zero-day lead times, it adds business value by shortening procurement cycles while maintaining consistent performance across applications such as pumps, fans, and small conveyors.
Product Information
Extended Description
7BFDL3501M ABB: Farm Duty Motor 0.33 Hp 115 V (FDL3501M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1725RPM,1PH,60HZ,56,3414L,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3501M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYM366: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
FDL3501M
Gross Volume
1400.25 inÂł
Gross Weight
23 lb
Horsepower Rating UL/CSA
0.330 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.33HP,1725RPM,1PH,60HZ,56,3414L,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 0.33 HP, 1800 RPM, Frame Size 56, Standard Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (FDL3501M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
60 %
Product Name
Farm Duty
Product Net Depth / Length
13.813 in
Product Net Height
9.375 in
Product Net Weight
23 lb
Product Net Width
10.813 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6 A | 3 A
Rated Efficiency
60 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.35
Service Factor Percentage
1.35 %
Shaft Diameter
0.63 in
Short Description
0.33 HP, 1800 RPM, Frame Size 56, Standard, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
L
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 56-frame, foot-mounted design provides a compact footprint that simplifies installation in tight control panels and equipment bays, reducing required mounting hardware and enabling faster commissioning for farm conveyors and gear-driven fans. This translates to shorter installation times and lower labor costs in OEM assembly lines. Feature → Business Impact → Application: The 115/230 V, 1-phase, 60 Hz voltage rating enables versatile wiring from standard mains, minimizing complex transformer needs and inventory. Use this motor in portable or remote equipment where simple power delivery is essential. Feature → Business Impact → Application: TEFC enclosure delivers robust protection against dust and moisture, improving uptime in dusty barns and outdoor controls, while maintaining consistent performance for pumps and agitators. Feature → Business Impact → Application: Regreasable bearings (6203) and insulation class B support longer intervals between maintenance cycles, reducing total cost of ownership for irrigation pumps and small processing equipment. Feature → Business Impact → Application: Service Factor 1.35 provides a comfortable overload margin for short-duration peak loads, enhancing reliability in conveyors and fans that experience fluctuating demand. Feature → Business Impact → Application: Stocked-at-warehouses and 0-day lead time translate to rapid fulfillment, minimizing production pauses for OEMs and industrial integrators in agricultural sectors. These specifications align with long-tail needs like NEMA Design Code N and horizontal mounting (F1), ensuring compatibility with standard couplings and mounting rails.
Get a Quick Quote for a ABB 7BFDL3501M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDL3501M?
Enquire Now
FAQs
The 7BFDL3501M is a foot-mounted, horizontal (F1) motor with a 56 frame. It runs on 115 V or 230 V single-phase (60 Hz), enabling straightforward wiring from standard mains and easy integration into existing gearboxes and couplings.
Key specs include 0.33 HP, 1725 rpm, 60 Hz, 1-phase operation, service factor 1.35, and a 0.63 in shaft diameter. It uses a TEFC enclosure and is RoHS compliant, with a rated current of approximately 6 A under nominal conditions.
Yes. It is designed for continuous duty with a 60-minute duty rating, suitable for farm equipment like conveyors and pumps. Its TEFC enclosure and rugged bearings help maintain performance in dusty agricultural environments.
The motor carries CSA and UR certifications and RoHS compliance. It also features a TEFC enclosure and a B-class insulation rating, suitable for moderate ambient temperatures up to 40 °C and up to 1000 m altitude.
Lead time is listed as 0 day with stock in multiple warehouses, enabling rapid deployment. Maintenance is minimized by regreasable bearings and a robust 60 Hz design, contributing to lower total cost of ownership in agricultural and light-industrial settings.
