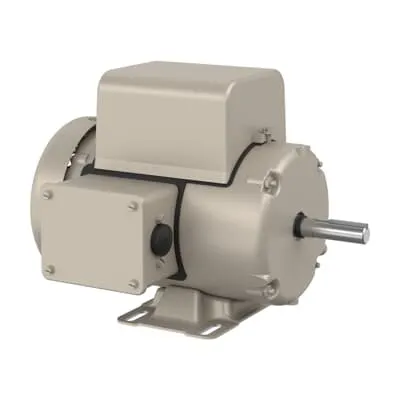

ABB 7BFDL3507M Farm Duty Motor - TEFC Enclosure
Part Number: 7BFDL3507M
Quick Summary
ABB 7BFDL3507M Farm Duty Motor provides dependable 0.75 HP performance for agricultural equipment and farm systems. This single-phase motor runs on 115/230V at 60 Hz, delivering reliable torque for pumps, conveyors, and fans in barns and outdoor installations. It features a TEFC enclosure and a 56-frame footprint for rugged, maintenance-friendly operation in dusty environments. With CSA/UR certification and RoHS compliance, it meets essential safety and environmental standards in North American facilities. The design includes regreasable bearings and a service factor of 1.25 for extended life under variable loads, while straightforward installation supports quick commissioning. Strong stock availability and US-origin manufacturing further reduce downtime, enabling predictable procurement and long-term maintenance planning.
Product Information
Extended Description
7BFDL3507M ABB: Farm Duty Motor 0.75 Hp 115 V (FDL3507M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1725RPM,1PH,60HZ,56,3432LC,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3507M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYM367: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
FDL3507M
Gross Volume
2110.969 inÂł
Gross Weight
37 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.75HP,1725RPM,1PH,60HZ,56,3432LC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 0.75 HP, 1800 RPM, Frame Size 56, Standard Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (FDL3507M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
75 %
Product Name
Farm Duty
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
37 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.8 A | 4.4 A
Rated Efficiency
74 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56, Standard, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
M
Voltage Rating
115 V | 230 V
Feature: Farm-duty rating and 0.75 HP output aligns with common farm power, enabling reliable torque for pumps and fans. Business Impact: Reduces downtime and wiring complexity in barn and field installations. Application: Suitable for water pumps, small conveyors, and ventilation fans in agricultural settings. Feature: 115/230 V single-phase operation at 60 Hz with a 1725 rpm / 4-pole configuration. Business Impact: simplifies electrical design and compatibility with standard farm power supplies, improving install speed and energy efficiency. Application: Ideal for compact, space-constrained equipment where robust start-up performance is needed. Feature: TEFC enclosure and 56-frame footprint. Business Impact: enhances protection against dust and moisture while enabling straightforward mounting on common bases. Application: Outdoor and semi-outdoor farm environments, including pump houses and processing lines. Feature: Regreasable bearings and service factor 1.25. Business Impact: extends bearing life and tolerates demanding loads, reducing maintenance costs. Application: Continuous operation on conveyors and agitation systems with fluctuating loads. Feature: Foot-mounted, horizontal mounting (F1) and DOL starting. Business Impact: simplifies installation and retrofits with existing bases, supporting faster commissioning. Application: OEM projects and retrofit scenarios in mills, barns, and irrigations setups. Feature: RoHS compliant and CSA/UR certified. Business Impact: helps meet regulatory requirements and environmental standards, lowering risk in QA and procurement. Application: Motor used in compliant farm facilities and integrators prioritizing safety compliance.
