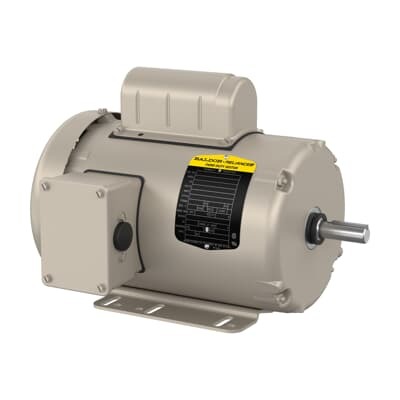

ABB 7BFDL3510M Farm Duty Motor - TEFC 1HP 60Hz
Part Number: 7BFDL3510M
Quick Summary
Farm Duty Motor by ABB 7BFDL3510M delivers reliable 1 HP power for single-phase agricultural equipment. In real-world poultry houses, dairy lines, and small irrigation pumps, downtime and maintenance costs can erode productivity; this motor is designed to minimize both. The unit carries CSA/UR listings, a NEMA design L, and a TEFC enclosure, supporting safe, code-compliant operation in challenging farm environments. With dual voltage options (115 V / 230 V) and a 60 Hz rating, it simplifies procurement and installation while delivering predictable performance and long-term value for distributors, contractors, and end users alike.
Product Information
Extended Description
7BFDL3510M ABB: Farm Duty Motor 1 Hp 115 V (FDL3510M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1740RPM,1PH,60HZ,56H,3524L,TEFC
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3510M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE2559: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
FDL3510M
Gross Volume
3496.049 in³
Gross Weight
41 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1740RPM,1PH,60HZ,56H,3524L,TEFC,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 1 HP, 1800 RPM, Frame Size 56H, Standard Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (FDL3510M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56H
Motor Frame Suffix
H
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
73 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13 A | 6.5 A
Rated Efficiency
67 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56H, Standard, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
L
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: TEFC enclosure enhances windings protection against dust and moisture, extending service life in farm equipment and reducing unplanned maintenance. This translates to lower downtime for feed conveyors and irrigation pumps, improving overall line availability in dairy and poultry operations. Feature → Application → Benefit: 56H frame and foot-mounted design simplify mounting on existing equipment, enabling quick retrofits and minimizing installation costs for farmers upgrading aging motors. Feature → Application → Benefit: Regreasable bearings reduce unexpected failures and maintenance intervals, lowering total cost of ownership in continuous duty applications like barn fans and pump stations. Feature → Application → Benefit: 1 HP, 115/230 V, 60 Hz, 4P configuration delivers robust, single-phase performance with straightforward electrical connections, supporting reliable startup and reduced wiring complexity in farm automation. Feature → Application → Benefit: Direct On Line start and NEMA design L provide compatibility with common motor drives and control panels, improving startup reliability and reducing integration risk in irrigation and processing equipment. Feature → Application → Benefit: Stocked at multiple warehouses with 0 day lead time accelerates project timelines and streamlines procurement for contractors and OEMs servicing rural sites and remote installations.
Get a Quick Quote for a ABB 7BFDL3510M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDL3510M?
Enquire Now
FAQs
Yes, this motor supports dual voltage operation at 115 V or 230 V and 60 Hz. Wiring should follow standard single-phase motor practices, with the appropriate voltage tap selected per nameplate listing. The TEFC enclosure protects windings in dusty environments, while the 56H frame and 0.63 in shaft diameter align with common mounting footprints. For retrofit projects, verify existing control panels support direct on line start and maintain proper grounding and motor protection devices to ensure safe startup and continuous operation.
The motor delivers 1 HP output with a rated current of 13 A (nominal) and a light-load current around 6.5 A, depending on voltage. It features a power factor around 73% and an insulation class of F, which supports reliable operation at 60 Hz. Efficiency is listed as not regulated/exempt in this design, so expect moderate efficiency suitable for cost-conscious farm applications where simplicity and ruggedness are prioritized.
Yes. The 7BFDL3510M Farm Duty Motor is designed for continuous duty with a TEFC enclosure, making it well-suited for pumps and fans in dairy and poultry environments. Its 4-pole, 1725 r/min nominal speed provides steady performance for pumps and conveyors. The unit’s foot-mounted, horizontal F1 mounting and robust frame support straightforward installation in compact spaces common in farm buildings.
The motor carries CSA/UR certification and meets NEMA design standards, offering credible compliance for North American installations. The EN-grade TEFC enclosure and standard mounting parameters further support safe operation in agriculture environments. When integrating with regional electrical codes, confirm panel labeling and protective devices align with CSA/UR guidelines and local requirements.
With regreasable bearings and a durable steel frame, maintenance intervals extend beyond typical sleeve-bearing designs, reducing service calls and lubrication downtime. The TEFC enclosure protects internal windings from dust and moisture, lowering replacement rates. Additionally, stock availability and 0-day lead times shorten project cycles, improving ROI by speeding installations and enabling faster return on investment for irrigation, processing, and material-handling equipment.
