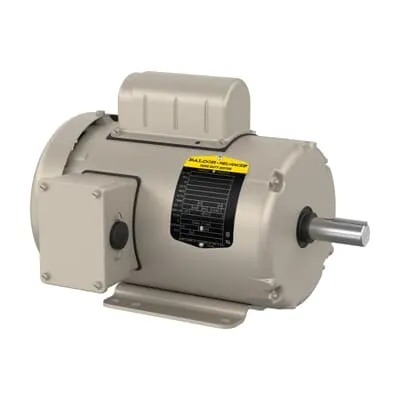

ABB 7BFDL3510TM Farm Duty Motor - 1HP TEFC 115V
Part Number: 7BFDL3510TM
Quick Summary
ABB 7BFDL3510TM Farm Duty Motor provides reliable 1 HP power for farm equipment and light industrial drives. This model addresses reliability and startup challenges that arise in dusty, rural environments, where intermittent duty and harsh conditions test components. It carries CSA and UR certifications and a NEMA design L classification, ensuring compliance and predictable performance across maintenance cycles. With a TEFC enclosure and a 143T frame, installation remains straightforward, while stock availability across major warehouses supports rapid procurement. The motor’s 115/230 V single-phase rating delivers flexible electrical options, helping procurement teams minimize spare parts and maximize uptime for critical farm machinery.
Product Information
Extended Description
7BFDL3510TM ABB: Farm Duty Motor 1 Hp 115 V (FDL3510TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1740RPM,1PH,60HZ,143T,3524L,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3510TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE2360: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
FDL3510TM
Gross Volume
3496.049 inÂł
Gross Weight
40 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1740RPM,1PH,60HZ,143T,3524L,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 1 HP, 1800 RPM, Frame Size 143T, Standard Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (FDL3510TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
73 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
40 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13 A | 6.5 A
Rated Efficiency
67 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143T, Standard, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
L
Voltage Rating
115 V | 230 V
Feature → TEFC enclosure with 143T frame provides robust protection against dust, moisture, and environmental debris. Business Impact → Extends bearing life, reduces unplanned downtime, and lowers maintenance costs in outdoor mills and barns. Application → Farm equipment such as augers, seed conveyors, and light-duty pumps that operate in rugged conditions. Feature → Direct On Line starting simplifies control integration with standard VFDs or direct starters. Business Impact → Faster commissioning, lower capital expense, and fewer components to service. Application → Critical line drives and equipment in remote facilities where quick startup matters, including grain dryers and irrigation pumps. Feature → Dual voltage 115/230 V and 1-phase operation provides installation flexibility. Business Impact → Reduces stocking complexity and enables cross-site deployments. Application → Retrofit projects and new lines across farm facilities, workshops, and small manufacturing lines. Feature → 1 HP, 1725 r/min rated speed at 60 Hz with a 4-pole design delivers consistent torque. Business Impact → Reliable performance under intermittent loads, improving process stability and energy usage. Application → Feed handling, grain processing, and light-duty material handling. Feature → 60-minute duty cycle and service factor 1.15 support occasional high-demand tasks. Business Impact → Improves resilience during peak operation without oversized equipment. Application → Harvest-season equipment and intermittently loaded pumps. Feature → Foot-mounted base, horizontal mounting (F1) with standard drive end flange type simplifies installation and alignment. Business Impact → Reduces setup time and maintenance effort, enabling easy substitutions and OEM replacements. Application → Farm conveyors, pumps, and processing lines where footprint consistency is critical.
Get a Quick Quote for a ABB 7BFDL3510TM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDL3510TM?
Enquire Now
FAQs
Yes. The ABB 7BFDL3510TM supports Direct On Line starting and is compatible with standard control panels and basic VFDs where soft-start is not required. For soft-start or energy-efficient ramping, pair it with an appropriate soft-starter or VFD rated for single-phase motors. This preserves motor life and minimizes electrical stress during startup.
Key specs include single-phase operation at 115 V or 230 V, 60 Hz, 1 HP rated power, and a nominal speed of 1725 r/min. The motor uses a TEFC enclosure, frame size 143T, and a service factor of 1.15. Plan for a 40 °C ambient environment and standard mounting with a foot-mounted base, which influences wiring layout and belt/pulley alignment.
Best-suited applications include augers, grain conveyors, small pumps, and light-duty processing lines. The 143T frame and TEFC enclosure handle dust, moisture, and intermittent loads typical of farm shops. The motor’s 1 HP rating and 60-minute duty cycle support seasonal or peak-load tasks without oversizing the drive.
The 7BFDL3510TM carries CSA and UR certifications, aligns with NEMA design L, and uses a TEFC enclosure. These certifications ensure safety, reliability, and regulatory compliance in North American markets, aiding procurement with a clearly defined compliance profile for maintenance and reliability programs.
Maintenance is straightforward due to the TEFC enclosure, standard 143T frame, and ball bearings (6205/6203). The motor’s low-maintenance design and 1.15 service factor reduce downtime and total cost of ownership, especially in seasonal farming operations. Stocking at multiple warehouses also shortens lead times and improves uptime planning.
