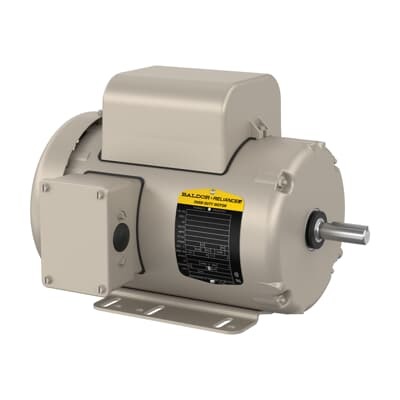

ABB 7BFDL3514M Farm Duty Motor - 1PH 60Hz TEFC
Part Number: 7BFDL3514M
Quick Summary
ABB 7BFDL3514M Farm Duty Motor is a compact, 1.5 HP single-phase motor designed for farm pumps, conveyors, and light industrial equipment. This drive addresses common reliability and start-up challenges in harsh agricultural environments by delivering robust performance with minimal maintenance. It carries CSA | UR certification and a NEMA-compliant TEFC enclosure, ensuring safe operation and regulatory alignment in demanding settings. For OEMs and service teams, this motor provides plug-in readiness, predictable lead times, and scalable options for expanding farm automation and process reliability.
Product Information
Extended Description
7BFDL3514M ABB: Farm Duty Motor 1.5 Hp 115 V (FDL3514M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1750RPM,1PH,60HZ,56H,3532LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3514M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE2560: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
FDL3514M
Gross Volume
3496.049 in³
Gross Weight
49 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1.5HP,1750RPM,1PH,60HZ,56H,3532LC,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 1.5 HP, 1800 RPM, Frame Size 56H, Standard Mounting, 1 Phase, TEFC Enclosure, 115/208-230 V, 60 Hz (FDL3514M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56H
Motor Frame Suffix
H
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
96 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
49 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.4 A | 6.8 A | 6.2 A
Rated Efficiency
80 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35E2560Z997G1
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56H, Standard, 1 PH, TEFC, 115/208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
L
Voltage Rating
115 V | 208 V | 230 V
Feature → Business Impact → Application: The 1.5 HP, 115 V single-phase design enables direct-on-line starting with low electrical stress, reducing installation complexity and downtime on pumping and conveying systems in barns and greenhouses. This translates to faster commissioning and lower total cost of ownership across farm operations. Feature → Business Impact → Application: TEFC enclosure and insulation class F deliver better protection against dust, moisture, and temperature fluctuations, improving uptime for dairy pumps, irrigation pumps, and feed conveyors in outdoor or unconditioned environments. This supports compliance with agricultural standards while extending maintenance intervals and reducing replacement cycles. Feature → Business Impact → Application: Regreasable bearings (6205/6203 ball) and robust frame (56H steel) offer longer bearing life and easier maintenance scheduling, decreasing unplanned repairs in high-humidity barns and feed mills. Feature → Business Impact → Application: Synchronous speed of 1800 r/min and rated speed of 1725 r/min provide consistent torque for conveyors and mixer systems, enabling precise control in packaging lines and grain handling. Feature → Business Impact → Application: 1PH, 60 Hz, and 115 V rating with a high power factor (96%) and 80% efficiency reduce energy costs and heat generation in continuous-operation scenarios, supporting sustainable farm automation. Feature → Business Impact → Application: Compact footprint (Frame 56H, 13.75 in width, 19.375 in length) and foot mounting simplify retrofits and new installations in cramped equipment enclosures, minimizing installation time and misalignment risk in agribusiness equipment. Feature → Business Impact → Application: Regulatory readiness with CSA | UR and NEMA-aligned design helps with procurement approvals and plant-wide compliance when integrating farm-duty motors into irrigation, pumping, and material-handling lines.
