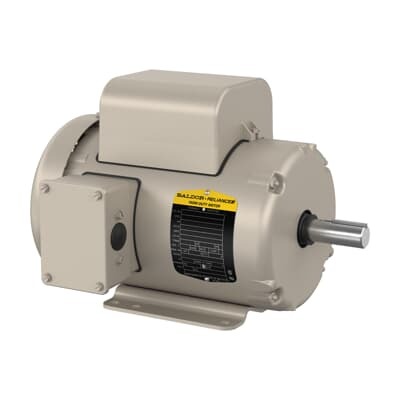

ABB 7BFDL3514TM Farm Duty Motor 1PH 60Hz - CSA UR
Part Number: 7BFDL3514TM
Quick Summary
ABB 7BFDL3514TM Farm Duty motor is designed to deliver reliable single-phase power for durable farm machinery and irrigation pumps. Many users struggle with voltage fluctuations, maintenance-heavy designs, and downtime that disrupt production schedules. It carries CSA and UR certifications, a NEMA Design Code L, and a TEFC enclosure built to withstand dusty outdoor environments. For engineers and procurement teams, the model offers predictable performance, quick availability, and simplified service across multiple warehouses. With 1.5 HP at 60 Hz and 115 V, this motor supports efficient operation in common farm applications while keeping installation and maintenance straightforward for maintenance teams.
Product Information
Extended Description
7BFDL3514TM ABB: Farm Duty Motor 1.5 Hp 115 V (FDL3514TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1750RPM,1PH,60HZ,143T,3532LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3514TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE2351: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
FDL3514TM
Gross Volume
3496.049 inÂł
Gross Weight
51 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1.5HP,1750RPM,1PH,60HZ,143T,3532LC,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 1.5 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 1 Phase, TEFC Enclosure, 115/208-230 V, 60 Hz (FDL3514TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
96 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
51 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.4 A | 6.8 A | 6.2 A
Rated Efficiency
80 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145T, Standard, 1 PH, TEFC, 115/208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
J
Voltage Rating
115 V | 208 V | 230 V
Feature → Business Impact → Application: The TEFC enclosure protects against dust, moisture and harsh field conditions, extending motor life in outdoor farm settings and reducing maintenance frequency for irrigation pumps and belt conveyors. Application: Suitable for harsh farm environments where reliability and long service intervals matter. Feature → Business Impact → Application: 1.5 HP rating delivers adequate driving power for small to mid-size equipment, enabling lower start-up current and energy-efficient operation at 60 Hz and 115 V. Application: Perfect for light-to-moderate duty farm machinery like pumps and material handling lines. Feature → Business Impact → Application: Foot-mounted, horizontal F1 mounting and 145T frame simplify installation in existing equipment footprints, cutting mounting time and retrofit costs. Application: Direct replacement in legacy farm-duty systems with minimal downtime. Feature → Business Impact → Application: Regreasable bearings and continuous-duty design support longer intervals between servicing, boosting equipment uptime. Application: Industrial irrigation systems and farm conveyors with demanding runtime. Feature → Business Impact → Application: CSA and UR certifications provide regulatory assurance and supplier confidence, smoothing procurement and compliance reviews. Application: Projects requiring certified industrial motors for USDA facilities or municipal farms. Feature → Business Impact → Application: Stocked at multiple warehouses with zero-day lead times improves sourcing resilience and reduces project delays. Application: Nationwide and international farm equipment integrations with fast delivery.
Get a Quick Quote for a ABB 7BFDL3514TM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDL3514TM?
Enquire Now
FAQs
Yes. The 7BFDL3514TM is a 1-phase (1PH) motor designed for 115 V and 60 Hz operation, delivering 1.5 HP with a 1725 rpm nominal speed. It supports standard agricultural electrical supplies and is suitable for direct replacement in older single-phase farm equipment. For best results, verify wiring and starter compatibility with your drive system.
Key specs include 1.5 HP output, 1725 rpm rated speed, single-phase operation at 115 V (also compatible with 208-230 V in some configurations), and a rated current around 6.2–12.4 A depending on load. The motor features a 60-minute duty rating, TEFC enclosure, and insulation class F, designed for continuous farm service with reliable performance.
This farm-duty motor excels in irrigation pumps, light conveyors, grain handling, and processing equipment where single-phase power is available. Its 145T frame, foot mounting, and horizontal orientation align with common machinery footprints, enabling quick swaps and straightforward retrofits while maintaining energy-efficient operation in continuous duty scenarios.
The 7BFDL3514TM is CSA and UR certified, reflecting compliance with safety and performance standards. It follows a NEMA design code L and features a TEFC enclosure suitable for dusty and moderately harsh environments. These certifications simplify regulatory approvals and procurement for industrial and agricultural facilities.
Maintenance benefits include regreasable bearings and a durable TEFC design that minimizes exposure to contaminants. The motor’s continuous-duty rating and 1.0 service factor support predictable uptime, while stock availability at multiple warehouses reduces downtime and procurement lead times, contributing to lower total cost of ownership over its service life.
