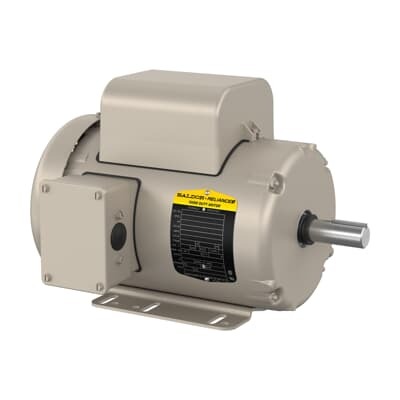

ABB 7BFDL3516TM Farm Duty Motor - TEFC, CSA/UR
Part Number: 7BFDL3516TM
Quick Summary
ABB 7BFDL3516TM Farm Duty Motor delivers 2 HP of reliable power at 230 V for agricultural equipment and light industrial lines. When uptime matters, downtime and sourcing delays can derail projects, so customers need stock-ready solutions with predictable performance. This model carries CSA and UR certifications for electrical safety, and a TEFC enclosure that stands up to dust, moisture, and harsh farm environments, paired with a robust NEMA Design L configuration for strong starting torque. Designed for easy integration into existing layouts, its 56-frame footprint, foot-mounted base, and 1-phase 60 Hz operation simplify installation and reduce retrofits. With fast availability from multiple warehouses, it supports rapid replacements and continuous production.
Product Information
Extended Description
7BFDL3516TM ABB: Farm Duty Motor 2 Hp 230 V (FDL3516TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1740RPM,1PH,60HZ,56HZ,3534LC,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3516TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE2347: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
FDL3516TM
Gross Volume
3496.049 inÂł
Gross Weight
51 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1740RPM,1PH,60HZ,56HZ,3534LC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 2 HP, 1800 RPM, Frame Size 56Hz, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (FDL3516TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56HZ
Motor Frame Suffix
HZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
99 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
51 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.9 A
Rated Efficiency
82.50 %
Rated Speed
1740 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 56Hz, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
J
Voltage Rating
230 V
Feature → Business Impact → Application. The motor delivers 2 HP at 230 V with 1740 r/min speed and 60 Hz frequency, enabling efficient operation of pumps, conveyors, and small processing lines while minimizing energy spikes and electrical load on the system. This translates to measurable improvements in overall process efficiency and steady throughput in farm-to-market workflows. Application-wise, it is well-suited to irrigation pumps, grain conveyors, and washing/handling equipment where single-phase power is the default and reliability is critical. Feature → TEFC enclosure provides dust and moisture resistance, extending service intervals and reducing maintenance costs in dusty barnyards or plant floors. Application: agriculture, processing, and light manufacturing with challenging environments. Feature → Foot-mounted 56 frame with horizontal mounting (F1) simplifies installation and alignment, reducing downtime during retrofits and new line commissioning. Application: retrofit projects and new equipment installations. Feature → Regreasable bearings and long-life insulation (F) lower lubrication and maintenance needs, delivering higher uptime and lower total cost of ownership for continuous-duty use. Application: conveyor systems and pump assemblies in demanding conditions. Feature → High efficiency (82.5%) and 0.99 PF support energy cost reduction and improved electrical design margins, particularly in facilities with tight utility budgets. Application: energy-conscious plants and water treatment or agricultural facilities with frequent cycling. Feature → 1-phase operation with 60 Hz compatibility and 0-day lead time stock at multiple warehouses ensures rapid procurement, minimizing production interruptions. Application: urgent replacements and high-availability manufacturing lines.
