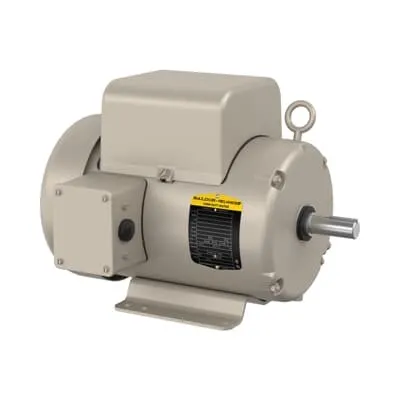

ABB 7BFDL3610M Farm Duty Motor - TEFC 3HP 60Hz
Part Number: 7BFDL3610M
Quick Summary
Farm Duty Motor 3 Hp is designed for durable, reliable operation in farming and light industrial equipment, such as irrigation pumps and conveyors. This single-phase 230 V motor delivers steady performance under variable loads, reducing downtime and maintenance costs. The TEFC enclosure, 60 Hz operation, and 184 frame size ensure compatibility with common US equipment and straightforward retrofits. Certifications from CSA and UL recognition, plus alignment with NEMA standards, provide regulatory confidence for installation in the United States and abroad. By combining rugged construction with predictable torque and a compact footprint, this motor supports efficient plant design and procurement, while offering easy sourcing from stocked warehouses for rapid deployment.
Product Information
Extended Description
7BFDL3610M ABB: Farm Duty Motor 3 Hp 230 V (FDL3610M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1750RPM,1PH,60HZ,184,3640LC,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3610M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYQ171: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
FDL3610M
Gross Volume
5274.135 inÂł
Gross Weight
90 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,1750RPM,1PH,60HZ,184,3640LC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 3 HP, 1800 RPM, Frame Size 184, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (FDL3610M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
76 %
Product Name
Farm Duty
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
90 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
15.5 A
Rated Efficiency
80 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
3 HP, 1800 RPM, Frame Size 184, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
M
Voltage Rating
230 V
Feature: TEFC enclosure provides robust protection against dust, moisture, and contaminants, Business Impact: extends lubricant life and reduces bearing wear, Application: farming equipment operating in dusty or humid environments. Feature: 230 V single-phase, 60 Hz operation simplifies electrical design and installation, Business Impact: lowers wiring complexity and enables immediate retrofit from standard US power feeds, Application: irrigation pumps and conveyors. Feature: Frame size 184 with foot-mounted horizontal mounting, Business Impact: easy mounting in existing equipment and straightforward alignment with couplings, Application: conveyors, agitators, and farm pumps. Feature: Regreasable bearings (6206/6205) and sturdy frame construction, Business Impact: longer service life and predictable maintenance windows, Application: long-run farm duty systems. Feature: 3 HP output at 1750 r/min with 1 PH, 60 Hz, 80% efficiency, Power Factor 76%, Business Impact: reliable torque, energy efficiency, and cost control, Application: continuous operation under 60-minute duty. Feature: Stocked at multiple warehouses (US and international), Business Impact: faster procurement and reduced downtime, Application: rapid deployment to project sites and OEM integrations.
