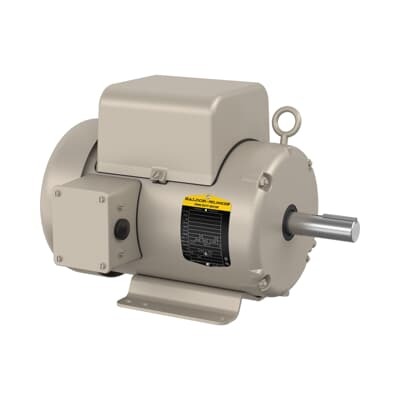

ABB 7BFDL3610TM Farm Duty Motor - 3 HP 230V 1PH TEFC
Part Number: 7BFDL3610TM
Quick Summary
Farm Duty Motor is engineered to power agricultural and processing equipment with reliable 3 HP performance at 230 V for single‑phase systems. This ABB model helps engineers and procurement teams address frequent downtime and compatibility challenges across sites. With CSA | UR certification, NEMA design L, and a TEFC enclosure, the 7BFDL3610TM meets essential safety, reliability, and regulatory requirements. The combination of universal stock availability, straightforward installation, and robust build translates into faster project rollout, lower total cost of ownership, and predictable maintenance for farm automation and material handling applications.
Product Information
Extended Description
7BFDL3610TM ABB: Farm Duty Motor 3 Hp 230 V (FDL3610TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1750RPM,1PH,60HZ,184T,3640LC,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3610TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYQ170: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
FDL3610TM
Gross Volume
5274.135 inÂł
Gross Weight
90 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,1750RPM,1PH,60HZ,184T,3640LC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 3 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (FDL3610TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
76 %
Product Name
Farm Duty
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
90 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
15.5 A
Rated Efficiency
80 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 184T, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
M
Voltage Rating
230 V
Feature → Business Impact → Application: The 3 HP rating at 230 V in a single‑phase configuration simplifies electrical design and reduces wiring complexity on site, enabling faster installation and lower upfront costs for farming equipment and small processing lines. This supports tighter project schedules and easier retrofits in existing facilities. Feature → Business Impact → Application: TEFC enclosure provides durable protection in dusty barns and outdoor mounting scenarios, improving reliability in harsh environments and extending service intervals for conveyors, fans, and pump drives used in horticulture and feed mills. Feature → Business Impact → Application: 184T frame size with a 1.13 in shaft diameter ensures compatibility with standard mounting feet and coupling options, reducing mechanical integration time and enabling quick swaps in legacy lines often found in agri-processing facilities. Feature → Business Impact → Application: 60 Hz operation with 1750–1800 RPM range delivers stable torque for continuous duty cycles, minimizing vibration and wear in grain conveyors, seed sorters, and aeration fans. Feature → Business Impact → Application: CSA | UR certification and NEMA design L alignment provide regulatory confidence and energy efficiency expectations for production lines, enabling auditors and compliance teams to validate the motor in regulated environments. Feature → Business Impact → Application: Stocked at multiple warehouses with 0 day lead time improves procurement predictability and reduces downtime risk for seasonal farming campaigns and export projects.
Get a Quick Quote for a ABB 7BFDL3610TM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDL3610TM?
Enquire Now
FAQs
The motor uses a 184T frame with a foot-mounted base and horizontal mounting orientation (F1). It features a 1.13 in shaft and TEFC enclosure, which supports straightforward coupling to standard drives and belts. Direct-on-line (DOL) starting is typical, simplifying start-up on farm equipment without sophisticated soft-start controls.
This is a 1‑phase, 230 V motor rated at 3 HP with a rated speed of 1750 rpm (synchronous 1800 rpm). It has a service factor of 1.00 and a nominal efficiency around 80%. The class F insulation supports moderate ambient conditions, and ongoing operation is suited for continuous duty in farm environments.
Yes. The motor carries CSA/UR certification and adheres to NEMA design standards (NEMA L design). The TEFC enclosure provides reliable protection against dust, moisture, and incidental splashes, making it suitable for agricultural facilities and light industrial applications.
Common use cases include grain conveyors, feed conveyors, fans, pumps, and basic processing equipment in farming and green industry. The 3 HP rating, 60 Hz performance, and robust frame support reliable operation where single‑phase power is prevalent and installation simplicity matters.
Lead time is listed as 0 days with stock maintained at multiple regional warehouses. This enables rapid procurement, shorter project timelines, and easier maintenance planning for seasonal farming cycles and large equipment refurbishments.
