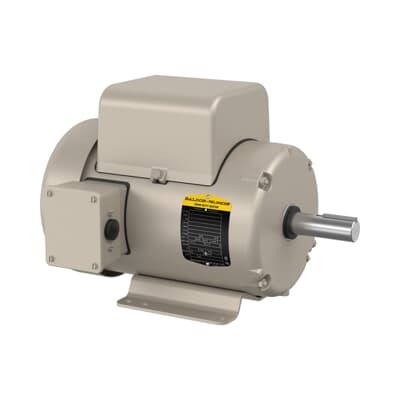

ABB 7BFDL3611TM Farm Duty Motor TEFC - CSA UR
Part Number: 7BFDL3611TM
Quick Summary
Farm Duty Motor is a compact 2 HP single-phase motor designed for reliable agricultural and light industrial use. Owners and maintenance teams often struggle with uptime when motors fail or require frequent service in dusty or damp environments. This ABB model supports durable operation with a TEFC enclosure, 60 Hz performance, and a rugged 182T frame, backed by CSA | UR certifications. The combination of straightforward maintenance, predictable performance, and ready availability translates into lower total cost of ownership for farm equipment, conveyors, and pumps. Its 1-phase operation, 115/230 V flexibility, and direct-on-line starting simplify installation and retrofit projects.
Product Information
Extended Description
7BFDL3611TM ABB: Farm Duty Motor 2 Hp 115 V (FDL3611TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1725RPM,1PH,60HZ,182T,3634L,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3611TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYQ168: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
FDL3611TM
Gross Volume
5274.135 inÂł
Gross Weight
77 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1725RPM,1PH,60HZ,182T,3634L,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 2 HP, 1800 RPM, Frame Size 182T, Standard Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (FDL3611TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
67 %
Product Name
Farm Duty
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
77 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
28 A | 14 A
Rated Efficiency
75 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
2 HP, 1800 RPM, Frame Size 182T, Standard, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
J
Voltage Rating
115 V | 230 V
Feature → The TEFC enclosure protects windings and bearings from dust, moisture, and agricultural debris, reducing unplanned downtime. Business Impact → Fewer service calls and more consistent run times across conveyors, pumps, and augers in barns, grain handling facilities, and processing lines. Application → Ideal for farm equipment, irrigation pumps, and small industrial conveyors. Feature → The 2 HP, 1725 r/min, 4-pole design delivers reliable torque with a stable speed profile under varying loads. Business Impact → Improved process control and predictable performance while maintaining energy efficiency in packaging lines and feed systems. Application → Suitable for light industrial tasks and farm-duty drives. Feature → 182T frame with foot mounting enables straightforward retrofit and fast installation. Business Impact → Reduced downtime during replacement and simplified alignment with existing bases; minimizes soft-start complexity when used with direct-on-line starting. Application → Replacement motors in legacy equipment and OEM integrations. Feature → Regreasable bearings and steel frame extend service life in temperature swings and intermittent duty. Business Impact → Lower maintenance costs and longer maintenance intervals, essential for remote farms or facilities with limited service access. Application → Continuous-duty fans, augers, and pumps with remote locations. Feature → CSA | UR certification and NEMA design alignment provide safety and compatibility assurance for industrial facilities. Business Impact → Compliance simplification, faster procurement, and reduced risk in regulated environments. Application → OEMs, integrators, and fleet operators seeking certified Farm Duty motors. Feature → Stocked at multiple warehouses with 0-day lead time supports project timelines and procurement certainty. Business Impact → Minimized project delays, on-time commissioning, and improved ROI for implementation teams. Application → Large-scale farm installations and plant retrofits needing immediate availability.
