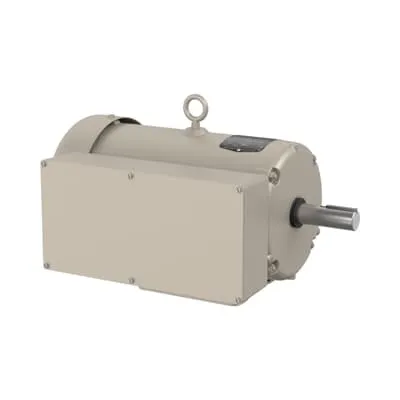

ABB 7BFDL3612TM Farm Duty Motor 5HP 230V 60Hz - CSA UR
Part Number: 7BFDL3612TM
Quick Summary
ABB 7BFDL3612TM Farm Duty motor delivers 5 HP at 230 V for agricultural and light industrial applications. This single-phase motor is designed for straightforward installation and reliable operation in farm environments. If you’re grappling with inconsistent performance, short equipment life, or difficult procurement, this motor offers a practical, readily stocked solution. With CSA and UR certifications, a TEFC enclosure, and a rugged 184T frame, it supports compliance and protection in demanding settings. Stocked across multiple warehouses, it reduces downtime and accelerates project timelines. Its 1-phase, 60 Hz specification aligns with common industrial mains, enhancing compatibility and speed of commissioning for OEMs and maintenance teams.
Product Information
Extended Description
7BFDL3612TM ABB: Farm Duty Motor 5 Hp 230 V (FDL3612TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1725RPM,1PH,60HZ,184T,3646LC,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3612TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYQ167: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
FDL3612TM
Gross Volume
7192.91 inÂł
Gross Weight
100 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1725RPM,1PH,60HZ,184T,3646LC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (FDL3612TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
88 %
Product Name
Farm Duty
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
100 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
23 A
Rated Efficiency
80 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
J
Voltage Rating
230 V
Feature → Business Impact → Application: Farm Duty design with 5 HP at 230 V 60 Hz delivers ample power for pumps, conveyors, and ag machinery while maintaining efficiency. This translates to more reliable startup, reduced risk of stalls, and predictable performance in irrigation or grain handling systems. Feature → Application: The 184T frame and foot-mounted base simplify installation on existing bases or equipment carts, reducing retrofit time and permitting quick integration into shop floors and barns. Feature → Application: TEFC enclosure provides robust protection against dust, moisture, and outdoor exposure, extending service intervals in dusty or humid agricultural environments. Feature → Application: Direct On Line starting and single-phase operation streamline electrical design, lowering upfront costs and enabling straightforward control with standard 230 V supply hardware. Feature → Application: Insulation Class F and a 60-minute duty rating ensure thermal endurance during continuous operation, supporting longer runs between maintenance cycles. Feature → Application: Regreasable lubrication and a 1-phase, 60 Hz, 5 HP specification offer long-term reliability with easy maintenance plans, boosting uptime for OEMs and farm equipment integrators. Feature → Application: The motor is compatible with common frame, mounting, and shaft standards (1.13 in shaft diameter, 184T frame), enabling straightforward replacement and spare-part strategies for service teams. Feature → Application: 23 A rated current and 80% efficiency provide predictable electrical design loads and improved energy budgeting, aiding procurement and electrical protection sizing for plant engineers. Feature → Application: Stocking at multiple warehouses (US, China) with 0-day lead time supports rapid deployment in urgent repair scenarios, reducing downtime and accelerating project delivery for automation integrators.
Get a Quick Quote for a ABB 7BFDL3612TM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDL3612TM?
Enquire Now
FAQs
This motor uses a foot-mounted base with an 184T frame and horizontal F1 mounting. Ensure proper shaft alignment, secure base bolts, and adequate ventilation for thermal management. Use a direct-on-line start with a suitable 230 V supply and wire protection sized for a 23 A current draw. Confirm mounting clearance for service access and lubrication intervals.
Key specs include 5 HP output, 230 V rated voltage, 60 Hz frequency, single-phase operation, 4 poles, rated current 23 A, efficiency around 80%, and a power factor of 88%. It features a TEFC enclosure and insulation class F, with direct-on-line starting for simple connection to standard mains.
Yes. It is rated for continuous duty (60 Min) and equipped with a TEFC enclosure for environmental protection. The 1-phase, 60 Hz design and NEMA L design code support reliable operation in farm settings, while regreasable lubrication simplifies long-term maintenance.
The motor carries CSA and UR certifications, providing safety and compliance assurances for installation in regulated facilities. It also aligns with NEMA standards and a TEFC enclosure, which supports reliable performance in rough environments and helps streamline procurement with vetted suppliers.
Expect periodic lubrication with its regreasable bearings and routine inspections for the 60-minute duty cycle. The 184T frame and 1-phase design reduce spare parts complexity, while 0-day lead times and multi-warehouse stocking minimize downtime, delivering faster project completion and lower lifecycle costs.
