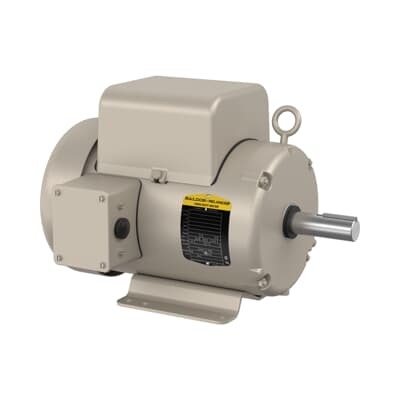

ABB 7BFDL3619TM Farm Duty Motor - TEFC 1PH 60Hz CSA/UR
Part Number: 7BFDL3619TM
Quick Summary
ABB 7BFDL3619TM Farm Duty motor is designed to deliver reliable 3 HP performance for agricultural equipment and industrial farm lines, operating on 230 V single-phase 60 Hz networks. This motor is engineered to withstand the demanding conditions of outdoor farms, barns, and processing areas, reducing downtime and maintenance costs for equipment like conveyors, pumps, and fans. With CSA/UR certification and adherence to NEMA design standards, it provides regulatory confidence for U.S. and global projects. The unit's TEFC enclosure, regreasable bearings, and sturdy 184T frame support long service life in dusty, humid, or temperature-variable environments. When you need rapid availability and predictable performance, this motor aligns with procurement SLAs and total cost of ownership goals.
Product Information
Extended Description
7BFDL3619TM ABB: Farm Duty Motor 3 Hp 230 V (FDL3619TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1725RPM,1PH,60HZ,184T,3634LC,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3619TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYQ165: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
FDL3619TM
Gross Volume
5274.135 in³
Gross Weight
82 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,1725RPM,1PH,60HZ,184T,3634LC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 3 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (FDL3619TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
90 %
Product Name
Farm Duty
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
82 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.2 A
Rated Efficiency
81.50 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 184T, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
H
Voltage Rating
230 V
Feature: 184T frame size and foot-mounted horizontal mounting enable straightforward replacement and alignment with a wide range of farm equipment. Business Impact: Reduces installation time and lowers retrofit costs while ensuring compatibility with standard bases. Application: Conveyor belts, irrigation pumps, and grain handling systems benefit from quick swaps during seasonal maintenance. Feature: TEFC enclosure protects the winding from dust, moisture, and agricultural debris. Business Impact: Extends motor life in harsh environments, lowering maintenance frequency and downtime. Application: Outdoor barns, feedlots, and dusty processing areas require robust sealing for reliable operation. Feature: 3 HP output at 230 V, 60 Hz, single-phase design with a rated current of 13.2 A. Business Impact: Delivers adequate torque for medium load tasks with moderate energy use, supporting favorable total cost of ownership. Application: Small to mid-size irrigation pumps and farm conveyors. Feature: 1725 r/min (60 Hz) with 4-pole configuration and DOL starting. Business Impact: Predictable performance with simple, fast starting sequences, reducing electrical spikes on power networks. Application: Continuous duty scenarios where responsiveness matters, like feed systems. Feature: Regreasable bearings (6206 / 6205 Ball) and F insulation class offer durable operation and easier service intervals. Business Impact: Lower maintenance costs and longer intervals between bearing replacements. Application: High-humidity or dusty environments where lubricants can degrade quickly. Feature: CSA | UR certification and adherence to NEMA design standards. Business Impact: Regulatory confidence for bidding and compliance audits, enabling faster approvals and safer procurement. Application: U.S. and international projects requiring recognized motor certifications. In addition to these, the motor is stocked at multiple warehouses (EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU), ensuring rapid lead times for project schedules and minimizing the risk of stockouts during critical builds. This aligns with long-tail search intents around farm-duty motors, single-phase 230 V motors, and TEFC-protected equipment in agricultural settings.
