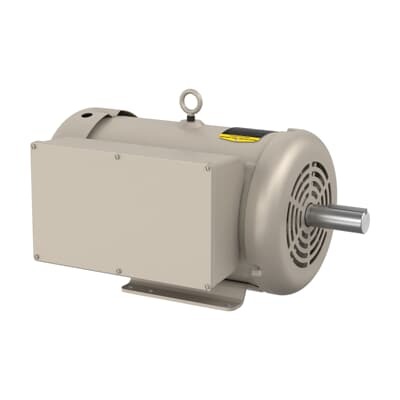

ABB 7BFDL3712TM Farm Duty Motor - 10 HP 230V TEFC
Part Number: 7BFDL3712TM
Quick Summary
Farm Duty Motor is a 10 HP, single-phase 230 V motor designed for continuous farm equipment applications. Engineers often struggle with long lead times, compatibility gaps with existing drives, and high maintenance costs in rural farm installations. CSA | UR certified with TEFC enclosure and NEMA design standards helps ensure safety and regulatory compliance. This motor pairs rugged steel construction, fast US stocking, and predictable performance to support farm automation and material handling. With a 60-minute duty, 4-pole, 1730 rpm design, it balances power, efficiency, and reliability for demanding agricultural loads. The 230 V single-phase supply aligns with common rural electrical infrastructure, minimizing wiring changes and downtime for maintenance teams.
Product Information
Extended Description
7BFDL3712TM ABB: Farm Duty Motor 10 Hp 230 V (FDL3712TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1730RPM,1PH,60HZ,213T,3752LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3712TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYN374: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
FDL3712TM
Gross Volume
7561.383 inÂł
Gross Weight
160 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,1730RPM,1PH,60HZ,213T,3752LC,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (FDL3712TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
96 %
Product Name
Farm Duty
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
160 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
39 A
Rated Efficiency
86.50 %
Rated Speed
1730 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
G
Voltage Rating
230 V
The Farm Duty configuration provides 10 HP at 1730 RPM from a 230 V single-phase supply, delivering consistent torque for continuous loading in irrigation pumps and grain conveyors. This translates to reduced risk of motor stall and improved uptime in demanding agricultural environments. TEFC enclosure with a robust steel frame enhances dust and moisture resistance, supporting reliable operation in barns, fields, and exposed equipment while simplifying outdoor installation and maintenance. A rated current of 39 A and efficiency of 86.5% with a power factor of 96% lowers energy bills and reduces electrical stress on panels and wiring, improving overall site efficiency. Regreasable lubrication and durable bearings (6307 and 6206) extend service intervals, minimizing maintenance costs in busy farm seasons. The 215T frame size, foot-mounted base, and standard drive end flange streamline installation, alignment, and coupling with existing gearboxes and belts. Global stock across multiple warehouses reduces lead times, ensuring rapid replacement during peak harvest cycles and emergencies.
