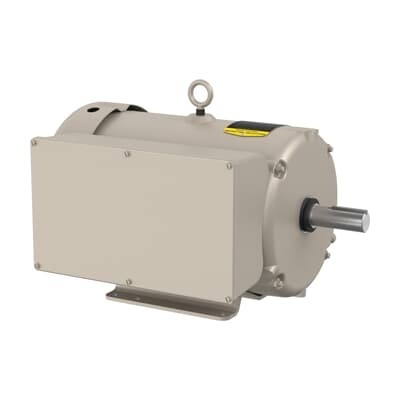

ABB 7BFDL3732M Farm Duty Motor - 7.5HP, 230V CSA UR
Part Number: 7BFDL3732M
Quick Summary
Farm Duty Motor with ABB 7BFDL3732M delivers dependable 7.5 HP performance for agricultural equipment and conveyors. This single-phase 230 V motor is designed for continuous farm operation, minimizing downtime and maintenance costs. The design carries CSA | UR certifications and a NEMA Design Code L with a TEFC enclosure, ensuring rugged reliability in dusty, outdoor environments. By aligning with frame size 213 and 60 Hz operation, the motor integrates smoothly with existing farm drives and Baldor-Reliance components, reducing sourcing complexity. For procurement teams, this ensures reliable supply, predictable lead times, and total cost-of-ownership benefits across multiple warehouse locations.
Product Information
Extended Description
7BFDL3732M ABB: Farm Duty Motor 7.5 Hp 230 V (FDL3732M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1730RPM,1PH,60HZ,213,3740LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3732M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYN373: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
FDL3732M
Gross Volume
7561.383 inÂł
Gross Weight
147 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,1730RPM,1PH,60HZ,213,3740LC,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 7.5 HP, 1800 RPM, Frame Size 213, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (FDL3732M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
97 %
Product Name
Farm Duty
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
147 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
30 A
Rated Efficiency
84 %
Rated Speed
1730 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
H
Voltage Rating
230 V
Feature: 1-phase 230 V operation provides broad compatibility with common farm electrical systems. Business Impact: Simplifies installation, reduces wiring complexities, and lowers initial wiring costs. Application: Ideal for irrigation pumps, grain conveyors, and barn equipment that operate off standard single-phase power. Feature: 7.5 HP with 1730 RPM and frame size 213 delivers ample torque for medium-load agricultural tasks. Business Impact: Improves startup performance and steady operation under variable load, reducing motor stall risk. Application: Feed conveyors, augers, and auger conveyors in mid-size farming operations benefit from reliable torque delivery. Feature: TEFC enclosure protects windings and bearings in dusty, humid, or outdoor environments. Business Impact: Extends service life, minimizes maintenance, and preserves performance in harsh settings. Application: Outdoor barns, field installations, and manure handling equipment rely on durable protection. Feature: Insulation Class F and Regreasable bearings (6307/Ball, 6206/Ball) support higher operating temperatures and easier maintenance. Business Impact: Enhances reliability during hot Texas summers or humid climates, while Regreasable bearings cut routine maintenance costs. Application: Farm duty motors used in warm climates or remote locations where maintenance windows are limited. Feature: NEMA Design Code L and 60 Hz operation ensure compatibility with standard electrical design practices. Business Impact: Speeds up procurement and integration with existing control panels and VFD-free installations. Application: Systems requiring plug-and-play performance with minimal customization. Feature: 1 Ph, 60 Hz, 230 V, 30 A rated current, and 7.5 HP rated output provide predictable electrical loading for budgeting and panel design. Business Impact: Reduces overdesign and improves energy planning, contributing to lower total cost of ownership. Application: Agricultural equipment that operates continuously with modest starting currents benefits from stable power characteristics. Overall, ABB’s farm-duty motor supports cross-brand compatibility, ensuring procurement teams can source from the Baldor-Reliance family with confidence.
Get a Quick Quote for a ABB 7BFDL3732M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDL3732M?
Enquire Now
FAQs
The 7BFDL3732M is a 1‑phase, 230 V motor designed for horizontal, foot-mounted installation with a frame size of 213. It uses a TEFC enclosure suitable for dusty or outdoor environments and supports direct-on-line starting. When integrating with existing panels, ensure your service is configured for 30 A continuous current and that the control circuit aligns with a single-phase supply. This motor’s Baldor-Reliance lineage helps ensure compatibility with common drive components and standard mounting footprints, reducing installation time.
Key specs include 7.5 HP output, 1730 r/min rated speed (frame 213), 230 V, 60 Hz, 1 phase, and 30 A rated current. Insulation Class F and a TEFC enclosure provide heat and environmental protection, while Regreasable bearings (6307/Ball and 6206/Ball) support extended service life. The motor also features a NEMA Design Code L designation and a 0-day lead time in shared inventories for faster fulfillment.
Yes. The Farm Duty designation, combined with 1‑phase 230 V operation and TEFC protection, is tailored for continuous, medium-load agricultural applications. Its 7.5 HP output and 1730 RPM speed provide reliable torque for pumps and conveyors, while the frame size (213) and mounting options integrate smoothly with typical farm equipment layouts and existing Baldor-Reliance components.
The 7BFDL3732M carries CSA | UR certifications, reflecting electrical safety and performance compliance. It uses a NEMA Design Code L and a TEFC enclosure, which aligns with industry expectations for rugged outdoor or dusty environments. These certifications simplify supplier qualification, streamline audits, and support regulatory conformity in many regions.
Regreasable bearings reduce downtime by enabling proactive lubrication cycles, while the TEFC enclosure minimizes external contamination and cleaning needs. The motor’s durable F insulation class and robust frame (213) support longer service life in hot climates. With broad warehouse stocking (EGAUT001, GBINS001, SGIND004, USABB014), you gain faster parts availability, lower total cost of ownership, and reduced downtime on farm production lines.
