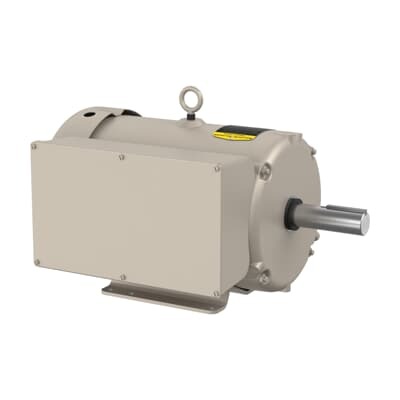

ABB 7BFDL3733TM Farm Duty Motor - NEMA L
Part Number: 7BFDL3733TM
Quick Summary
ABB 7BFDL3733TM Farm Duty Motor delivers reliable single-phase power for farm equipment and processing. Running in demanding rural environments, it minimizes downtime and maintenance costs through robust bearings and a rugged TEFC enclosure. It carries CSA/UR certification and a NEMA design L, ensuring safe, compliant operation in agricultural settings. With 7.5 HP at 230 V and 1730 rpm in a compact 213T frame, it installs quickly and scales for irrigation pumps, conveyors, and farm fans. Stocked across multiple warehouses with 0 day lead time, it supports fast procurement and predictable maintenance budgets.
Product Information
Extended Description
7BFDL3733TM ABB: Farm Duty Motor 7.5 Hp 230 V (FDL3733TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1730RPM,1PH,60HZ,213T,3740LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3733TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYN371: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
FDL3733TM
Gross Volume
7561.383 inÂł
Gross Weight
146 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,1730RPM,1PH,60HZ,213T,3740LC,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 7.5 HP, 1800 RPM, Frame Size 213T, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (FDL3733TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
97 %
Product Name
Farm Duty
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
146 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
30 A
Rated Efficiency
84 %
Rated Speed
1730 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213T, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
H
Voltage Rating
230 V
Feature → Business Impact → Application: The 7.5 HP output at 230 V 60 Hz provides ample torque for moderate load farm equipment, reducing the need for oversized drives and lowering initial installation costs. This translates to improved energy efficiency and a lower total cost of ownership for irrigation pumps and grain conveyors. Application: Suitable for single-phase farm duty motors in irrigation, processing lines, and barn fans, where compact footprint and straightforward installation matter. Feature → Business Impact → Application: TEFC enclosure protects a rugged steel frame in dusty, dirty farm environments, decreasing maintenance time and extending service intervals. This reduces downtime in feed mills and dairy operations. Application: TEFC motors are ideal for open-structure environments and wash-down readiness in agricultural facilities. Feature → Business Impact → Application: Direct On Line start capability lowers control system complexity and upfront hardware costs, enabling reliable startup for fans and small conveyors. Application: Quick deployment in line-start scenarios without soft-start equipment. Feature → Business Impact → Application: 213T frame size and foot mounting with horizontal orientation simplify alignment and mounting in existing farm equipment, cutting installation time and improving vibration control. Application: Belt conveyors and augers benefit from stable mounting and predictable performance. Feature → Business Impact → Application: Regreasable bearings (6307 / 6206) extend bearing life in dusty barns and environments with limited maintenance windows, reducing maintenance frequency and parts cost. Application: Grain handling and feed equipment with periodic lubrication schedules. Feature → Business Impact → Application: 1-phase operation and 1730 r/min nominal speed offer predictable performance for small pumps and agitators, facilitating straightforward system integration and control. Application: Farm irrigation pumps and dairy plant mixing equipment.
