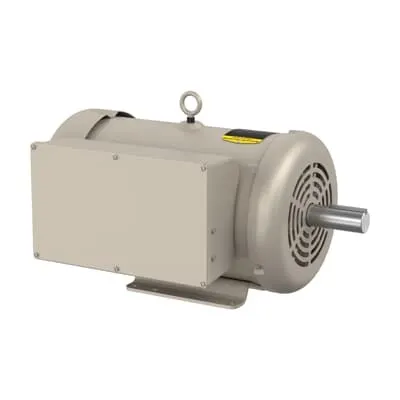

ABB 7BFDL3737TM Farm Duty Motor - CSA/UR Listed TEFC
Part Number: 7BFDL3737TM
Quick Summary
ABB 7BFDL3737TM Farm Duty Motor is a compact, reliable 10 HP, single‑phase solution designed for rugged agricultural applications such as irrigation pumps, grain conveyors, and processing lines. It delivers robust start‑up and steady operation at 230 V and 60 Hz, with a frame size of 215T and a TEFC enclosure to keep dust and moisture out. This motor is engineered for continuous farm duty while minimizing maintenance with regreasable bearings and a durable insulation class. It carries CSA and UR certifications and aligns with NEMA design principles, offering confident regulatory compliance. Stocked at multiple warehouses with zero lead time reduces procurement cycles, helping you meet production schedules and lower total cost of ownership.
Product Information
Extended Description
7BFDL3737TM ABB: Farm Duty Motor 10 Hp 230 V (FDL3737TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1730RPM,1PH,60HZ,215T,3752LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDL3737TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYN370: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
FDL3737TM
Gross Volume
7561.383 in³
Gross Weight
172 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,1730RPM,1PH,60HZ,215T,3752LC,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (FDL3737TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
96 %
Product Name
Farm Duty
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
172 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
39 A
Rated Efficiency
86.50 %
Rated Speed
1730 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
H
Voltage Rating
230 V
Feature: 10 HP, 1730 r/min, 215T frame, 1‑phase, 230 V, 60 Hz. Business Impact: Provides exact power alignment for farm loads with efficient performance and compatibility with common rural electrical infrastructure. Application: Irrigation pumps, belt conveyors, and small processing lines benefit from predictable startup and steady torque. Feature: TEFC enclosure. Business Impact: Protects interior components from dust, moisture, and agricultural debris, extending motor service life in harsh environments. Application: Barns, greenhouses, and outdoor equipment subject to cleaning cycles. Feature: Regreasable bearings. Business Impact: Reduced maintenance intervals and lower lifecycle costs, improving uptime. Application: Long-running feed and grain handling systems where reliability is critical. Feature: 60 Minute duty rating (continuous). Business Impact: Handles intermittent overloads without overheating, improving process stability. Application: Harvesting lines and crop processing where short peak loads occur. Feature: Synchronous speed 1800 r/min (4P) vs rated speed 1730 r/min; PF 0.96; Insulation Class F. Business Impact: Consistent speed control, high power factor, and insulation suited for moderate ambient temperatures; reduces energy waste and overheat risk. Application: Agricultural machinery with belt drives and conveyors. Feature: Stock availability and quick lead time. Business Impact: Fast procurement enables tighter project timelines and less downtime due to part delays. Application: New installs and retrofits across farms and processing facilities. Industry context: The motor’ s 230 V, single‑phase design aligns with common farm power layouts, while the 215T frame and 1P configuration support straightforward retrofits and compatibility with existing equipment inventories.
