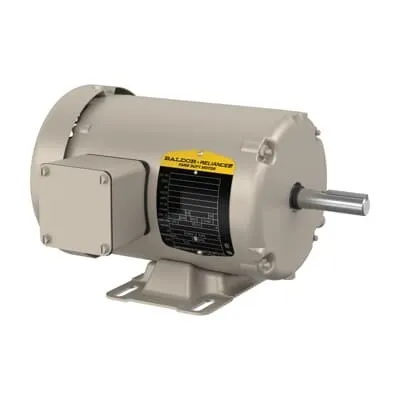

ABB FDM3538 Farm Duty Motor - 3-Phase TEFC 208-230/460V
Part Number: 7BFDM3538
Quick Summary
Farm Duty Motor reliably drives small machinery in agricultural and light industrial settings, delivering dependable 0.5 HP at 208 V. For OEMs and maintenance teams, uptime is critical, and this design reduces unplanned downtime through rugged construction and proven performance. The motor carries CSA and UR certifications and a NEMA design B rating, paired with a robust TEFC enclosure that stands up to dusty, damp environments. With 3-phase, 60 Hz operation and a compact frame, it integrates smoothly into existing equipment while delivering consistent speed and torque. Stocked at multiple warehouses enhances supply chain resilience, enabling faster project timelines and lower total cost of ownership.
Product Information
Extended Description
7BFDM3538 ABB: Farm Duty Motor 0.5 Hp 208 V (FDM3538)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1725RPM,3PH,60HZ,56,3416M,TEFC
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FDM3538
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYM734: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
FDM3538
Gross Volume
2110.969 in³
Gross Weight
24 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
B
Invoice Description
.5HP,1725RPM,3PH,60HZ,56,3416M,TEFC,F1,N
Made To Order
No
Medium Description
Farm Duty, 0.5 HP, 1800 RPM, Frame Size 56, Standard Mounting, 3 Phase, TEFC Enclosure, 208-230/460 V, 60 Hz (FDM3538)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
63 %
Product Name
Farm Duty
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
24 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.9 A | 2 A | 1 A
Rated Efficiency
74 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56, Standard, 3 PH, TEFC, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application: This motor delivers 0.5 HP at 1725 rpm with a 56 frame size and 3-phase 60 Hz input, enabling compact drives and precise speed control for conveyors, pumps, and fans in farm and light industrial settings. Business impact: predictable performance and easy OEM integration reduce design cycles and inventory complexity. Application: small agricultural conveyors and ventilation fans where consistent torque matters. Feature → Business Impact → Application: TEFC enclosure and steel frame protect internals from dust, moisture, and impact, extending service intervals and lowering maintenance costs in harsh barns and outdoor environments. Application: agricultural sorting lines, grain handling equipment, and dust-prone environments. Feature → Business Impact → Application: NEMA design B and 0.63 in shaft diameter provide compatibility with common mounting accessories and standard coupling options, simplifying installation and replacement. Application: retrofits and new machine builds using standard components. Feature → Business Impact → Application: Direct On Line starting and 3-phase configuration simplify wiring and start-up, reducing control panel complexity and enabling quick commissioning. Application: remote sites and OEM builds needing straightforward startup. Feature → Business Impact → Application: rated efficiency of 74% and a 63% power factor drive energy costs down and improve electrical system performance, especially on longer duty cycles. Application: pumps and fans with continuous operation requirements. Feature → Business Impact → Application: stock availability across multiple warehouses (EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU) shortens lead times, enabling just-in-time procurement. Application: project-based integrations and spare-part management for agricultural facilities.
Get a Quick Quote for a ABB 7BFDM3538
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFDM3538?
Enquire Now
FAQs
Yes. The FDM3538 is rated for 208 V, 230 V, and 460 V three-phase power, with a 56 frame, foot-mounted configuration and horizontal F1 mounting. It supports direct connection to typical 3-phase VFDs or direct-on-line starts, simplifying integration into conveyors, pumps, or fans.
Key specs include 0.5 HP output, 1725 rpm nominal speed, 60 Hz operation, rated current around 1.9–2 A, and a rated efficiency of 74% with a power factor of 63%. These metrics translate to predictable performance and manageable running costs in continuous-duty farm applications.
Best suited for conveyors, fans, and small pumps in agricultural settings and light industrial equipment requiring reliable single-speed operation, TEFC protection, and a compact footprint. The NEMA design B and 40 °C ambient tolerance support rugged farm environments.
The motor carries CSA and UR certification marks and adheres to NEMA design standards, with a TEFC enclosure suitable for dusty and moist environments typical of agricultural facilities.
Warranty terms require product returns if applicable, and stock is available across multiple warehouses, reducing lead times and downtime. This translates to faster project delivery, easier stocking, and lower total cost of ownership.
