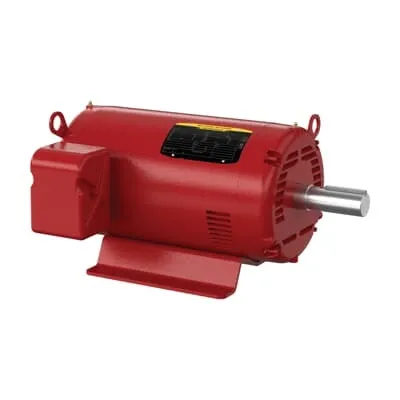

ABB 7BFPM2514T Pump Motor - 190V IE2 Energy Efficiency
Part Number: 7BFPM2514T
Quick Summary
ABB 7BFPM2514T Pump Motor is a 3‑phase, 15 HP drive designed for fire pump duty in commercial and industrial settings. It helps engineers reduce downtime and protect critical infrastructure by offering robust start‑up performance and reliable operation even under demanding loads. The model carries CSA, UL, CSA EEV, and UR certifications, reinforcing compliance with US and international codes, and it meets IE2 energy efficiency targets for energy‑intensive systems. With a standard OPSB enclosure, a 254T frame, and a footprint suitable for horizontal, foot‑mounted installation, it supports fast integration into existing motor bays. Stocked at multiple warehouses with 0‑day lead times, this motor delivers predictable delivery and lower total cost of ownership through longer service life and easier maintenance.
Product Information
Extended Description
7BFPM2514T ABB: Pump Motor 15 Hp 190 V (FPM2514T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20//15HP,3460//2900RPM,3PH,60//50HZ
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FPM2514T
Certification Agency
CSA | CSA EEV | UL | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYN756: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11) | IE2
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
254
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
FPM2514T
Gross Volume
7561.383 in³
Gross Weight
145 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
20//15HP,3460//2900RPM,3PH,60//50HZ,254T
Made To Order
No
Medium Description
Fire Pump, 20//15 HP, Frame Size 254T, Standard Mounting, 3 Phase, OPSB Enclosure, (FPM2514T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp | 20 Hp
Power Factor
90 %
Product Name
Fire Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
145 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
21 A
Rated Efficiency
90.20 %
Rated Speed
2860 r/min | 3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
20//15 HP, Frame Size 254T, Standard, 3 PH, OPSB,
Standards
NEMA
Starting of Motor
Y-Start/Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
190 V | 230 V | 380 V | 460 V
Feature: 15 HP output with a 190 V rating and 3‑phase supply. Business Impact: Delivers strong torque for fire pump duty while supporting energy efficiency targets. Application: Ideal for fire protection systems operating at 50/60 Hz with reliable start‑up and continuous operation. Feature: IE2 energy efficiency alongside a low overall operating energy profile. Business Impact: Reduces energy consumption and operating costs over the motor’s life. Application: Suitable for facilities striving for green compliance and lower utility bills. Feature: OPSB enclosure and 254T frame, with foot mounting and horizontal orientation. Business Impact: Simplifies installation, protects internal components, and improves serviceability. Application: Fits standard pump bays and retrofit projects with minimal structural changes. Feature: Robust bearings (6309 Ball) and NDE bearing 6206, plus insulation class F. Business Impact: Extends service life and reduces maintenance downtime while withstanding typical plant environments. Application: Heavy‑duty continuous operations in demanding environments. Feature: Rated speed options (2860 r/min | 3450 r/min), 1.15 service factor, and 0.90 PF. Business Impact: Balances performance with reliability, enabling predictable performance under peak loads. Application: Suitable for continuous duty fire pump applications with tight performance margins. Feature: Certifications and standards (CSA, CSA EEV, UL, UR, NEMA). Business Impact: Ensures compliance with critical safety and regulatory requirements, facilitating code approvals. Application: Global integration with confidence in cross‑border procurement. Feature: Stocking and lead times (0 day lead time, multiple warehouse locations). Business Impact: Shortens procurement cycles and reduces project downtime. Application: Industrial projects requiring rapid deployment and consistent supply.
Get a Quick Quote for a ABB 7BFPM2514T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFPM2514T?
Enquire Now
FAQs
Yes. The 7BFPM2514T uses a 254T frame and standard drive end flange, with foot mounting and horizontal orientation, making it compatible with common fire pump assemblies and replacement motors. It supports 190 V operation and 50/60 Hz service, enabling straightforward integration into existing mechanical systems and controller interfaces.
This motor delivers 15 HP (with 20 HP peak rating), 190 V nominal, 3‑phase supply, and a power factor around 0.90. It carries IE2 efficiency class, a 1.15 service factor, and rated speeds of 2860 r/min and 3450 r/min depending on frequency. Insulation is class F, suitable for continuous duty in demanding environments.
Yes, the 7BFPM2514T is rated for 50 Hz and 60 Hz operation. Typical rated speeds are 2860 r/min at one frequency and 3450 r/min at the other, with a synchronous speed of 3600 r/min. This makes it adaptable for regional power standards while maintaining reliable fire-pump performance.
The motor carries CSA, CSA EEV, UL, and UR certifications, along with NEMA standards. These approvals support safe integration into mainstream building codes and ensure compatibility with US and international regulatory environments for critical pump applications.
The FPM2514T is stocked across multiple warehouses with 0‑day lead times, reducing procurement downtime. Warranty terms follow standard ABB protection, with a return policy stating that warranty returns are evaluated under the program. For project planning, this translates to shorter wait times and improved return-on-investment.
