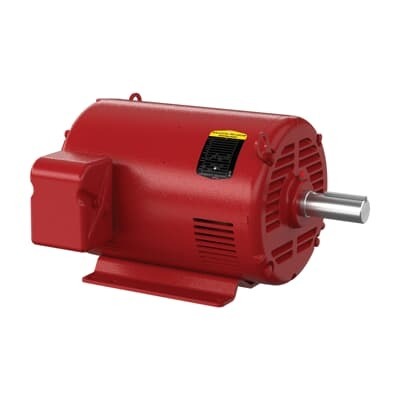

ABB 7BFPM2516T Pump Motor - UL/CSA Certified 3P
Part Number: 7BFPM2516T
Quick Summary
7BFPM2516T pump motor from ABB is a high-efficiency, three-phase drive for fire pumps and industrial water systems. When replacing aging motors or retrofitting new equipment, matching voltage, enclosure, and mounting footprint can cause project delays. This design carries CSA, UL, CSA EEV, and UR certifications, plus an F insulation class and NEMA Design Code B, ensuring regulatory compliance and reliable performance. With a 256T frame, foot-mounted configuration, and availability across multiple warehouses, it supports quick procurement and streamlined installation, delivering tangible business value in both new builds and upgrades.
Product Information
Extended Description
7BFPM2516T ABB: Pump Motor 20 Hp 190 V (FPM2516T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25//20HP,3515//2920RPM,3PH,60//50HZ
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FPM2516T
Certification Agency
CSA | CSA EEV | UL | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
39LYD101: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11) | Not Regulated / Exempt
Electrical Data
Enclosure Type
ODP
Frame Material
Steel
Frame Size
256
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
FPM2516T
Gross Volume
9651.933 in³
Gross Weight
95.254 kg
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
25//20HP,3515//2920RPM,3PH,60//50HZ,256T
Made To Order
No
Medium Description
Fire Pump, 25//20 HP, Frame Size 256T, Standard Mounting, 3 Phase, ODP Enclosure, (FPM2516T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp | 25 Hp
Power Factor
88 %
Product Name
Fire Pump
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
95.254 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
28 A
Rated Efficiency
91 %
Rated Speed
2920 r/min | 3515 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
25//20 HP, Frame Size 256T, Standard, 3 PH, ODP,
Standards
NEMA
Starting of Motor
Y-Start/Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
190 V | 230 V | 380 V | 460 V
Feature → Business Impact → Application: Energy-efficient operation at 91% efficiency reduces energy consumption and operating costs for continuous-duty pump applications, helping facilities lower total cost of ownership while maintaining reliable fire pump and process cooling performance. Application-wise, this supports long-running water systems in industrial settings and critical process loops where uptime matters. Feature → Business Impact → Application: Wide voltage rating (190 V to 460 V) and 50/60 Hz compatibility enable global sourcing and easier installation across international sites, reducing spare-part complexity and procurement lead times. Application: ideal for multinational facilities and retrofit projects needing flexible power delivery. Feature → Business Impact → Application: Robust 256T frame, ODP enclosure, foot-mounted design, and 6309 ball bearings simplify mounting and reduce maintenance downtime, delivering faster installation and higher reliability in demanding environments. Application: fire pumps and cooling water systems in harsh industrial spaces. Feature → Business Impact → Application: 0-day lead time with stock at multiple warehouses accelerates project timelines and minimizes downtime for critical systems, improving uptime metrics and service levels. Application: emergency replacements and capital projects requiring rapid deployment. Feature → Business Impact → Application: Certifications (CSA, UL, CSA EEV, UR) together with insulation class F and NEMA B design ensure regulatory compliance and durable operation in regulated facilities, supporting long-term asset integrity and safer operation. Application: regulated facilities, life-safety systems, and environments with stringent standards.
Get a Quick Quote for a ABB 7BFPM2516T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFPM2516T?
Enquire Now
FAQs
The 7BFPM2516T is a 3-phase pump motor with a 256T frame and foot-mounted configuration designed for fire pumps and industrial water systems. It supports 190–460 V operation at 50/60 Hz and aligns with NEMA design practices (Design Code B) for straightforward retrofits and new builds. Ideal forReplacing aging motors with minimal enclosure modification and standard baseplates, reducing installation time.
Key specs include 20–25 HP output, rated current around 28 A, speeds of 2920 r/min and 3515 r/min, and a synchronous speed of 3600 r/min. Efficiency is about 91%, with a 40 °C ambient rating and an insulation class F. These features support reliable, continuous-duty operation typical of fire pump duty cycles.
Yes. The motor features a broad voltage rating (190 V to 460 V) and accommodates both 50 Hz and 60 Hz operation, enabling global deployment. The 256T frame and standard mounting simplify cross-border procurement and installation, while certifications help meet local compliance requirements.
The motor carries CSA, UL, CSA EEV, and UR certifications, ensuring broad regulatory acceptance. It also uses an ODP enclosure, insulation class F, and a NEMA Design Code B, which supports safe and durable operation in regulated environments such as life-safety and critical process systems.
With 6309 ball bearings and a robust steel frame, maintenance intervals are predictable and downtime is minimized. The high efficiency (≈91%) reduces energy costs, while 0-day lead times and multi-warehouse stock cut procurement risk, leading to faster project completion and improved uptime for fire pumps and process cooling applications.
