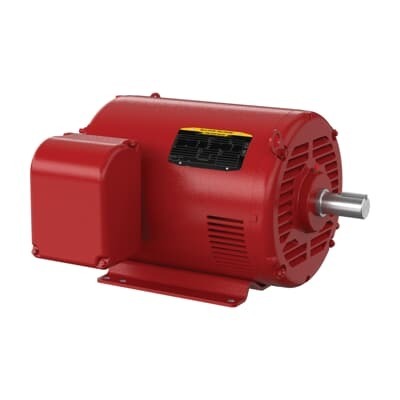

ABB 7BFPM2535TS-5 Pump Motor - UL CSA Certified
Part Number: 7BFPM2535TS-5
Quick Summary
Pump motor 7BFPM2535TS-5 by ABB provides 30 HP performance for fire pump systems. This high-efficiency unit is designed to minimize downtime and energy use in demanding 575 V service. It carries safety and compliance with CSA and UL listings, plus NEMA design B and ODP enclosure for rugged industrial environments. Stocked across multiple warehouses, it supports fast fulfillment and easy installation, aligning with 286TS frame compatibility for a seamless retrofit or new-build.
Product Information
Extended Description
7BFPM2535TS-5 ABB: Pump Motor 30 Hp 575 V (FPM2535TS-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1770RPM,3PH,60HZ,286TS,4052M,O
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FPM2535TS-5
Certification Agency
CSA EEV | UL
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
40LYG049: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11)
Electrical Data
Enclosure Type
ODP
Frame Material
Steel
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
FPM2535TS-5
Gross Volume
14448.906 in³
Gross Weight
420 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
30HP,1770RPM,3PH,60HZ,286TS,4052M,ODP,F1
Made To Order
No
Medium Description
Fire Pump, 30 HP, Frame Size 286Ts, Standard Mounting, 3 Phase, ODP Enclosure, (FPM2535TS-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
84 %
Product Name
Fire Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
420 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
29 A
Rated Efficiency
92.40 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
30 HP, Frame Size 286Ts, Standard, 3 PH, ODP,
Standards
NEMA
Starting of Motor
Y-Start/Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
575 V
Feature: 30 HP output at 575 V with 3-phase power. Business Impact: Delivers strong torque and reliable operation for continuous duty fire pump and water-handling tasks, reducing energy waste and operational risk. Application: Ideal for municipal water systems and emergency fire-pump applications where uptime is critical. Feature: 286TS frame with foot-mounted base. Business Impact: Simplifies on-site mounting and vibration control, enabling straightforward installation and retrofit without custom adapters. Application: Plant floor installations and existing platforms with standard mounting footprints. Feature: Open Drip Proof (ODP) enclosure and insulation class F. Business Impact: Provides dependable protection in mechanical rooms and outdoor spaces while maintaining thermal performance. Application: Harsh indoor/outdoor environments typical of pump rooms and utility spaces. Feature: Y-Start/Delta Run starting. Business Impact: Reduces inrush, extends motor life, and improves electrical system reliability during startup. Application: Large-diameter pumps and systems requiring smooth start-up sequences. Feature: CSA/UL certification and NEMA design B. Business Impact: Ensures regulatory compliance and safer operation, facilitating procurement and audits. Application: Industrial facilities and OEM projects needing verified safety credentials. Feature: 0 day lead time and stocked at multiple warehouses. Business Impact: Minimizes downtime with immediate availability, accelerating project schedules and ROI. Application: Emergency maintenance planning and just-in-time supply for fire pump fleets.
