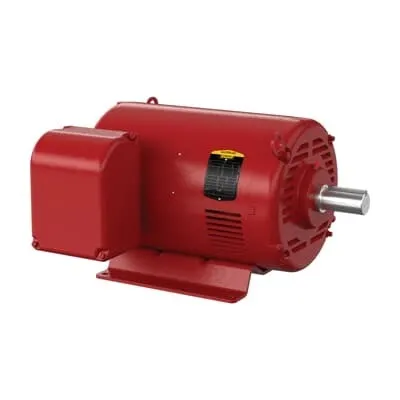

ABB 7BFPM2538T Pump Motor - 40/30HP, 2910/3500RPM CSA UL
Part Number: 7BFPM2538T
Quick Summary
Pump motor from ABB delivers reliable 30/40 HP power for fire pump systems. Engineers often struggle with mismatched voltages, bulky enclosures, and long lead times that derail projects. CSA EEV and UL certifications, a NEMA design B profile, and an Open Drip Proof enclosure ensure safety, performance, and regulatory compliance. With a rugged 286TS frame, 50/60 Hz compatibility, and an efficient 91.7% efficiency, the FPM2538T enables cost-effective installations and predictable maintenance in industrial water-handling scenarios. Stocked at multiple warehouses in the US and abroad minimizes downtime, while a 0-day lead time supports fast deployments. This combination of power, footprint, and availability makes the FPM2538T a dependable choice for fire pumps and other high-demand pump applications.
Product Information
Extended Description
7BFPM2538T ABB: Pump Motor 30 Hp 190 V (FPM2538T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40//30HP,3500//2910RPM,3PH,60//50HZ
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FPM2538T
Certification Agency
CSA EEV | UL
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
39LYL035: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11) | Not Regulated / Exempt
Electrical Data
Enclosure Type
ODP
Frame Material
Steel
Frame Size
286
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
FPM2538T
Gross Volume
16254 in³
Gross Weight
127.913 kg
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
40//30HP,3500//2910RPM,3PH,60//50HZ,286T
Made To Order
No
Medium Description
Fire Pump, 40//30 HP, Frame Size 286Ts, Standard Mounting, 3 Phase, ODP Enclosure, (FPM2538T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp | 40 Hp
Power Factor
91 %
Product Name
Fire Pump
Product Net Depth / Length
31.5 in
Product Net Height
21.5 in
Product Net Weight
127.913 kg
Product Net Width
24 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
42 A
Rated Efficiency
91.70 %
Rated Speed
2910 r/min | 3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
40//30 HP, Frame Size 286Ts, Standard, 3 PH, ODP,
Standards
NEMA
Starting of Motor
Y-Start/Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3000 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
190 V | 230 V | 380 V | 460 V
Wide voltage and frequency range (190 V to 460 V; 50 Hz to 60 Hz) enables global compatibility, reducing spare part inventories and simplifying compliant sourcing for multi-site projects. The business impact is clear: faster procurement, fewer stockouts, and consistent performance across regional grids, making it ideal for fire pumps and large-volume water-handling systems. The 3-phase design, 30/40 HP output, and high efficiency (91.7%) translate to lower energy costs and improved overall equipment effectiveness (OEE) in continuous duty. The 286TS frame, foot-mounted orientation, and horizontal mounting simplify installation and retrofit, cutting commissioning time and minimizing structural modifications on site. An Open Drip Proof enclosure paired with a steel frame enhances durability in demanding environments, reducing maintenance intervals and extending motor life. Certifications (CSA UL) add regulatory confidence for critical infrastructure projects.
Get a Quick Quote for a ABB 7BFPM2538T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFPM2538T?
Enquire Now
FAQs
Yes. This motor is rated for 190 V through 460 V and supports 50/60 Hz, 3-phase service. It is designed for foot-mounted, horizontal installation with a standard 286TS frame and Y-Start/Delta Run starting. When wiring, ensure the drive and cables match the voltage and frequency configuration for your region.
Key specs include 30/40 HP output, 2910 r/min / 3500 r/min speeds, 42 A rated current, PF ≈ 0.91, and efficiency ≈ 91.7%. Frame 286TS, enclosure ODP, insulation class F, and NEMA design B. These figures support reliable fire-pump operation and energy-efficient performance in continuous-duty applications.
Yes. The product is designed for fire pump use with a Fire Pump description, standard mounting, and an Open Drip Proof enclosure. Its 3-phase, 50/60 Hz operation, robust frame, and regulatory certifications (CSA UL) meet typical fire-protection and water-handling requirements in industrial facilities.
The motor carries CSA EEV and UL certifications, with a NEMA design B configuration. This combination provides regulatory confidence for safety and performance in critical infrastructure projects, simplifying procurement and approval processes for utilities, facilities, and OEMs.
With a solid steel frame, ball bearing support (6311), and a 40 °C ambient rating, the motor is built for reliability, reducing unplanned downtime. Lead times are effectively 0 days and stock is widely available, enabling faster project deployment and favorable total cost of ownership through predictable maintenance cycles and energy efficiency.
