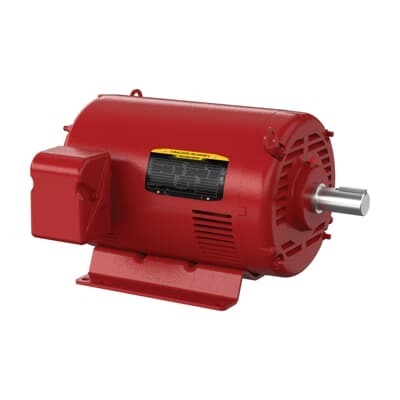

ABB 7BFPM2538T-5 Pump Motor - CSA EEV UL Certification
Part Number: 7BFPM2538T-5
Quick Summary
Pump motor 40 HP 575 V ABB 7BFPM2538T-5 delivers reliable, long-life operation for fire pump and similar duty applications. Engineers often face sourcing gaps, long lead times, and mounting or enclosure mismatches when selecting high-power motors. This model addresses those challenges with immediate availability from multiple warehouses and an industry-standard footprint. It carries two critical certifications—CSA EEV and UL—alongside a robust NEMA design code, energy efficiency alignment, and standard mounting that reduces integration risk. With ODP enclosure, 3-phase 60 Hz operation, and a 286TS frame, this motor delivers predictable performance, system compatibility, and total-cost-of-ownership advantages for critical pumping and HVAC systems.
Product Information
Extended Description
7BFPM2538T-5 ABB: Pump Motor 40 Hp 575 V (FPM2538T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,3500RPM,3PH,60HZ,286TS,3954M,O
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FPM2538T-5
Certification Agency
CSA EEV | UL
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
39LYR082: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11)
Electrical Data
Enclosure Type
ODP
Frame Material
Steel
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
FPM2538T-5
Gross Volume
14448.906 inÂł
Gross Weight
130.181 kg
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
40HP,3500RPM,3PH,60HZ,286TS,3954M,ODP,F1
Made To Order
No
Medium Description
Fire Pump, 40 HP, Frame Size 286Ts, Standard Mounting, 3 Phase, ODP Enclosure, (FPM2538T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
91 %
Product Name
Fire Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
130.181 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
36 A
Rated Efficiency
91.70 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
40 HP, Frame Size 286Ts, Standard, 3 PH, ODP,
Standards
NEMA
Starting of Motor
Y-Start/Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
575 V
Feature: 40 HP output at 3500 r/min and 575 V 3-phase input. Business Impact: Delivers high starting torque with strong continuous-duty capability, supporting reliable pump performance at variable loads. Application: Fire pump and water supply systems where quick response and consistent speed are required. Long-tail keywords: 40 HP pump motor, 575 V 3-phase motor. Feature: Foot-mounted, horizontal mounting with standard face-to-face dimensions (Frame 286TS, Mounting Position F1). Business Impact: Simplifies installation, reduces commissioning time, and enables flexible retrofits in existing basements or mechanical rooms. Application: Industrial pump installations and retrofit projects. Long-tail keywords: 286TS frame, foot-mounted motor. Feature: ODP enclosure and Steel frame construction. Business Impact: Robust environmental tolerance and straightforward cooling path, lowering maintenance cycles and extending service life. Application: Harsh facility environments and outdoor pump stations. Long-tail keywords: ODP enclosure, steel frame. Feature: Insulation Class F and Energy Efficiency Level aligned with modern standards. Business Impact: Improves energy performance, reduces life-cycle energy costs, and supports regulatory compliance. Application: Continuous-duty pump motors in regulated facilities. Long-tail keywords: energy-efficient motor, NEMA design code B. Feature: Rated Current 36 A and 60 Hz operation. Business Impact: Predictable electrical loading, easier switchgear coordination, and optimized protection strategies. Application: Plant electrical systems designed around 575 V distribution. Long-tail keywords: 575 V motor, 60 Hz motor. Feature: Starting options Y-Start/Delta Run. Business Impact: Flexible starting sequence to minimize inrush and mechanical stress, protecting pumps and drives. Application: Variable-speed drive integration and controlled pump startup. Long-tail keywords: Y-Start Delta Run, motor starting method. Feature: Certified origin and quick-stock availability (US, China, multiple warehouses). Business Impact: Reduces procurement risk, shortens lead times, and supports global supply chains for critical infrastructure projects. Application: Global projects needing rapid fulfillment. Long-tail keywords: CSA EEV UL certification, stock at warehouses.
Get a Quick Quote for a ABB 7BFPM2538T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFPM2538T-5?
Enquire Now
FAQs
Yes. The 7BFPM2538T-5 uses a 286TS frame and foot-mounted design with horizontal mounting orientation (F1). This simplifies retrofit projects and aligns with common pump and gear configurations, reducing custom fabrication and enabling faster commissioning. Verify bolt-hole alignment and shaft compatibility with your existing coupling to ensure a seamless install.
Key specs include 40 HP output, 575 V voltage rating, 3-phase power, 60 Hz frequency, rated current 36 A, and starting method Y-Start/Delta Run. The motor is designed for continuous duty with a 1.15 service factor and a 3600 r/min synchronous speed, which supports stable pump operation and efficient energy use in fire pump and water-handling applications.
This motor is optimized for fire pump duty, water treatment, and HVAC pump systems requiring reliable, code-compliant performance. Its ODP enclosure and 286TS frame fit standard industrial pump housings, while the 40 HP rating and 60 Hz operation suit most municipal and industrial water systems. It is particularly well-suited for facilities prioritizing energy efficiency and regulatory compliance.
The 7BFPM2538T-5 carries CSA EEV and UL certifications, signaling rigorous safety and performance validation. This helps meet strict utility and building codes, reduces risk during audits, and supports procurement decisions for regulated facilities like hospitals, data centers, and fire-protection systems.
With a robust steel frame, F insulation class, and standard bearings (6311 ball), the motor offers extended service life and lower maintenance overhead. The energy-efficient design, combined with fast lead times and multiple stocked warehouses, translates to reduced downtime, lower total cost of ownership, and faster return on investment for essential pumping applications.
