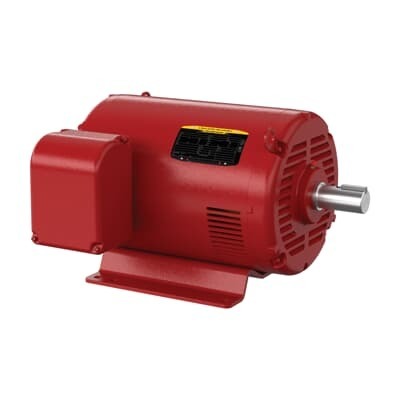

ABB 7BFPM2546T-5 Pump Motor - CSA EEV UL 575V
Part Number: 7BFPM2546T-5
Quick Summary
Pump motor ABB 7BFPM2546T-5 delivers 60 HP at 575 V for fire pump systems. In critical facilities, downtime or motor overload can trigger costly outages. Certified CSA EEV and UL safety standards, with NEMA design compliance and 60 Hz operation. Ideal for industrial motors and fire pump installations, this unit features an ODP enclosure and energy-efficient design to lower lifecycle costs. Its foot-mounted base, and reliable 60 Hz compatibility simplify installation, reduce commissioning time, and support warehouse stocking. With a robust 1.15 service factor and 89% power factor, operators gain predictable performance under continuous duty. This model ships from multiple stocked warehouses, enabling rapid fulfillment and reduced lead times. In applications requiring CSA EEV/UL certified protection, the FPM2546T-5 delivers reliable operation and simplified compliance reporting.
Product Information
Extended Description
7BFPM2546T-5 ABB: Pump Motor 60 Hp 575 V (FPM2546T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,3520RPM,3PH,60HZ,326TS,4062M,O
Ambient Temperature
40 °C
Bearing
6312, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FPM2546T-5
Certification Agency
CSA EEV | UL
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
40LYH007: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11)
Electrical Data
Enclosure Type
ODP
Frame Material
Steel
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
FPM2546T-5
Gross Volume
14448.906 in³
Gross Weight
449 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
60HP,3520RPM,3PH,60HZ,326TS,4062M,ODP,F1
Made To Order
No
Medium Description
Fire Pump, 60 HP, Frame Size 326Ts, Standard Mounting, 3 Phase, ODP Enclosure, (FPM2546T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
89 %
Product Name
Fire Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
449 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
54 A
Rated Efficiency
93 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
60 HP, Frame Size 326Ts, Standard, 3 PH, ODP,
Standards
NEMA
Starting of Motor
Y-Start/Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
575 V
Feature: 60 HP output at 575 V in a rugged 326TS frame. Business Impact: High starting torque and ample headroom reduce restart delays and thermal stress during peak loads in fire pumps and other high-demand pumping applications. Application: Ideal for fire pump systems and municipal water projects where reliable acceleration is critical. Feature: ODP enclosure with standard foot mounting and steel frame. Business Impact: Open drip-proof protection lowers enclosure costs, simplifies cooling and maintenance, and supports quicker serviceability. Application: Fits 326TS, foot-mounted installations in moderate-temperature sites, with a 40 °C ambient tolerance. Feature: 3-phase, 60 Hz operation with Y-Start/Delta Run starting. Business Impact: Smooth inrush control reduces electrical stress and extends motor life, ensuring stable operation in critical duty. Application: Compatible with 575 V distribution networks used in industrial facilities and fire-protection systems. Feature: Efficiency 93% and Power Factor 89%, plus insulation class F and rated speed 3520 r/min. Business Impact: Lower energy costs, reduced heat generation, and improved system reliability, especially in long-running pump duty. Application: Suitable for continuous-duty pumping in wastewater, building services, and fire-protection loops. Feature: 326TS frame, 1.88 inch shaft diameter, 54 A rated current, and 1.15 service factor. Business Impact: Robust mechanical design and predictable performance under variable loads; minimal shaft wear and easier drive matching. Application: Ideal for equipment upgrades and spare-parts compatibility in plant motor libraries. Feature: Stocking and logistics with multiple warehouses (EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU) and 0-day lead time. Business Impact: Fast procurement, shorter downtime, and improved project scheduling. Application: Global availability supporting US, Europe, and Asia-Pacific operations.
Get a Quick Quote for a ABB 7BFPM2546T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFPM2546T-5?
Enquire Now
FAQs
For installation, use the foot-mounted base on the 326TS frame with the open-drip protection (ODP) enclosure. The motor supports 575 V, 3-phase, 60 Hz operation and Y-Start/Delta Run starting, which minimizes inrush. Ensure ambient temperature remains near or below 40 °C and reference the Dimension Sheet 40LYH007 for mounting and clearance. Stocked in multiple warehouses to support rapid fulfillment.
Key specs include 60 HP output at 575 V, 3-phase, 60 Hz, with a rated current of 54 A. The motor achieves about 93% efficiency and a 89% power factor, and uses a 1.15 service factor. Starting is Y-Start/Delta Run, with insulation class F. These ratings support reliable operation in continuous-duty pumping and fire-protection loops.
Yes. The Fire Pump configuration (FPM2546T-5) is designed for fire protection and critical pumping tasks. With a robust 60 HP output, 326TS frame, ODP enclosure, and rigorous CSA EEV/UL certification, it delivers dependable torque during startup and steady operation under load. The 1.15 service factor adds a safety margin for peak demand events.
The unit carries CSA EEV and UL certifications, aligning with safety and electrical compliance standards. NEMA design B, 40 °C ambient tolerance, and 575 V/60 Hz three-phase operation further support regulatory compliance. These certifications facilitate audit readiness and reduce procurement risk for regulated facilities.
Warranty policy notes that products under warranty must be returned if service is required. Lead time is effectively 0 days, with stock available at several warehouses (e.g., EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU), enabling rapid fulfillment and minimizing downtime for urgent fire pump replacements.
