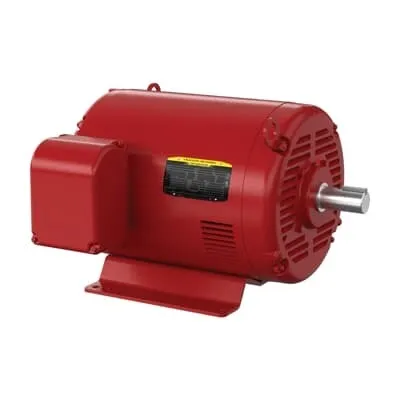

ABB 7BFPM2547TS-5 Pump Motor - ODP Enclosure
Part Number: 7BFPM2547TS-5
Quick Summary
ABB 7BFPM2547TS-5 Pump Motor is a 60 HP, 575 V three-phase unit designed for fire pump applications. When downtime matters, operators need a motor with robust construction, reliable bearings, and quick availability to meet critical maintenance windows. It carries CSA and UL certifications and complies with NEMA design standards, delivering dependable performance at 60 Hz with a synchronous speed of 1800 r/min. The motor’s efficiency (93.60%) and low power factor impact purchasing decisions, but the long-term energy savings are clear. Stocked at multiple US and international warehouses, it supports fast procurement, local service, and streamlined maintenance planning for facility managers and OEMs.
Product Information
Extended Description
7BFPM2547TS-5 ABB: Pump Motor 60 Hp 575 V (FPM2547TS-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1770RPM,3PH,60HZ,364TS,4252M,O
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FPM2547TS-5
Certification Agency
CSA EEV | UL
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
42LYF098: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11)
Electrical Data
Enclosure Type
ODP
Frame Material
Steel
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
FPM2547TS-5
Gross Volume
18748.226 in³
Gross Weight
480 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
60HP,1770RPM,3PH,60HZ,364TS,4252M,ODP,F1
Made To Order
No
Medium Description
Fire Pump, 60 HP, Frame Size 364Ts, Standard Mounting, 3 Phase, ODP Enclosure, (FPM2547TS-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
84 %
Product Name
Fire Pump
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
480 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
57 A
Rated Efficiency
93.60 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
60 HP, Frame Size 364Ts, Standard, 3 PH, ODP,
Standards
NEMA
Starting of Motor
Y-Start/Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
575 V
Feature → Business Impact → Application: The 60 HP, 575 V three-phase configuration with a 364TS frame and ODP enclosure provides solid torque delivery and durable protection in demanding fire pump service, reducing maintenance downtime and boosting system reliability for municipal and industrial water systems. This design translates to lower life-cycle costs and predictable performance during critical pump starts, especially in emergency scenarios. The motor’s efficiency rating of 93.60% and a PF of 0.84 improve overall plant power quality and reduce energy bills, making it suitable for energy-intensive fire suppression networks and utility-scale installations. With Y-Start/Delta Run starting, operators experience smoother inrush control and reduced mechanical stress, extending bearing life and minimizing cross-circuit strain in control panels. Ready-to-ship stock from multiple warehouses ensures rapid replacement for OEMs and service teams, supporting lean maintenance programs. Installation benefits include foot-mounted base, horizontal orientation, and a 1.88 in shaft diameter that aligns with standard coupling and pulley systems in fire-pump installations.
Get a Quick Quote for a ABB 7BFPM2547TS-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFPM2547TS-5?
Enquire Now
FAQs
Yes. The 7BFPM2547TS-5 uses the 364TS frame and ODP (Open Drip Proof) enclosure, which are standard for large-capacity fire pump motors. It is designed for foot-mounted installation and horizontal mounting, ensuring straightforward alignment with common pump couplings and belt drives. Verify mounting dimensions on the Dimension Diagram (42LYF098) for precise fitment in your enclosure.
Key specs include 60 Hz operation, 575 V, three-phase power, 60 HP output, rated current around 57 A, PF about 0.84, and efficiency of 93.60%. Insulation class is F, with a synchronous speed of 1800 r/min and a starting method of Y-Start/Delta Run, suitable for reliable fire-pump starts.
Yes. The motor is explicitly marketed as a Fire Pump unit with frame 364TS, ODP enclosure, 60 HP, and 3-phase operation, making it well-suited for emergency pumping duty in both municipal water systems and industrial facilities.
The motor carries CSA EEV and UL certifications, adheres to NEMA design standards, and meets energy-efficiency criteria suitable for 60 Hz operation. These certifications support compliance with safety and performance requirements in regulated environments.
Lead time is listed as 0 day, with stock at multiple warehouses (US and international), enabling rapid replacement. Warranty terms indicate products under warranty must be returned; local availability supports faster repairs, reduced downtime, and improved total cost of ownership for maintenance teams and OEMs.
