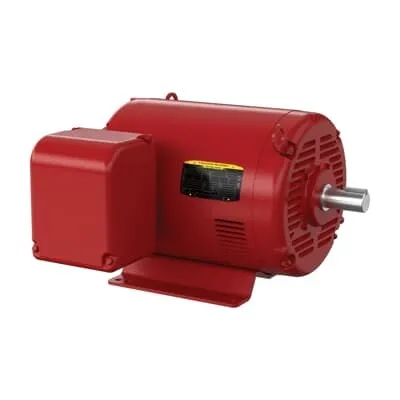

ABB 7BFPM2549T Pump Motor - CSA/UL Certified
Part Number: 7BFPM2549T
Quick Summary
ABB 7BFPM2549T Pump Motor is a robust, three-phase motor designed for fire-pump duty in commercial and industrial facilities. This 60/75 HP unit operates across 190–460 V and is built in a 364TS frame with an OPSB enclosure, enabling reliable performance in demanding environments. It carries CSA EEV and UL certifications, along with a NEMA design code, helping you meet stringent safety and reliability standards. For procurement leaders, this motor reduces downtime and simplifies maintenance planning while delivering measurable energy efficiency and predictable service life for critical pumping applications. Designed for straightforward installation with foot mounting and a Y-Start/Delta Run starting method, it supports both 50 Hz and 60 Hz operation, enhancing compatibility with global supply chains. The combination of a 6313 ball bearing, insulation class F, and OPSB enclosure ensures longevity in ambient conditions up to 40 °C.
Product Information
Extended Description
7BFPM2549T ABB: Pump Motor 60 Hp 190 V (FPM2549T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75//60HP,3535//2940RPM,3PH,60//50HZ
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FPM2549T
Certification Agency
CSA EEV | UL
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
42LYE360: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11) | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
364
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
FPM2549T
Gross Volume
18748.226 in³
Gross Weight
485 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
75//60HP,3535//2940RPM,3PH,60//50HZ,364T
Made To Order
No
Medium Description
Fire Pump, 75//60 HP, Frame Size 364Ts, Standard Mounting, 3 Phase, OPSB Enclosure, (FPM2549T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
60 Hp | 75 Hp
Power Factor
90 %
Product Name
Fire Pump
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
485 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
82 A
Rated Efficiency
93 %
Rated Speed
2940 r/min | 3535 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
75//60 HP, Frame Size 364Ts, Standard, 3 PH, OPSB,
Standards
NEMA
Starting of Motor
Y-Start/Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3000 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
190 V | 230 V | 380 V | 460 V
364TS frame with foot mounting enables easy installation and precise alignment, reducing field labor and equipment costs. This directly improves project timelines for fire pump retrofits and new builds, while ensuring reliable engagement with standard pump couplings. The OPSB enclosure combined with NEMA design supports rugged operation in both indoor and outdoor environments, delivering sustained performance under variable conditions and simplifying installation compliance. The motor’s 190 V to 460 V voltage rating across 50 Hz and 60 Hz supplies offers global applicability, lowering procurement complexity and inventory costs for multi-site projects while maintaining consistent performance. With 60/75 Hp output and a rated current of 82 A, the unit balances horsepower with electrical demand, enabling improved energy management and reduced running costs. The 2930–3535 r/min speed range supports varied load profiles, while a 1.88 in shaft diameter provides robust coupling compatibility and long bearing life. Insulation class F and 6313 ball bearings contribute to extended service life and lower maintenance windows, which translates to decreased downtime and a lower total cost of ownership for fire-protection systems. Industry-standard design features, including Y-Start/Delta Run starting and a 364TS frame, minimize start-up stress on pumps and piping, improving reliability in emergency scenarios. The motor’s 40 °C ambient rating aligns with typical plant environments, allowing predictable performance in hot climates without excessive derating. Overall, the combination of UL/CSA certifications, NEMA compliance, and the OPSB enclosure supports risk mitigation and uptime guarantees essential for critical infrastructure projects, while providing a proven path to compliance and supplier continuity for procurement teams researching 3-phase motor solutions for fire pump and industrial pumping applications.
