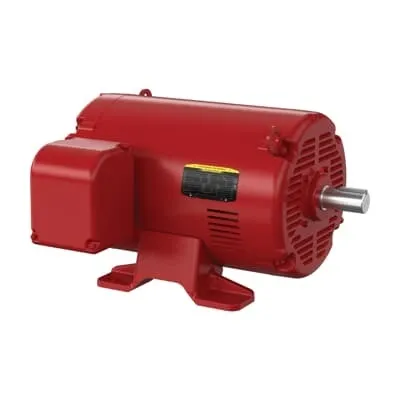

ABB FPM2556T-4 Pump Motor - UL CSA EEV UR Certified
Part Number: 7BFPM2556T-4
Quick Summary
Pump motor FPM2556T-4 from ABB delivers reliable 125 HP performance for fire pump and process duty in demanding facilities. This model is designed to meet fast-start needs and rugged continuous operation in critical systems. Engineers often struggle with finding a compact, code-compliant motor that bridges 380 V supply and a heavy-load pump application without sacrificing efficiency. The unit carries strong certifications including UL, CSA, EEV, and UR approvals, plus NEMA design B and OPSB enclosure for durable, safe operation in challenging environments. With a sturdy steel frame, foot mounting, and standardized dimensions, it installs quickly and scales across multiple sites. The motor's efficiency, power factor, and service factor support reduced operating costs and predictable maintenance over the asset life.
Product Information
Extended Description
7BFPM2556T-4 ABB: Pump Motor 125 Hp 380 V (FPM2556T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
150//125HP,3540//2940RPM,3PH,60//50
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6312
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FPM2556T-4
Certification Agency
CSA | CSA EEV | UL | UR
Country of Origin
United States (US)
Customs Tariff Number
85015381
Dimension Diagram
44LYE020: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11) | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
405
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
FPM2556T-4
Gross Volume
41624.5 in³
Gross Weight
814.999 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
150//125HP,3540//2940RPM,3PH,60//50HZ,40
Made To Order
No
Medium Description
Fire Pump, 150//125 HP, Frame Size 405Ts, Standard Mounting, 3 Phase, OPSB Enclosure, (FPM2556T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
405TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
125 Hp | 150 Hp
Power Factor
92 %
Product Name
Fire Pump
Product Net Depth / Length
41.5 in
Product Net Height
29.5 in
Product Net Weight
814.999 lb
Product Net Width
34 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
165 A
Rated Efficiency
93.60 %
Rated Speed
2940 r/min | 3540 r/min
Replaced Product ID (OLD)
7B44E020W360H2
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.13 in
Short Description
150//125 HP, Frame Size 405Ts, Standard, 3 PH, OPSB,
Standards
NEMA
Starting of Motor
Y-Start/Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
380 V | 460 V
125 HP, 380 V three-phase design delivers high torque start-up and reliable peak performance for fire pump and process duties. This combination reduces start-up current spikes and improves energy usage across duty cycles, translating to fewer disturbances in water handling systems and safer plant operations. OPSB enclosure and insulation class F enable operation in hot environments and with exposure to dust and moisture, reducing cooling costs and extending bearing life for outdoor installations in industrial facilities. The frame size and foot-mounted, horizontal mounting provide quick bolt-in installation and easy retrofits, aligning with existing pump bases and reducing installation risk. A rated efficiency of 93.60% and power factor of 92% improve electrical performance and reduce utility bills under continuous duty, while a service factor of 1.15 offers margin for transient loads. Two rated speeds (2940 and 3540 r/min) and a 2-pole design align with typical pump curves, enabling better control of flow and pressure in fire-protection and water-handling systems. This unit is designed for durability with a steel frame, OPSB enclosure, and industry alignment (NEMA design B, insulation class F), supporting long asset life and predictable maintenance. Industry-ready stock and regional availability help minimize downtime and enable fast deployment across multiple plants without compromising performance.
