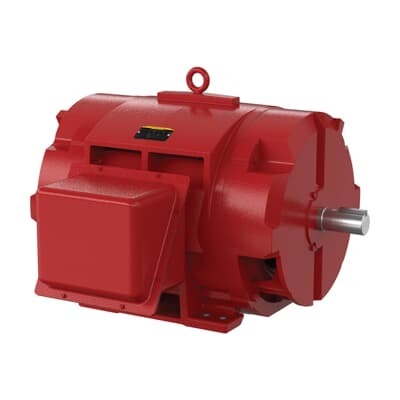

ABB 7BFPM2566TS-4 Pump Motor - UL/CSA/EEV Certified
Part Number: 7BFPM2566TS-4
Quick Summary
The ABB 7BFPM2566TS-4 pump motor is a high-power, 3-phase drive designed for fire-pump and critical water system applications. This model delivers 200–250 HP at 380–460 V with a DP enclosure, Frame 445TS, and Y-Start/Delta Run starting, ensuring smooth integration with standard plant controls. Many users struggle with long lead times and inconsistent stock for essential fire protection equipment; this product is stocked across multiple warehouses in the US and internationally, with 0-day lead times, reducing downtime and procurement risk. Certifications including UL, CSA EEV, and CCSA US confirm safety and compliance for building services and utility projects. In addition to reliability, it aligns with energy-efficiency goals (Rated Efficiency ~95.4%) and standard NEMA design practices, supporting easy maintenance and retrofit planning.
Product Information
Extended Description
7BFPM2566TS-4 ABB: Pump Motor 200 Hp 380 V (FPM2566TS-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
250/200HP,60//50HZ,4PL,3PH,445TS,OP
Ambient Temperature
40 °C
Bearing
65BC03J30X, Ball
Bearing NDE
65BC03J30X
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FPM2566TS-4
Certification Agency
CCSA US | CSA EEV | UL
Country of Origin
United States (US)
Customs Tariff Number
85015381
Dimension Diagram
617428-044: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11) | Not Regulated / Exempt
Electrical Data
Enclosure Type
DP
Frame Material
Iron
Frame Size
445
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
FPM2566TS-4
Gross Volume
105899.063 in³
Gross Weight
836.424 kg
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
250/200HP,60//50HZ,4PL,3PH,445TS,OPEN
Made To Order
No
Medium Description
Fire Pump, 250//200 HP, Frame Size 445Ts, Standard Mounting, 3 Phase, DP Enclosure, (FPM2566TS-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
445TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
200 Hp | 250 Hp
Power Factor
90 %
Product Name
Fire Pump
Product Net Depth / Length
49.5 in
Product Net Height
52.5 in
Product Net Weight
836.424 kg
Product Net Width
40.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
265 A
Rated Efficiency
95.40 %
Rated Speed
1475 r/min | 1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.38 in
Short Description
250//200 HP, Frame Size 445Ts, Standard, 3 PH, DP,
Standards
NEMA
Starting of Motor
Y-Start/Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
380 V | 460 V
Feature: 200–250 HP output with 380–460 V three-phase operation, 445TS frame and DP (drip-proof) enclosure. Business Impact: Delivers robust fire-pump performance with reliable control compatibility and a compact footprint, reducing space requirements in installation areas. Application: Ideal for fire protection water systems and industrial pump skids requiring high reliability and straightforward integration. Feature: Y-Start/Delta Run starting method. Business Impact: Enables smooth soft-start transitions, minimizing electrical stress and extending motor life, which lowers maintenance costs over time. Application: Suitable for retrofit projects in aging plant infrastructure and new fire-pighting installations. Feature: Insulation Class F and Ball bearings (65BC03J30X). Business Impact: Enhances temperature tolerance and bearing durability in demanding environments, boosting uptime. Application: Long-term operation in 40 °C ambient conditions common in utility and industrial facilities. Feature: 445TS frame with Foot Mounted base and Horizontal mounting orientation (F1). Business Impact: Streamlines installation and retrofit into existing equipment racks and basins, reducing commissioning time. Application: Use in existing footprint designs for fire pumps and auxiliary water-handling systems. Feature: Rated Efficiency 95.40% and Service Factor 1.15. Business Impact: Supports energy savings and reliable peak performance under variable loads, lowering total cost of ownership. Application: Energy-conscious plant operations and green building projects. Feature: Stocked At Warehouses with 0-day Lead Time. Business Impact: Eliminates supply chain delays for critical safety equipment, enabling faster project timelines. Application: Procurement for mission-critical fire pump installations and capital projects requiring rapid deployment.
Get a Quick Quote for a ABB 7BFPM2566TS-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFPM2566TS-4?
Enquire Now
FAQs
Yes. The motor is rated for 380 V or 460 V operation at 50/60 Hz, making it suitable for common industrial power distributions. It also supports 3-phase operation for robust pump performance.
It uses a Foot Mounted base with Horizontal mounting (F1) on a 445TS frame, simplifying integration into existing fire-pump and water-pumping skids.
The unit carries UL, CSA EEV, and CCSA US certifications, providing safety and regulatory assurance for electrical and mechanical installations in commercial and industrial facilities.
Primarily designed for fire-pump systems and critical water-handling applications, the 445TS frame and 3-phase DP enclosure support reliable operation in demanding environments.
Stocked at multiple warehouses with 0-day lead times, the motor enables fast procurement, reduced downtime, and easier maintenance planning for mission-critical operations.
