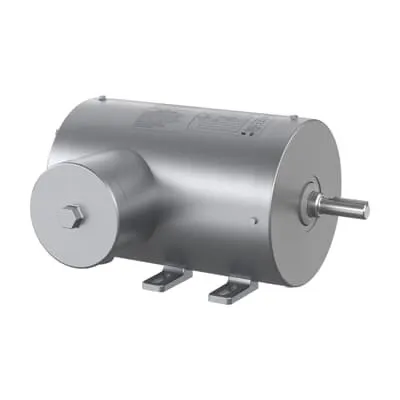

ABB 7BFSWDM3542-E Washdown Motor - CSA Certified
Part Number: 7BFSWDM3542-E
Quick Summary
ABB washdown motor 7BFSWDM3542-E delivers reliable hygiene-ready performance for food and beverage production lines. This 0.75 HP, 3-phase unit operates at 208 V with a compact 56 frame size, engineered for clean-in-place environments. In high-washdown facilities, durability and corrosion resistance are critical—downtime and equipment replacement cost real. The motor features a stainless steel frame and a TENV enclosure to withstand frequent sanitizing cycles, while CSA and UR certifications reinforce compliance for regulated facilities. Additionally, the design aligns with a standard mounting footprint, direct-on-line starting, and a 60 Hz supply, enabling straightforward installation, rapid time-to-value, and predictable maintenance costs for plant operations.
Product Information
Extended Description
7BFSWDM3542-E ABB: Washdown Motor 0.75 Hp 208 V (FSWDM3542-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1765RPM,3PH,60HZ,56,3514M,TEN
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FSWDM3542-E
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
35LYE4927: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
FSWDM3542-E
Gross Volume
3496.049 in³
Gross Weight
37 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
.75HP,1765RPM,3PH,60HZ,56,3514M,TENV,F1
Made To Order
No
Medium Description
Food Safe Washdown, 0.75 HP, 1800 RPM, Frame Size 56, Standard Mounting, 3 Phase, TENV Enclosure, 208-230/460 V, 60 Hz (FSWDM3542-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
70 %
Product Name
Food Safe Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
37 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.6 A | 1.3 A
Rated Efficiency
84 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B35E4927G426G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56, Standard, 3 PH, TENV, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
208 V | 230 V | 460 V
Feature: Stainless steel frame provides superior corrosion resistance in caustic washdowns. → Business Impact: reduces lifetime maintenance costs and downtime. → Application: ideal for food processing and beverage lines where frequent sanitizing is routine. Feature: TENV enclosure protects windings from moisture and rinse water. → Business Impact: extends motor life in humid environments and simplifies cleaning schedules. → Application: conveyors and mixers in wet production zones. Feature: 0.75 HP, 1760 r/min nominal speed with a 1.15 service factor. → Business Impact: consistent process performance with headroom for startups and load variations. → Application: driven conveyors and small processing equipment. Feature: 3-phase, 60 Hz, voltage options 208/230/460 V. → Business Impact: broad electrical compatibility reduces wiring complexity and stocking needs. → Application: integrates with standard US and global plant power distribution. Feature: Foot-mounted, horizontal mounting (Frame 56, F1). → Business Impact: straightforward retrofits and minimal installation time. → Application: robotic cells, packaging lines, and washdown conveyors. Feature: Direct On Line starting and stainless steel shaft bearing 6205. → Business Impact: lowers startup hardware requirements and extends service life in demanding environments. → Application: high-speed washdown conveyors and pneumatic-integrated lines.
Get a Quick Quote for a ABB 7BFSWDM3542-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BFSWDM3542-E?
Enquire Now
FAQs
This motor uses a foot-mounted base with horizontal mounting (Frame 56, F1). It can retrofit standard conveyor platforms with minimal modification, leveraging a common 56 frame footprint and a direct-on-line start for quick commissioning. Plan for cleanable surfaces and sanitized environments to maximize the warranty period and reduce downtime.
The motor is a 3-phase, 60 Hz unit compatible with 208/230/460 V supplies. It draws about 2.6 A at rated load and supports direct-on-line starting. Its 0.75 HP rating and 1.15 service factor provide reliable startup and load tolerance, with insulation class H suitable for demanding environments.
Yes. It is designed as a Food Safe Washdown motor with a stainless steel frame and a TENV enclosure, built to withstand frequent sanitation cycles. Certifications from CSA and UR reinforce regulatory compliance for food processing facilities handling dairy, meat, or beverages.
Key certifications include CSA and UR, ensuring electrical safety and suitability for international markets. The motor also references a NEMA design code B and a 56 frame, with the product aligned to standard food processing hygiene requirements, supporting regulatory and customer acceptance.
The 6205 ball bearings and stainless steel frame provide long life in washdown environments, reducing maintenance intervals. The direct-on-line start minimizes drive hardware needs, simplifying installation and lowering initial capital expenditure while delivering dependable uptime and predictable total cost of ownership.
