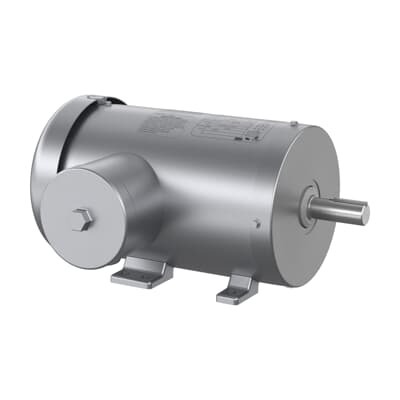

ABB 7BFSWDM3558T-E Washdown Motor - NEMA Premium
Part Number: 7BFSWDM3558T-E
Quick Summary
ABB 7BFSWDM3558T-E is a washdown motor for sanitary, reliable service in food processing. In wet environments, operators contend with corrosion, frequent cleanings, and downtime that disrupt production schedules. This model carries CSA EEV, NEMA Premium efficiency, and UR recognitions to meet strict industry and safety standards, while its 230/460 V, 60 Hz three-phase design integrates with common drive systems. The stainless-steel frame,TEFC enclosure, and 145T footprint support long life in harsh washdown applications. By combining robust construction with high efficiency, it delivers lower operating costs and predictable performance, helping manufacturers reduce maintenance cycles and extend equipment uptime across critical lines.
Product Information
Extended Description
7BFSWDM3558T-E ABB: Washdown Motor 2 Hp 230 V (FSWDM3558T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1765RPM,3PH,60HZ,145T,3528M,TEF
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
FSWDM3558T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE4931: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
FSWDM3558T-E
Gross Volume
3496.049 in³
Gross Weight
50 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
2HP,1765RPM,3PH,60HZ,145T,3528M,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 2 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (FSWDM3558T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
81 %
Product Name
Food Safe Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
50 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.3 A | 2.65 A
Rated Efficiency
86.50 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and stainless-steel frame provide robust washdown resistance. Business Impact: Protects the motor from aggressive cleaners and high-pressure washdowns, reducing corrosion and maintenance needs. Application: Food processing and pharmaceutical lines where sanitation is non-negotiable. Feature: 2 HP output at 1765 rpm and 145T frame with 3-phase 230/460 V supply. Business Impact: Delivers reliable torque in a compact footprint, enabling easier retrofits and space optimization. Application: Conveyor belts, mixers, and pump assemblies in manufacturing floors. Feature: Premium efficiency (NEMA Premium) and 60 Hz operation. Business Impact: Lowers energy consumption and reduces thermal load, extending motor life. Application: Continuous-duty industrial applications with tight energy targets. Feature: TEFC with 6205 sealed bearings and stainless-steel construction. Business Impact: Improves reliability in washdown environments and reduces lubrication needs. Application: High-pressure cleaning cycles and solvent exposure zones. Feature: Ready-to-ship stock with 0-day lead time and non-make-to-order policy. Business Impact: Speeds procurement, minimizes project delays, and lowers inventory risk. Application: Engineering projects and maintenance programs requiring rapid deployment. Industry context: This motor is well-suited for food and beverage processing lines, hygiene-critical packaging, and pharmaceutical equipment where sanitation, durability, and energy efficiency drive total cost of ownership. The combination of frame size, mounting, and mounting orientation supports straightforward installation and serviceability, meaning technicians can perform routine maintenance with minimal downtime.
