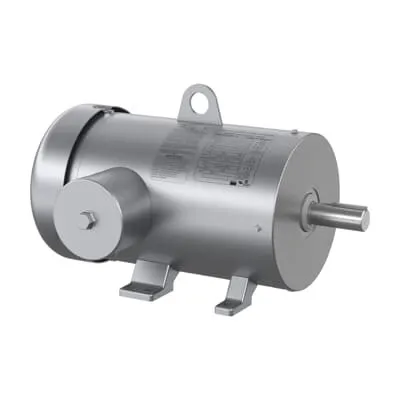

ABB 7BFSWDM3615T-E Washdown Motor - Premium Efficiency
Part Number: 7BFSWDM3615T-E
Quick Summary
ABB 7BFSWDM3615T-E washdown motor delivers 5 HP, 230/460 V three-phase power for food-processing lines requiring sanitary, reliable operation. In washdown environments, sanitation and uptime are critical, and this model minimizes downtime with corrosion-resistant construction and straightforward maintenance. It carries essential certifications—NEMA Premium Efficiency, CSA EEV, and UR listings—to support compliance in North America and global installations. With TEFC enclosure and a stainless steel frame, it withstands CIP cleaning and high-pressure washdowns, while dual voltage and standard mounting ease integration into conveyors and pumps. The result is lower operating costs, extended service life, and predictable performance in demanding industrial settings.
Product Information
Extended Description
7BFSWDM3615T-E ABB: Washdown Motor 5 Hp 230 V (FSWDM3615T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184T,3646M,TEF
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
FSWDM3615T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYR625: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
FSWDM3615T-E
Gross Volume
7192.91 in³
Gross Weight
101 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
5HP,1750RPM,3PH,60HZ,184T,3646M,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (FSWDM3615T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
81 %
Product Name
Food Safe Washdown
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
101 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13 A | 6.5 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: Food-safe washdown design with TEFC enclosure and a stainless steel frame. Business Impact: improved corrosion resistance, easier cleaning, and enhanced sanitation compliance for dairy, meat, and beverage lines. Application: ensures reliable operation during CIP cycles and harsh washdown procedures. Feature: Premium efficiency and NEMA energy labeling. Business Impact: energy savings, reduced heat load, and lower lifecycle costs, improving total cost of ownership. Application: effective on conveyors, pumps, and mixer stations in continuous-duty environments. Feature: Dual voltage 230/460 V and 60 Hz operation. Business Impact: installation flexibility and simplified spare-part planning, enabling quicker integration across varied facilities. Application: multi-site plants with mixed power supplies. Feature: Foot-mounted, horizontal mounting (F1) with frame size 184T and sealed bearing. Business Impact: easy installation and robust mechanical compatibility, reducing retrofit time. Application: retrofit projects and new lines in food & beverage plants. Feature: Direct-on-line starting and 5 HP output with 1750 r/min rating. Business Impact: simplified wiring, minimal starter equipment, and reliable performance under steady loads. Application: conveyors and CIP pumps in sanitation-critical lines. Industry Context: In modern sanitation-sensitive facilities, stainless-steel framing and a TEFC design help minimize maintenance cycles and maximize uptime, while high-rated efficiency supports energy-conscious operations and compliant, long-term performance.
