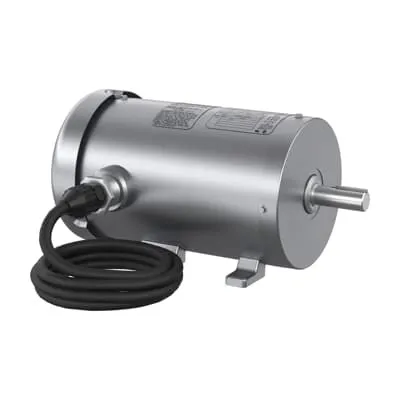

ABB 7BFSWDM3651TP-E Severe Duty Motor - CSA/UR
Part Number: 7BFSWDM3651TP-E
Quick Summary
Severe Duty Motor 7BFSWDM3651TP-E from ABB delivers robust, high-torque drive for demanding industrial applications such as conveyors, pumps, and heavy-duty fans. This 3 HP, 60 Hz motor is built for continuous operation in harsh environments, helping minimize unplanned downtime and maintenance costs. With a TEFC enclosure, stainless-steel frame materials, and a proven 145T frame design, it meets demanding standards while delivering reliable performance. The motor aligns with CSA and UR certifications, plus adherence to NEMA-style design practices, ensuring electrical safety and mechanical reliability. When you need consistent torque and quick on-site installation, this motor offers compatibility with 230/460 V systems and direct-on-line starting, delivering tangible business value.
Product Information
Extended Description
7BFSWDM3651TP-E ABB: Severe Duty Motor 3 Hp 230 V (FSWDM3651TP-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1655RPM,3PH,60HZ,145T,3540M,TEF
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
FSWDM3651TP-E
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
FSWDM3651TP-E
Gross Weight
59 lb
Insulation Class
H
Invoice Description
3HP,1655RPM,3PH,60HZ,145T,3540M,TEFC,F1
Made To Order
No
Medium Description
Severe Duty, 3 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 3 Phase, 230/460 V, 60 Hz (FSWDM3651TP-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
D
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
87 %
Product Name
Severe Duty
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
59 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8 A | 4 A
Rated Efficiency
81 %
Rated Speed
1655 r/min
Replaced Product ID (OLD)
7B35E6057G301G1
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.88 in
Short Description
3 HP, 1800 RPM, Frame Size 145T, Standard, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: Severe Duty rating and 3 HP output provide reliable, high-torque performance in continuous-duty applications. Business Impact: Reduces unplanned downtime and extends component life in harsh environments. Application: Ideal for heavy-duty conveyors and pumps in manufacturing plants, improving line throughput and uptime. Long-tail keywords integrated: 3 HP motor, 60 Hz, continuous-duty motor, heavy-duty drive. Feature: TEFC enclosure enhances protection against dust, moisture, and ingress. Business Impact: Lowers maintenance frequency and extends bearing life in dusty or humid facilities. Application: Suitable for cement, mining, and food processing environments where enclosure integrity matters. Feature: Foot-mounted, 145T frame with standard mounting guarantees straightforward installation and alignment. Business Impact: Faster commissioning and reduced installation costs. Application: Retrofits and new builds requiring quick integration with existing bases and guard layouts. Long-tail keywords: 145T frame, foot-mounted motor, direct-on-line start. Feature: Dual voltage 230 V | 460 V, 3-phase operation supports flexible power sourcing. Business Impact: Inventory efficiency and site adaptability across global facilities. Application: Plants with variable electrical supply or multiple lines across regions. Feature: Sealed 6205 bearings and front-end design ensure durable operation. Business Impact: Lower maintenance cycles and consistent performance under vibration. Application: Heavy process lines with extended duty cycles. Feature: Synchronous speed 1800 r/min and rated speed 1655 r/min provide predictable control and load matching. Business Impact: Improved drive stability and system synchronization for conveyors and fans. Application: Systems requiring precise speed control and timing. This content integrates practical context for industrial buyers exploring 3HP motors, NEMA-compliant solutions, and stainless-steel frame attributes.
