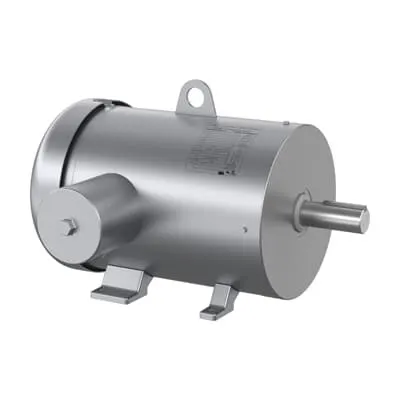

ABB 7BFSWDM3714T-E Motor - Food Safe Washdown
Part Number: 7BFSWDM3714T-E
Quick Summary
ABB 7BFSWDM3714T-E motor is a food-safe washdown drive designed for hygienic environments in beverage and packaged foods. It addresses CIP/SIP cleaning challenges by delivering a corrosion-resistant stainless steel frame and TEFC sealing that withstand high-pressure washdowns. The unit carries CSA, CSA EEV, and UR approvals, along with NEMA design B and Premium Efficiency ratings, ensuring regulatory compliance across North American and global plants. With 60 Hz operation, 230/460 V three-phase service, and a robust 10 HP output, this motor supports reliable throughput while minimizing maintenance costs in continuous-duty lines. The combination of stock availability and easy installation translates to faster project timelines and improved total cost of ownership for food-processing facilities.
Product Information
Extended Description
7BFSWDM3714T-E ABB: Washdown Motor 10 Hp 230 V (FSWDM3714T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215T,3756M,TE
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6307 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
FSWDM3714T-E
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYQ321: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
FSWDM3714T-E
Gross Volume
7561.383 in³
Gross Weight
187 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
10HP,1770RPM,3PH,60HZ,215T,3756M,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (FSWDM3714T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
81 %
Product Name
Food Safe Washdown
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
187 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
92.40 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Food-safe washdown design with a stainless steel frame and TEFC enclosure provides superior corrosion resistance in high-pressure cleaning routines, improving hygiene and reducing replacement costs. The result is longer motor life and lower maintenance, especially in CIP/SIP environments. This 10 HP, 1770 rpm, 60 Hz, 230/460 V three-phase motor offers premium efficiency (92.40%), lowering energy consumption on conveyors and mixers while supporting cooler operating temperatures during continuous operation. Foot-mounted 215T frame with F1 mounting simplifies retrofit or new-installation in existing lines, enabling horizontal alignment and direct-on-line starts, which reduces start-up costs and electrical noise. Stocked at multiple warehouses with 0 day lead time ensures rapid deployment for critical line stops. The motor’s 40 °C ambient rating and 6307 ball bearings further enhance reliability in industrial settings, while keeping spare parts availability straightforward for procurement teams.
