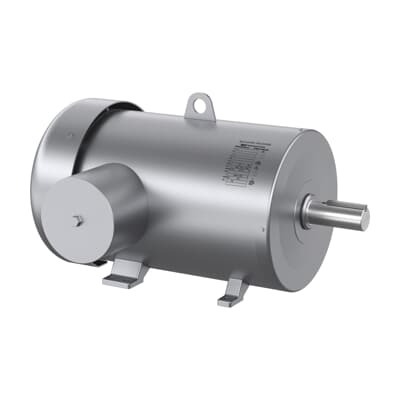

ABB FSWDM41904T Washdown Motor - 30HP 60Hz NEMA Premium
Part Number: 7BFSWDM41904T
Quick Summary
Washdown motor performance is engineered to deliver reliable, hygienic drive for food and beverage processing lines. In clean-in-place and washdown zones, corrosion, scale buildup, and downtime threaten productivity; this motor combats those realities. Certified CSA, UR and CSA EEV, plus NEMA Premium efficiency, offer regulatory compliance and energy savings. With 0 day lead time and stock at US and international warehouses, you can plan maintenance with confidence. In addition, 284T frame, stainless steel construction, TEFC enclosure and 230/460 V options support scalable, batch-ready production. This combination reduces maintenance cycles, extends motor life in harsh environments, and lowers total cost of ownership. Designed for 3-phase, 60 Hz systems and flexible mounting.
Product Information
Extended Description
7BFSWDM41904T ABB: Washdown Motor 30 Hp 230 V (FSWDM41904T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1775RPM,3PH,60HZ,284T,4074M,TE
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
FSWDM41904T
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
FSWDM41904T
Gross Volume
14448.906 in³
Gross Weight
395 lb
Insulation Class
H
Invoice Description
30HP,1775RPM,3PH,60HZ,284T,4074M,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 30 HP, 1800 RPM, Frame Size 284T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (FSWDM41904T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
82 %
Product Name
Food Safe Washdown
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
395 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
74 A | 37 A
Rated Efficiency
93.60 %
Rated Speed
1775 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
30 HP, 1800 RPM, Frame Size 284T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: Food Safe Washdown capability and stainless steel frame. Business Impact: Delivers hygienic, corrosion-resistant surfaces that are easier to clean and maintain, reducing sanitation-related downtime. Application: Ideal for food processing equipment, dairy lines and sanitary conveyors. Feature: 284T frame with TEFC enclosure and stainless frame material. Business Impact: Ensures robust mechanical strength in washdown environments and simplifies cleaning without compromising enclosure integrity. Application: Suitable for high-pressure washdown areas and heavy-duty conveyors in manufacturing plants. Feature: Premium efficiency (NEMA Premium), 93.60% efficiency, PF 82%, dual voltage 230/460 V at 60 Hz. Business Impact: Lowers energy costs and supports energy-withholding standards; improves ROI on continuous-duty drives. Application: Large-scale process lines and packaging systems requiring consistent torque and reliability. Feature: Direct-on-Line starting, 30 HP rating, 1775 r/min (synchronous 1800 r/min), 4-pole design. Business Impact: Simplifies start-up and reduces control complexity, enabling fast commissioning and reduced downtime. Application: Conveyors and mixers in continuous-operation environments. Feature: 0 day lead time, stock at multiple warehouses (US and international), 395 lb gross weight. Business Impact: Improves maintenance planning, reduces downtime risk, and accelerates supply availability for critical builds. Application: Global procurement programs and OEM integration with tight project schedules. Feature: Ambient 40 °C, Insulation Class H, Bearing 6311 Ball. Business Impact: Enables reliable operation in warm plants and ensures long service life under typical industrial loads. Application: Normal to harsh industrial settings with occasional elevated temperatures.
