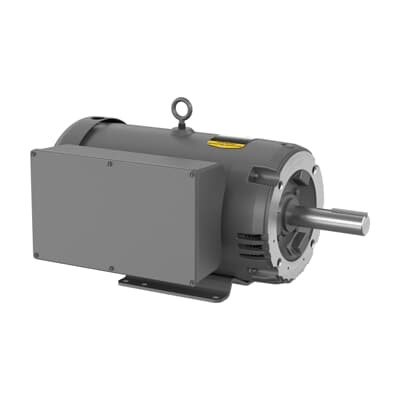

ABB 7BGDL1607T Farm Duty Motor - CSA UR Certified
Part Number: 7BGDL1607T
Quick Summary
Farm Duty Motor 7BGDL1607T by ABB delivers robust performance for single‑phase agricultural equipment. This motor excels in grain dryers, centrifugal fans, and other farm processing tasks that run on 230 V, 60 Hz. Engineers frequently wrestle with finding a compact, reliable motor that starts directly on line and withstands harsh environments. With CSA and UR certifications and a NEMA-aligned enclosure, this model meets critical safety and compliance standards while delivering predictable performance. Its 215TZ frame with foot mounting or C-face options supports easy installation and quick replacement, helping minimize downtime and total cost of ownership. Stocked at multiple warehouses for fast delivery, it keeps production moving when demand spikes.
Product Information
Extended Description
7BGDL1607T ABB: Farm Duty Motor 7.5 Hp 230 V (GDL1607T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1725RPM,1PH,60HZ,215TZ,3744LC
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
GDL1607T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYM320: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
ODTF
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
GDL1607T
Gross Volume
7561.383 inÂł
Gross Weight
142 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
ODTF
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,1725RPM,1PH,60HZ,215TZ,3744LC,ODTF
Lubrication
Regreasable
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 7.5 HP, 1800 RPM, Frame Size 215Tz, C-Face Mounting, 1 Phase, ODTF Enclosure, 230 V, 60 Hz (GDL1607T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TZ
Motor Frame Suffix
TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
90 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
142 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
32 A
Rated Efficiency
82.50 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 215Tz, C-Face, 1 PH, ODTF, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
J
Voltage Rating
230 V
Feature: 230 V, 60 Hz single‑phase operation. Business Impact: simplifies electrical design, reduces wiring complexity, and lowers startup power requirements. Application: ideal for grain dryer fans and other farm equipment that operate on standard utility power. The ABB 7BGDL1607T delivers dependable torque and smooth startup, improving line uptime and reducing installation costs.Feature: ODTF enclosure with a robust frame. Business Impact: protects windings and bearing systems from dust, moisture, and temperature swings common in agricultural settings. Application: extended service life in outdoor or semi‑indoor facilities such as grain handling facilities and barn environments.Feature: Frame 215TZ and C‑Face mounting. Business Impact: provides flexible installation options and simplifies retrofits or replacements in existing equipment. Application: horizontal mounting on grain dryers, fans, and conveyors with standard 215TZ footprints.Feature: Direct On Line (DOL) starting and 7.5 HP output. Business Impact: minimizes control hardware and reduces startup time, boosting production efficiency. Application: direct drive situations where immediate torque is needed, such as start‑ups of centrifugal fans in seed processing and drying lines.Feature: 1‑phase, 60 Hz operation with 1P design and 4 poles (1725 rpm). Business Impact: predictable performance, easier electrical supply, and reduced maintenance compared with more complex 3‑phase solutions. Application: rural plants and small‑scale processing lines requiring simple electrical infrastructure.Feature: Efficiency 82.50% and 32 A rated current. Business Impact: lower energy consumption and safer electrical loading, contributing to lower operating costs and longer motor life. Application: continuous, cost‑sensitive duty cycles in agricultural processing.Feature: 1.38 in shaft diameter and 1.15 service factor. Business Impact: supports durable coupling and reliability under load transients. Application: integration with standard couplings and belts in grain dryer fans and auxiliary equipment.Feature: 230 V, 60 Hz, NEMA design L insulation. Business Impact: aligns with common utility supplies and standardized electrical safety practices. Application: plug‑and‑play compatibility for farm and light industrial installations.Feature: Glass‑fiber reinforced bearings and regreasable lubrication. Business Impact: extended maintenance intervals and reduced bearing wear in dusty environments. Application: long‑life operation in continuous duty cycles while maintaining efficiency and reliability.
Get a Quick Quote for a ABB 7BGDL1607T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BGDL1607T?
Enquire Now
FAQs
The 7BGDL1607T uses a foot-mounted or C-face drive end with an ODTF enclosure, designed around the 215TZ frame. This combination provides flexible installation in horizontal configurations and straightforward retrofit into existing grain dryers, fans, or conveyors while maintaining enclosure protection against dust and moisture.
This is a 230 V, 60 Hz, single‑phase motor with a rated current of 32 A and an output of 7.5 Hp. The efficiency is rated at 82.50%, and the motor is designed for direct-on-line starting, delivering reliable startup torque for agricultural equipment and fans.
Yes. With 7.5 Hp, 1725 rpm (4-pole), 60 Hz operation and a 215TZ frame, the 7BGDL1607T is well suited for grain dryer centrifugal fans and related ag equipment, providing the right balance of torque, speed, and electrical compatibility for continuous duty in farming environments.
The motor carries CSA and UR certifications and adheres to NEMA standards. This combination supports compliance with safety and performance requirements for U.S. and Canadian markets, helping minimize qualification time for regulatory reviews.
Lead time is listed as 0 days, and stock is held at multiple warehouses, enabling rapid delivery. Warranty terms indicate warranty returns must be processed if issues arise, reducing downtime risk and supporting a favorable total cost of ownership for equipment operators.
