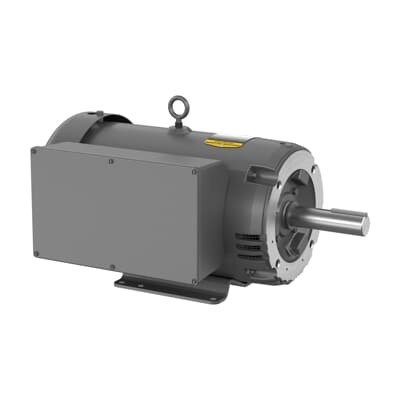

ABB 7BGDL1610T Farm Duty Motor - ODTF Enclosure
Part Number: 7BGDL1610T
Quick Summary
ABB 7BGDL1610T Farm Duty Motor delivers reliable 10 HP drive for grain drying and farm equipment. In rugged rural environments, downtime and maintenance costs can quickly erode value; this motor is designed for high availability and long life. It carries CSA and UR certifications and follows a NEMA-inspired design to support strict compliance. Operating on 230 V single-phase at 60 Hz with a robust ODTF enclosure, it enables easy sourcing and scalable installations across multiple U.S. and international warehouses, delivering a clear procurement advantage for busy agricultural projects and OA automation teams.
Product Information
Extended Description
7BGDL1610T ABB: Farm Duty Motor 10 Hp 230 V (GDL1610T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1740RPM,1PH,60HZ,215TZ,3748LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
GDL1610T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYM329: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
ODTF
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
GDL1610T
Gross Volume
7561.383 inÂł
Gross Weight
160 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
ODTF
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,1740RPM,1PH,60HZ,215TZ,3748LC,ODTF
Lubrication
Regreasable
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 10 HP, 1800 RPM, Frame Size 215Tz, C-Face Mounting, 1 Phase, ODTF Enclosure, 230 V, 60 Hz (GDL1610T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TZ
Motor Frame Suffix
TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
98 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
160 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
38 A
Rated Efficiency
86.50 %
Rated Speed
1740 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215Tz, C-Face, 1 PH, ODTF, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
G
Voltage Rating
230 V
Feature: ODTF enclosure provides robust environmental protection in dusty, humid grain-dryer and farm-site conditions. Business Impact: Reduces ingress-related wear and extends service intervals, lowering total cost of ownership. Application: Ideal for grain-dryer centrifugal fans and field equipment where enclosure protection is critical. Feature: 230 V single-phase operation simplifies electrical wiring and panel design on small farms and retrofit projects. Business Impact: Cuts installation time and wiring costs while maintaining reliable performance. Application: Common in on-site grain handling setups and standalone farm motor installations.Feature: 215TZ frame size with C-Face mounting enables straightforward, multi-orientation mounting and quick retrofits. Business Impact: Reduces installation complexity and enables flexible layouts in existing equipment footprints. Application: Conveyor and fan assemblies in grain-dryer systems.Feature: 1740 r/min (typical) with 60 Hz operation delivers tuned airflow and torque for grain-dryer fans and aeration systems. Business Impact: Improves process stability and energy efficiency, lowering energy per unit of output. Application: Grain-dryer centrifugal fans and related farm-duty fans.Feature: Regreasable lubrication and 86.5% rated efficiency support long-term reliability and reduced maintenance costs. Business Impact: Extends maintenance intervals and lowers operating expenses. Application: Continuous-duty environments in farming equipment and agri-processing lines.Feature: CSA | UR certifications and NEMA-aligned design provide regulatory confidence for agricultural and industrial deployments. Business Impact: Facilitates safer procurement, streamlines compliance audits, and supports cross-border sourcing. Application: Compliance-focused projects in farm automation, grain handling, and equipment refurbishments.
Get a Quick Quote for a ABB 7BGDL1610T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BGDL1610T?
Enquire Now
FAQs
Yes. The 7BGDL1610T is designed around the 215TZ frame with a C-Face mounting interface, enabling horizontal or space-constrained installations. Its mounting and flange geometry simplify retrofits into existing grain-dryer fans and farm equipment without extensive rework.
This is a 10 HP, 230 V, 1-phase motor operating at 60 Hz with a rated current of about 38 A. The motor’s rated speed is 1740 r/min with a synchronous speed of 1800 r/min, and it uses an ODTF enclosure with a frame size of 215TZ for reliable field service.
It excels in grain-dryer centrifugal fans, grain handling conveyors, and farm equipment requiring reliable single-phase operation. The 215TZ frame and robust enclosure support harsh dust and moisture, making it a solid choice for agricultural automation and processing lines.
The motor carries CSA and UR certifications and adheres to NEMA design standards. This combination supports regulatory compliance for US and international projects, reducing verification workload during audits and supplier qualification.
Stock is available across multiple warehouses, enabling shorter lead times for urgent projects. Its regreasable lubrication, 86.5% efficiency, and CSA/UR/NEMA alignment translate to lower maintenance costs and faster project payback in farm automation initiatives.
