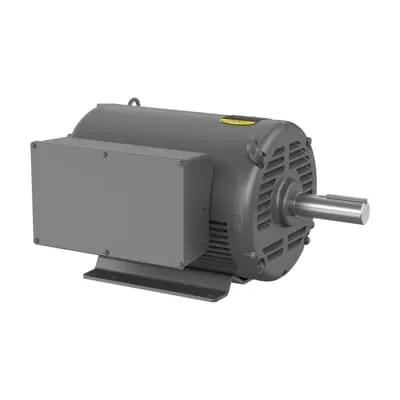

ABB 7BGDL1615T Farm Duty Motor - CSA UR, 60 Hz
Part Number: 7BGDL1615T
Quick Summary
Farm Duty Motor 7BGDL1615T delivers reliable 16 HP power for grain processing and agricultural fans. Engineers often face downtime and supply delays; this motor offers robust reliability and fast availability. Key certifications include CSA and UR recognition, supported by a NEMA design code L and OPSB enclosure for rugged farm use. It is designed for 1-phase 60 Hz operation at 208-230 V with a 256TZ frame, enabling smooth integration into existing equipment while reducing maintenance costs. With broad stocking across multiple warehouses, it supports quick procurement and consistent performance in challenging agricultural environments.
Product Information
Extended Description
7BGDL1615T ABB: Farm Duty Motor 16 Hp 208 V (GDL1615T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
16HP,1760RPM,1PH,60HZ,256TZ,3956LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6307 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
GDL1615T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
39LYT017: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
GDL1615T
Gross Volume
14448.906 inÂł
Gross Weight
136.531 kg
Horsepower Rating UL/CSA
16.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
16HP,1760RPM,1PH,60HZ,256TZ,3956LC,OPSB
Lubrication
Regreasable
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 16 HP, 1800 RPM, Frame Size 256Tz, Standard Mounting, 1 Phase, OPSB Enclosure, 208-230 V, 60 Hz (GDL161
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TZ
Motor Frame Suffix
TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
16 Hp
Power Factor
96 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
136.531 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
71 A | 62 A
Rated Efficiency
86.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Short Description
16 HP, 1800 RPM, Frame Size 256Tz, Standard, 1 PH, OPSB, 208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
L
Voltage Rating
208 V | 230 V
Feature → Business Impact → Application: The 1-phase 60 Hz operation at 208-230 V simplifies electrical integration and reduces wiring complexity, delivering predictable startup behavior and lower installation costs for plant and farm controls. This translates to faster commissioning of grain dryer centrifugal fans and grain-handling conveyors, minimizing production downtime. Feature → Business Impact → Application: Direct On Line starting capability (DOL) provides immediate torque for startup-critical loads, improving initial acceleration and reducing soft-start hardware requirements in agricultural fans and grain handling equipment. Feature → Business Impact → Application: OPSB enclosure and steel frame deliver rugged enclosure protection against dust, moisture, and temperature fluctuations typical of farm environments, increasing equipment uptime and reducing service calls for enclosure-related failures. Feature → Business Impact → Application: 256TZ frame size, 1-phase design, and regreasable bearings enable straightforward installation and maintenance, lowering spare parts inventory and extending motor life in grain-dryer fans and centrifugally driven equipment. Feature → Business Impact → Application: CSA and UR certifications, along with NEMA design code L, provide regulatory assurance for agricultural processing facilities, enabling easier procurement and compliance audits while supporting a longer service life in demanding settings.
Get a Quick Quote for a ABB 7BGDL1615T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BGDL1615T?
Enquire Now
FAQs
Yes. The 7BGDL1615T is a 1-phase, 60 Hz motor designed for 208-230 V operation, delivering 16 HP with a 1760 r/min rating and a 256TZ frame, suitable for direct-on-line starting and farm equipment.
It carries CSA and UR recognition, supported by a NEMA design code L and OPSB enclosure, which provides enhanced protection in agricultural environments and simplifies regulatory compliance.
Ideal for grain-dryer centrifugal fans and grain-handling conveyors, particularly where continuous duty and reliable performance are required in 60 Hz, single-phase installations with 208-230 V supply.
Plan for a foot-mounted, horizontal Mounting Position (F1) with a standard drive-end flange, OPSB enclosure, and regreasable bearings. Direct On Line starting simplifies wiring, while the 256TZ frame supports standard mounting patterns.
Regular lubrication of regreasable bearings and periodic checks of the OPSB enclosure are recommended. With 0-day lead times and stock at multiple warehouses, procurement efficiency reduces downtime and improves return on investment for seasonal grain processing operations.
