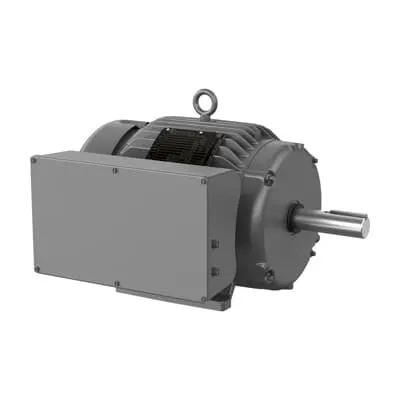

ABB 7BGDL3770T Farm Duty Motor - CSA UR
Part Number: 7BGDL3770T
Quick Summary
ABB 7BGDL3770T is a farm-duty motor designed for grain-dryer systems and other agricultural equipment, delivering 7.5 HP at 230 V with a TEFC enclosure for reliable operation. This approach reduces unscheduled downtime by providing robust performance in demanding environments. The product carries important North American certifications, including CSA and UR, and aligns with NEMA design expectations to ensure safety and reliability. Its compact 215TZ frame, 1-phase 60 Hz configuration, and straightforward direct-on-line start simplify retrofits and new installations alike. For manufacturers and service teams, the combination of strong compliance and predictable electrical performance translates into lower lifecycle costs and fewer mid-project delays.
Product Information
Extended Description
7BGDL3770T ABB: Farm Duty Motor 7.5 Hp 230 V (GDL3770T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1750RPM,1PH,60HZ,215TZ,0743LC
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
GDL3770T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
GDL3770T
Gross Volume
18876.375 in³
Gross Weight
219.999 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
7.5HP,1750RPM,1PH,60HZ,215TZ,0743LC,TEFC
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 7.5 HP, 1800 RPM, Frame Size 215Tz, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (GDL3770T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
96 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
31.5 in
Product Net Height
23.5 in
Product Net Weight
219.999 lb
Product Net Width
25.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
29.6 A
Rated Efficiency
85.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 215Tz, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V
Feature → Business Impact → Application: TEFC enclosure and 215TZ frame provide superior protection against dust and moisture in grain-dryer environments, reducing bearing wear and extending motor life, which translates to lower maintenance costs and longer service intervals for farming operations. Application note: Suitable for grain dryer fans and related agricultural equipment where enclosure integrity matters. Feature → Business Impact → Application: 7.5 HP output with 1750 rpm nominal speed ensures adequate torque for startup and continuous operation in belt-driven systems, improving process reliability and reducing throughput bottlenecks in seed processing and grain handling. Application: Grain-dryer centrifugal fans and conveyors that require steady, single-speed performance. Feature → Business Impact → Application: Direct On Line starting minimizes control complexity and investment in soft-start equipment, offering fast commissioning and lower total installed cost for farm-duty motors. Application: 1PH 60 Hz grids common in load centers serving rural facilities. Feature → Business Impact → Application: Rated current 29.6 A with service factor 1.15 provides a margin for peak loads and minor voltage drops, reducing nuisance trips and protecting valuable process equipment. Application: High-demand agricultural fans and blowers with variable ambient temperatures up to 40 °C. Feature → Business Impact → Application: Foot-mounted base and shaft diameter 1.38 in support easy alignment and retrofit compatibility with existing pump and fan assemblies. Application: Upgrading legacy 215TZ frame motors in grain-dryer and seed-cleaning lines. Feature → Business Impact → Application: CSA and UR certifications, along with NEMA-aligned design, deliver regulatory confidence and supply-chain reliability for North American installations. Application: Any compliant installation requiring traceable safety approvals and dependable performance.
Get a Quick Quote for a ABB 7BGDL3770T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BGDL3770T?
Enquire Now
FAQs
Yes. The 7BGDL3770T is a 7.5 HP, 230 V, single-phase motor with TEFC enclosure and 215TZ frame, designed for grain-dryer fans and similar farm machinery. It supports direct-on-line starts and offers reliable torque for startup and continuous operation.
The motor is certified CSA and UR, with a NEMA-aligned design. This combination provides recognized safety approvals for North American installations and compatibility with common farm-duty applications.
It uses a foot-mounted base on a 215TZ frame with a 1.38 in shaft, simplifying retrofits and new installations. The Direct On Line starting method reduces drive hardware requirements and accelerates commissioning.
Key specs include 7.5 HP, 230 V, 60 Hz, 1750 r/min (syn 1800 r/min), 29.6 A rated current, service factor 1.15, and 4P configuration. These support predictable performance and adequate fault margins in farm-duty environments.
Lead time is listed as 0 day with stock at multiple warehouses, including US and international sites, which supports fast delivery and minimal project delays for farm automation projects.
