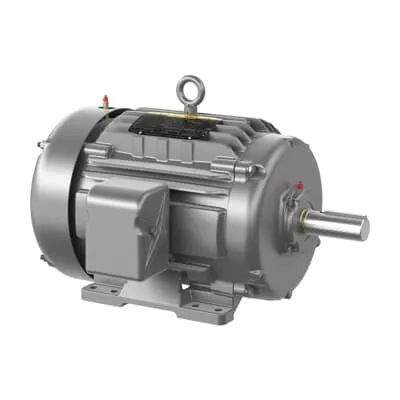

ABB GNEM2333T GP 3PH Open Motor - IE3 Premium Efficiency
Part Number: 7BGNEM2333T
Quick Summary
ABB GNEM2333T GP 3PH Open Motor delivers 11 kW of reliable power for general-purpose drive applications. This capability is well suited to conveyors, pumps, and fans in light manufacturing where consistency and uptime matter. Manufacturers often face downtime and energy waste when motors aren’t optimized for efficiency or are incompatible with regional voltage standards; this model mitigates those risks with broad voltage support and robust construction. With CE, IE3 Premium efficiency, and UKCA certifications, it satisfies global compliance requirements. The TEFC enclosure and 254T frame enable straightforward installation and long service life, while multi-voltage ratings streamline cross-border procurement and spare-part planning for industrial operations.
Product Information
Extended Description
7BGNEM2333T ABB: General Purpose Motor 11 kW 190 V (GNEM2333T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP//11KW,1770//1465 1/MINRPM,3PH,
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
GNEM2333T
Certification Agency
C UR US | CE | IE3 | NEMA_PREMIUM | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Global Commercial Alias
GNEM2333T
Gross Weight
286 lb
Insulation Class
F
Invoice Description
15HP//11KW,1770//1465 1/MINRPM,3PH,60//5
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
11 kW | 15 Hp
Power Factor
85 %
Product Name
GP 3PH Open
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
286 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
38 A | 36.8 A | 18.4 A | 44 A | 22 A
Rated Efficiency
92.4 %
Rated Speed
1465 r/min | 1770 r/min
Replaced Product ID (OLD)
7B09P011T342G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States
Synchronous Speed (vsyn)
1500 r/min | 1800 r/min
Type of Duty
Continuous
Voltage Rating
190 V | 208 V | 230 V | 380 V | 460 V
Feature → Business Impact → Application: Broad voltage and power range (190–460 V, 11 kW) supports multiple regional grids and reduces spare-parts inventory, enabling quick deployment across global facilities. Application: general-purpose motor installations, including conveyors, pumps, and fans, with a single stock-keeping footprint. Feature → Business Impact → Application: TEFC enclosure and iron frame deliver enhanced protection against dust, humidity, and contaminants, lowering maintenance costs and unplanned downtime. Application: harsh plant environments such as metalworking or mining pass-throughs. Feature → Business Impact → Application: IE3 Premium efficiency with service factor 1.15 delivers measurable energy savings and regulatory compliance, reducing total cost of ownership over the motor’s life. Application: continuous-duty operations where energy cost and thermal management are critical. Feature → Business Impact → Application: 254T frame with foot mounting and horizontal orientation simplifies retrofits and new installs, allowing compatibility with existing bases and reducing installation time. Application: upgrades of aging equipment or new lines in packaging and material handling. Feature → Business Impact → Application: 3-phase, 4-pole design with 1465/1770 rpm speeds provides reliable torque and speed control for load variability. Application: drives for fans, pumps, and conveyors with predictable performance. Feature → Business Impact → Application: 40 °C ambient tolerance and DOL starting support streamline installation in a wide range of industrial settings, improving throughput. Application: plants operating in warm climates or with limited cooling capacity. Finally, certification and stocking advantages reduce procurement risk and ensure regulatory alignment across regions, supporting reduced downtime and faster ROI when upgrading motor fleets.
Get a Quick Quote for a ABB 7BGNEM2333T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BGNEM2333T?
Enquire Now
FAQs
Yes. The GNEM2333T is a foot-mounted 254T frame motor designed for straightforward installation. It supports direct-on-line starts and works with most common VFDs, making it suitable for varying speed control needs without major retrofits.
Key specs include 11 kW output, three-phase, 4-pole design, speeds of 1465/1770 r/min, voltage rating 190–460 V, TEFC enclosure, and service factor 1.15. Rated currents vary by voltage, with typical values around 38 A down to 18.4 A.
Yes. It is designed for continuous duty, with a TEFC enclosure and ambient rating of 40 °C, providing reliable operation in demanding industrial environments. Its 1.15 service factor supports minor overloads common in conveyors and pump applications.
The motor carries CE, UKCA, IE3 (Premium Efficiency), and NEMA Premium certifications, with UR US listing and WEEE compliance, ensuring global regulatory alignment for multiregional deployments.
The GNEM2333T is stocked across multiple warehouses with zero-day lead time, minimizing downtime. Warranty terms require return of the product under warranty if applicable, helping protect long-term uptime and budget predictability.
