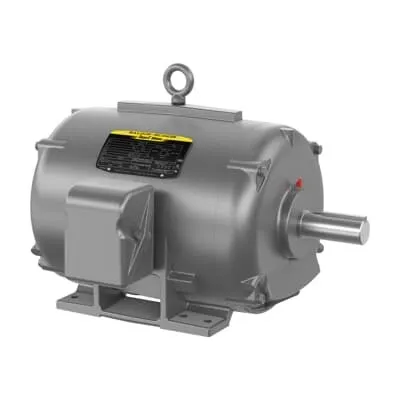

ABB 7BGNEM2515T-CI General Purpose Motor - IE3 Premium
Part Number: 7BGNEM2515T-CI
Quick Summary
ABB 7BGNEM2515T-CI general purpose motor delivers 15 kW of reliable power for 3-phase drives in pumps, fans, and conveyors. It addresses downtime and installation challenges by supporting a wide voltage range and direct-on-line starting, enabling flexible deployments across regional grids. This motor carries key certifications and performance marks, including CE, UKCA, and IE3/NEMA Premium efficiency, reinforcing compliance and energy savings in global operations. The rugged ODP enclosure, 256T frame, and foot-mounted design simplify installation in existing plant layouts and OEM configurations. With high availability in mind, this solution helps minimize spare-part inventories while maximizing uptime and total cost of ownership for industrial automation projects.
Product Information
Extended Description
7BGNEM2515T-CI ABB: General Purpose Motor 15 kW 190 V (GNEM2515T-CI)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP//15KW,1775//1465RPM,3PH,60//50
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
GNEM2515T-CI
Certification Agency
C UR US | CE | IE3 | NEMA_PREMIUM | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
ODP
Frame Material
Iron
Frame Size
Undefined
Global Commercial Alias
GNEM2515T-CI
Gross Weight
286 lb
Insulation Class
F
Invoice Description
20HP//15KW,1775//1465RPM,3PH,60//50HZ,25
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
15 kW | 20 Hp
Power Factor
83 %
Product Name
GP 3PH Enclosed
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
286 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
52 A | 48 A | 24 A | 58 A | 29 A
Rated Efficiency
93.0 %
Rated Speed
1465 r/min | 1775 r/min
Replaced Product ID (OLD)
7B09D001T636G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States
Synchronous Speed (vsyn)
1500 r/min | 1800 r/min
Type of Duty
Continuous
Voltage Rating
190 V | 208 V | 230 V | 380 V | 460 V
Feature: Wide voltage and 3-phase operation. Business Impact: Enables flexible installations across global sites and reduces transformer and wiring costs. Application: Pumps, fans, and conveyors in manufacturing environments. This reduces procurement complexity when sourcing across US, Europe, and Asia. Feature: IE3 / NEMA Premium efficiency. Business Impact: Lowers energy consumption and operating cost by delivering high efficiency at full load and part-load. Application: Continuous-duty drives in process lines with periodic load variation. Feature: Robust mechanical design. Business Impact: With 256T frame, 1.63 in shaft, and foot mounting, installation time is minimized and alignment issues are reduced. Application: Plant retrofits and OEM equipment where space and alignment are constrained. Feature: ODP enclosure and insulation Class F. Business Impact: Protects internal windings from dust and moisture while tolerating ambient temperatures up to 40 °C, extending motor life. Application: Harsh factory floors and outdoor-rated indoor spaces. Feature: Direct-on-line starting and 4-pole operation. Business Impact: Simplifies starting logic, reduces control hardware, and delivers predictable starting torque. Application: Line-driven conveyors and pumps with fast startup requirements. Feature: Stocked at multiple warehouses and 0 day lead time. Business Impact: Short lead times, rapid replacements, and minimal downtime. Application: Critical spares and maintenance planning for continuous production lines.
