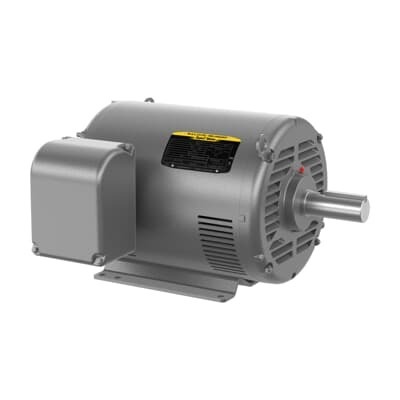

ABB 7BGNEM2524T General Purpose Motor - IE3 Premium
Part Number: 7BGNEM2524T
Quick Summary
ABB 7BGNEM2524T general purpose motor delivers reliable 11 kW performance for 3-phase systems in demanding industrial environments. This design targets pumps, fans, and conveyors where consistent torque and durable operation matter. If you’re wrestling with energy costs, inconsistent start-up, or supply chain delays, this motor offers a predictable solution with flexible voltage options and robust construction. It carries multiple certifications for global compliance, including IE3 premium efficiency and CE/UKCA marks, helping you meet regulatory requirements while optimizing operating expenditures. With fast local availability and a 0-day lead time in several warehouses, you can plan procurement with confidence and minimize downtime across production lines.
Product Information
Extended Description
7BGNEM2524T ABB: General Purpose Motor 11 kW 190 V (GNEM2524T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP//11KW,1180//980RPM,3PH,60//50H
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
GNEM2524T
Certification Agency
C UR US | CE | IE3 | NEMA_PREMIUM | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
GNEM2524T
Gross Weight
369 lb
Insulation Class
F
Invoice Description
15HP//11KW,1180//980RPM,3PH,60//50HZ,284
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
11 kW | 15 Hp
Power Factor
75 %
Product Name
GP 3PH Open
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
369 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
42 A | 40 A | 20 A | 46 A | 23 A
Rated Efficiency
91.7 %
Rated Speed
1180 r/min | 980 r/min
Replaced Product ID (OLD)
7B40G048X502G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States
Synchronous Speed (vsyn)
1000 r/min | 1200 r/min
Type of Duty
Continuous
Voltage Rating
190 V | 208 V | 230 V | 380 V | 460 V
Feature → Business Impact → Application. The GNEM2524T series uses IE3 premium efficiency, delivering measurable energy savings that reduce operating costs across pumps and fans in continuous duty. In practice, this translates to lower electricity bills and improved overall equipment effectiveness (OEE) in manufacturing lines; ideal for HVAC retrofits or OEM projects seeking compliant, high-efficiency motors. Feature → Business Impact → Application. Direct on line starting simplifies control logic and lowers upfront hardware requirements, reducing installation time and commissioning costs while enabling immediate load response for 3-phase conveyors and material handling. This is especially valuable in high-throughput plants where uptime and fast changeovers matter. Feature → Business Impact → Application. Enclosure OPSB and steel 284T frame provide rugged protection in dusty or humid environments, extending service intervals and minimizing unscheduled maintenance on pumps and mixers. Feature → Business Impact → Application. 190 V–460 V voltage rating and multiple rated speeds (1180 r/min and 980 r/min) give you precise motor matching for process lines, improving torque control and stability across varying loads. Feature → Business Impact → Application. Stocked at multiple warehouses with 0 day lead time supports just-in-time procurement, reducing safety stock and accelerating project delivery for global OEMs and integrators. Feature → Business Impact → Application. The unit carries CE, UKCA, and NEMA Premium certifications (IE3), ensuring compliance with regional energy and safety standards, which mitigates regulatory risk when bidding for international projects. Feature → Business Impact → Application. With a 1.88 in shaft diameter and 284T frame, retrofitting to existing machinery becomes feasible without extensive mechanical adaptation, cutting installation lead times and preserving capital expenditure. Feature → Business Impact → Application. Warranty terms and a clear warranty return policy provide financial protection and support planning for maintenance cycles, contributing to a lower total cost of ownership over the motor’s life. In summary, this motor is well-suited for continuous-duty industrial drives, aligning energy efficiency, regulatory compliance, and rapid deployment with practical field requirements.
Get a Quick Quote for a ABB 7BGNEM2524T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BGNEM2524T?
Enquire Now
FAQs
Yes. The 7BGNEM2524T is specified for 190 V to 230 V across 3-phase systems and supports direct-on-line starting. With a 284T frame and foot-mounted configuration, it fits standard motor bases and can be integrated with common VFDs or soft starters for controlled ramping when needed.
Key specs include 11 kW (15 HP), rated currents up to 46 A, speed options at 1180 r/min and 980 r/min, and a 1.88 in shaft diameter. Insulation class F and IE3 premium efficiency ensure energy savings and reliability. The enclosure is OPSB, supporting robust operation in challenging environments.
Ideal for continuous-duty applications like industrial pumps, fans, and conveyors where stable torque and high efficiency are critical. The 3PH Open design supports easy retrofits and OEM integrations, while its magnetic and mechanical tolerances align with standard process control requirements.
The unit carries CE, UKCA, IE3, and NEMA Premium certifications, along with WEEE. This combination helps meet international energy efficiency and safety standards, easing cross-border procurement and reducing compliance risk in global projects.
Maintenance is streamlined by a robust steel frame, OPSB enclosure, and a proven bearing setup designed for long service life. The warranty policy requires returns for warranty issues, and the motor’s high efficiency reduces life-cycle energy costs, improving total cost of ownership and ROI over time.
