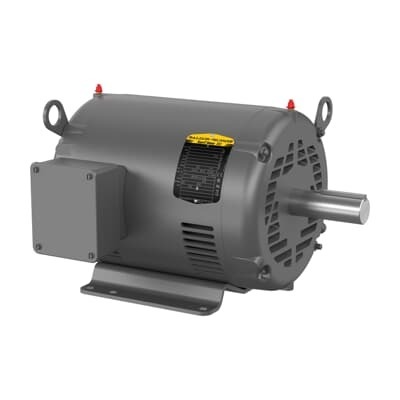

ABB 7BGNEM3311T General Purpose Motor - IE3 Premium
Part Number: 7BGNEM3311T
Quick Summary
ABB 7BGNEM3311T General Purpose Motor delivers reliable three-phase power for conveyors, pumps, and machine tools in industrial environments. Sourcing motors that combine open OPSB enclosure with a robust 213T frame can stall projects due to long lead times and uncertain performance. This model meets CE, CSA, and IE3 premium efficiency standards, with UR and WEEE registrations that support global compliance. It is designed for 50/60 Hz operation, a wide voltage rating, and direct-on-line starting, enabling quick installation and reduced panel costs. By choosing this motor, engineering teams gain energy savings, predictable maintenance, and a scalable solution for production lines and automation systems.
Product Information
Extended Description
7BGNEM3311T ABB: General Purpose Motor 7.50 Hp 190 V (GNEM3311T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770//1460RPM,3PH,60//50HZ,21
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
GNEM3311T
Certification Agency
CE | CSA | IE3 | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
213
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
GNEM3311T
Gross Volume
7192.91 inÂł
Gross Weight
140 lb
Insulation Class
F
Invoice Description
7.5HP,1770//1460RPM,3PH,60//50HZ,213T,37
Made To Order
No
Medium Description
General Purpose 3PH Open, 7.5/5.5 HP, 1800//1500 RPM, Frame Size 213T, Standard Mounting, 3 Phase, OPSB Enclosure, 208-230/460//190/
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.50 Hp
Power Factor
80 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
140 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
20.4 A | 19.4 A | 9.7 A | 22.8 A | 11.4 A
Rated Efficiency
91.70 %
Rated Speed
1460 r/min | 1770 r/min
Replaced Product ID (OLD)
7B37F614Z617G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
7.5/5.5 HP, 1800//1500 RPM, Frame Size 213T, Standard, 3 PH, OPSB, 208-230/460//190/380 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min | 1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
190 V | 208 V | 230 V | 380 V | 460 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Frame and enclosure deliver straightforward installation. The 213T frame size ensures compatibility with common belt drives and mounting kits, while the OPSB open enclosure protects internal windings in non-harsh environments. This combination reduces retrofit risk and allows rapid on-site setup for conveyors and mixers. Voltage and efficiency support broad system integration; with a voltage rating of 190–460 V and IE3 premium efficiency, it enables flexible power sourcing and lower energy consumption across shifts, translating into measurable operating-cost reductions on mixed-load lines. The motor’s 4-pole, 3-phase design, 7.50 HP output, 1460/1770 rpm, and direct-on-line starting provide reliable start-up behavior and predictable torque for continuous duty applications like pumps and material handling. A 1.15 service factor, Insulation Class F, and 91.70% efficiency profile offer durable performance in typical factory environments while limiting heat-related wear and energy waste. Mechanical durability is reinforced by steel frame construction and a 1.38 in shaft diameter, supporting robust coupling with standard gearboxes and belts. The motor is foot-mounted with horizontal mounting (F1) and OPSB enclosure, simplifying installation and serviceability while complying with NEMA Design Code B and 50/60 Hz operation. Stock availability is broad, with 0-day lead time and multiple regional warehouses, enabling rapid sourcing, reduced downtime, and improved project timelines. A wide compatibility footprint ensures this motor integrates with existing VFDs, motor starters, and control panels, alleviating common integration challenges and supporting scalable automation growth.
