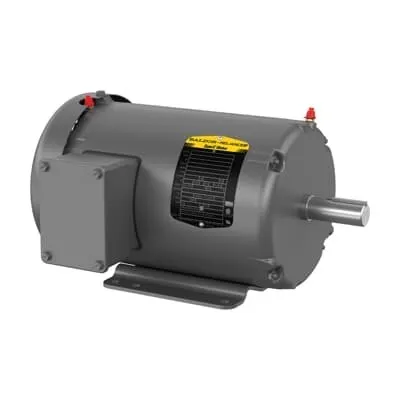

ABB GNEM3556 General Purpose Motor - IE3 Premium
Part Number: 7BGNEM3556T
Quick Summary
ABB GNEM3556 General Purpose Motor is a 0.75 kW, 3-phase motor for reliable use in industrial drives. This solution minimizes downtime and energy waste in continuous-duty applications. It carries CE, UKCA, NEMA Premium, and IE3 Premium efficiency for global compliance. With a wide voltage range (190–460 V) and a TEFC enclosure, the GNEM3556 supports multi-site procurement and robust performance in challenging environments. The foot-mounted, 56-frame design simplifies installation and retrofit into existing equipment, while the NEMA B design and Direct on Line starting keep control strategies straightforward. Overall, this motor delivers measurable business value through energy efficiency, predictable maintenance, and compatibility with standard industrial baselines.
Product Information
Extended Description
7BGNEM3556T ABB: General Purpose Motor 0.75 kW 190 V (GNEM3556T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP//.75KW,1170//965RPM,3PH,60//50H
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
GNEM3556T
Certification Agency
CE | CURUSEEV | IE3 | NEMA_PREMIUM | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Drive End Flange Type
Standard
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
GNEM3556T
Gross Weight
41 lb
Insulation Class
F
Invoice Description
1HP//.75KW,1170//965RPM,3PH,60//50HZ,145
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.75 kW | 1 Hp
Power Factor
64 %
Product Name
GP 3PH Enclosed
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
41 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.6 A | 3.56 A | 1.78 A | 4 A | 2 A
Rated Efficiency
82.5 %
Rated Speed
1170 r/min | 965 r/min
Replaced Product ID (OLD)
7B35A001G330G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States
Synchronous Speed (vsyn)
1000 r/min | 1200 r/min
Type of Duty
Continuous
Voltage Rating
190 V | 208 V | 230 V | 380 V | 460 V
Feature → Business Impact → Application: The GNEM3556 employs IE3 Premium efficiency, reducing energy consumption and operating costs across continuous-duty cycles, which translates to lower total cost of ownership in pumps, fans, and conveyors. This efficiency also supports regulatory compliance and sustainability goals for global facilities. Feature → Business Impact → Application: TEFC enclosure combined with a steel frame provides rugged protection against dust, moisture, and light contamination, decreasing maintenance intervals in manufacturing plants and outdoors-adjacent equipment. Feature → Business Impact → Application: 56 frame, foot-mounted orientation enables straightforward retrofits and quick installations on existing baseplates, minimizing downtime during line upgrades in packaging lines or material handling systems. Feature → Business Impact → Application: Wide voltage tolerance (190–460 V) and 3-phase operation enable multi-region deployments without separate SKUs, reducing inventory complexity for OEMs and integrators. Feature → Business Impact → Application: Direct-on-line starting and NEMA design B characteristics simplify motor control schemes, lowering upfront wiring and soft-start requirements for fans and pumps. Feature → Business Impact → Application: High shaft durability (0.63 in) and robust bearings (6205 ball) support longer mean time between failures (MTBF) in demanding conveyors and mixer applications. Feature → Business Impact → Application: Global availability (Stocked At multiple warehouses) ensures shorter lead times and improved supply resilience for critical automation projects. Long-tail keywords integrated include 3-phase general purpose motor, GNEM3556 0.75 kW motor, TEFC 56-frame motor, IE3 Premium efficiency motor, foot-mounted NEMA motor, and 190–460 V voltage range to support diverse procurement needs.
