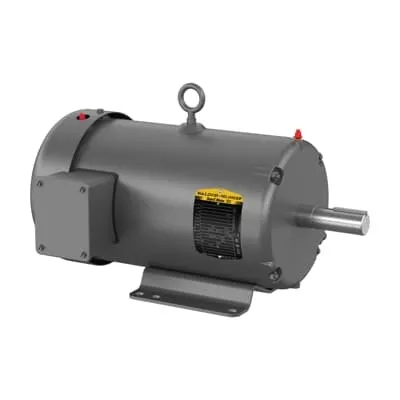

ABB GNEM3615T General Purpose Motor - IE3
Part Number: 7BGNEM3615T
Quick Summary
ABB GNEM3615T General Purpose Motor is a robust 3-phase, 5 HP motor designed for everyday industrial duty. It delivers reliable torque for pumps, fans, conveyors, and other standard equipment in US-origin voltage configurations. This motor is built to minimize downtime with a TEFC enclosure, durable steel frame, and straightforward Direct on Line starting. By meeting premium efficiency IE3 standards and solid NEMA design practices, it helps reduce energy costs and maintenance cycles. For engineers and procurement teams, the GNEM3615T offers consistent performance, supported by 0-day lead times and broad stock across multiple warehouses, ensuring rapid project ramp-up and predictable total cost of ownership.
Product Information
Extended Description
7BGNEM3615T ABB: General Purpose Motor 5 Hp 190 V (GNEM3615T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750//1440RPM,3PH,60//50HZ,184T
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
GNEM3615T
Certification Agency
CE | CSA | IE3 | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
GNEM3615T
Gross Volume
7192.91 in³
Gross Weight
101 lb
Insulation Class
F
Invoice Description
5HP,1750//1440RPM,3PH,60//50HZ,184T,3646
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 5/3.7 HP, 1800//1500 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 208-230/460//19
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
101 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
14 A | 13 A | 6.6 A | 15.4 A | 7.7 A
Rated Efficiency
90.20 %
Rated Speed
1440 r/min | 1750 r/min
Replaced Product ID (OLD)
7B36G271R014G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
5/3.7 HP, 1800//1500 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 208-230/460//190/380 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min | 1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
190 V | 208 V | 230 V | 380 V | 460 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: The 5 HP, 184T frame, 3-phase GNEM3615T is designed for standard industrial drives, enabling straightforward replacement in pumps, conveyors, and fans with a grounded footprint and DOL starting. This yields reduced installation time and predictable performance in maintenance cycles. The TEFC enclosure and steel frame deliver rugged reliability in challenging environments, translating to lower downtime and longer service life in manufacturing lines. With an IE3 premium efficiency designation, the motor achieves high efficiency (up to 90.2%), delivering measurable energy-cost savings on continuous-duty applications like water pumps and material handling systems. Compatibility with 190–230/380–460 V supplies and 50/60 Hz operation reduces spare-part variety and stock requirements, while a 0-day lead time and broad warehouse availability accelerate project timelines. The 1.13 in shaft diameter and 184T frame support easy coupling and alignment with existing belts and pulleys, minimizing rework during installation. Direct on line starting simplifies startup logic and reduces electrical design considerations, helping maintain uptime in production lines. Industry insight shows that premium efficiency motors like this one can lower energy bills by substantial margins over the motor’s life, improving total cost of ownership for facilities running pumps, blowers, or conveyors. The motor’s corrosion-resistant steel frame and robust bearings (6206 ball bearings) are engineered for longer service intervals, supporting maintenance plans and reducing total maintenance costs for critical processing lines. This model’s 3-phase, 4-pole design offers reliable speed control and consistent torque, ideal for continuous-duty regimes in process and packaging environments.
