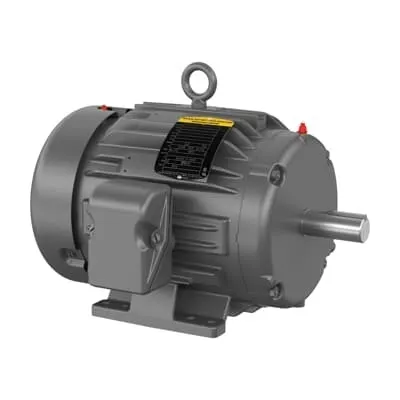

ABB GNEM3661T General Purpose Motor - IE3 Premium
Part Number: 7BGNEM3661T
Quick Summary
General Purpose Motor GNEM3661T from ABB delivers reliable 3-phase power for industrial conveyors, pumps, and fans. Designed to streamline sourcing, this motor uses a standard 182T frame and a rugged TEFC enclosure to reduce part mismatch and downtime. Certifications include CE, CSA, and IE3 Premium efficiency (NEMA Premium) ensuring compliance, energy savings, and reliable operation in regulated environments. With a footprint that matches common OEM configurations, it supports quick installation, straightforward maintenance, and measurable cost savings through higher efficiency and broader voltage compatibility.
Product Information
Extended Description
7BGNEM3661T ABB: General Purpose Motor 3 Hp 190 V (GNEM3661T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
36M 4P TEFC HOR 182T SUPER E, I
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
GNEM3661T
Certification Agency
CE | CSA | IE3 | NEMA_PREMIUM | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
182
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
GNEM3661T
Gross Volume
5274.135 in³
Gross Weight
108 lb
Insulation Class
F
Invoice Description
36M 4P TEFC HOR 182T SUPER E, IE3
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 3/2.2 HP, 1800//1500 RPM, Frame Size 182T, Standard Mounting, 3 Phase, TEFC Enclosure, 208-230/460//19
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
74 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
108 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9 A | 8.8 A | 4.4 A | 10.2 A | 5.1 A
Rated Efficiency
90.20 %
Rated Speed
1460 r/min | 1760 r/min
Replaced Product ID (OLD)
7B06C101X848G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
3/2.2 HP, 1800//1500 RPM, Frame Size 182T, Standard, 3 PH, TEFC, 208-230/460//190/380 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min | 1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
190 V | 208 V | 230 V | 380 V | 460 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: TEFC enclosure provides robust protection against dust and moisture, reducing field failures and maintenance costs in harsh environments, enabling reliable operation in continuous-duty conveyors and pumps. Feature → Application: 182T frame and 4-pole design align with widely used OEM footprints, accelerating retrofits and minimizing installation time across industrial facilities. Feature → Business Impact: IE3 Premium efficiency lowers energy consumption by reducing I squared losses, delivering tangible cost savings on long-running applications such as fans and pumps. Feature → Application: 190–460 V multi-voltage capability simplifies electrical design for multinational plants, enabling fast deployment with existing gear reducers and drives. Feature → Business Impact: 3-phase, direct-on-line starting supports immediate commissioning, reducing startup time for new lines and minimizing downtime. Feature → Application: TEFC and corrosion-resistant bearings support long service intervals, improving uptime in environments with dust, humidity, or temperature up to 40 °C. Feature → Business Impact: Stocked at multiple warehouses with 0 day lead time, improving supply reliability for urgent project needs and maintenance windows.
