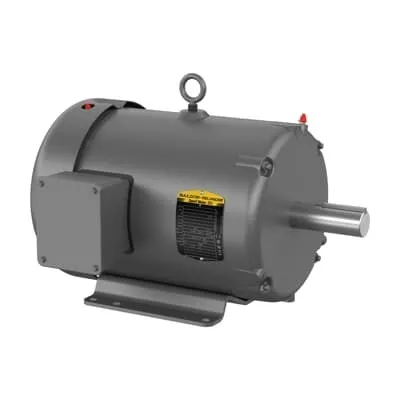

ABB GNEM3714T GP 3PH Enclosed Motor - IE3 Premium
Part Number: 7BGNEM3714T
Quick Summary
ABB GNEM3714T General Purpose Motor delivers 7.5 kW for heavy industrial drives. This 3-phase, TEFC enclosed unit supports continuous operation in demanding production lines where uptime is critical. It carries CE, UKCA, and IE3 Premium certifications, aligning with global energy and safety standards while maintaining NEMA compatibility. With a rugged steel frame, foot mounting, and a 1.15 service factor, the GNEM3714T blends reliability with predictable performance. Stocked at multiple warehouses with 0 day lead time, it reduces downtime and accelerates procurement. Its combination of a 215T frame, 1.38 in shaft, and robust design makes it well-suited for conveyors, pumps, and fans across manufacturing, packaging, and processing environments.
Product Information
Extended Description
7BGNEM3714T ABB: General Purpose Motor 7.5 kW 190 V (GNEM3714T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP//7.5KW,1770//1460RPM,3PH,60//5
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
GNEM3714T
Certification Agency
CE | CURUSEEV | IE3 | NEMA_PREMIUM | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
GNEM3714T
Gross Weight
165 lb
Insulation Class
F
Invoice Description
10HP//7.5KW,1770//1460RPM,3PH,60//50HZ,2
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.5 kW | 10 Hp
Power Factor
78 %
Product Name
GP 3PH Enclosed
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
165 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
27 A | 26 A | 13 A | 30 A | 15 A
Rated Efficiency
91.7 %
Rated Speed
1460 r/min | 1770 r/min
Replaced Product ID (OLD)
7B37H244Z676
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States
Synchronous Speed (vsyn)
1500 r/min | 1800 r/min
Type of Duty
Continuous
Voltage Rating
190 V | 208 V | 230 V | 380 V | 460 V
Feature: High-power 7.5 kW output with 190 V operating range. Business Impact: Delivers strong torque for demanding drives while supporting voltage flexibility across typical industrial systems. Application: Suitable for conveyors, pumps, and fans in mixed-voltage environments. The motor's efficiency and torque at start enable smoother line start-ups and reduced electrical stress. Feature: IE3 Premium efficiency level. Business Impact: Reduces energy consumption and operating costs over asset life, improving total cost of ownership. Application: Ideal for continuous-duty processes where turbine or pump standby must be minimized and energy costs are a concern. Feature: TEFC enclosure with rugged steel frame (215T) and foot mounting. Business Impact: Provides protection in dirty or harsh environments and simplifies installation with standard bases. Application: Outdoor or semi-enclosed plant sections, skid-mounted systems, and retrofit projects. Feature: Direct-on-line starting and 3-phase operation. Business Impact: Enables fast, straightforward commissioning with predictable performance and reduced starter hardware. Application: Mixed-load lines in assembly and material handling. Feature: Robust mechanicals (Shaft diameter 1.38 in, NEMA design, 1.15 service factor). Business Impact: Enhances durability, ease of coupling to loads, and resilience under peak loads. Application: Heavy-duty fans, pumps, and conveyors in continuous-duty applications. Feature: Stocked availability and flexible voltage rating (190–460 V). Business Impact: Shortens procurement cycles and minimizes downtime with ready-to-ship units. Application: Global manufacturing environments needing rapid replacement or fleet maintenance.
