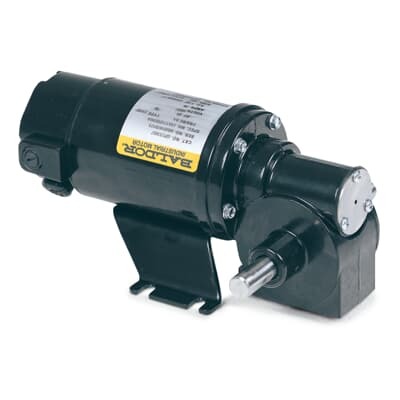

ABB GP233021 DC Permanent Magnet - CE UR RoHS
Part Number: 7BGP233021
Quick Summary
DC Permanent Magnet motors like ABB GP233021 deliver compact, high-torque drive for small machinery and packaging lines. When space is tight and reliability matters, this motor provides a dense power package that simplifies junctions and wiring. It carries RoHS compliance and CE/UR certifications for safe, global operation, including a TENV enclosure and a steel frame designed for demanding industrial environments. With 0.067 HP output, 180 V armature voltage, and a BA gearbox, it supports efficient automation and easy procurement. This combination reduces integration risk while improving uptime and overall equipment effectiveness in mid-volume production lines.
Product Information
Extended Description
7BGP233021 ABB: .06HP,DC,BA,2318P,TENV,GM
ABB Type Designation
.06HP,DC,BA,2318P,TENV,GM
Ambient Temperature
40 °C
Armature Current
0.4 A
Armature Inertia
0.011 ft·lbf
Armature Voltage
180 V
Brand / Label
Baldor-Reliance
Catalog Number
GP233021
Certification Agency
CE | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Gearbox Style
BA
Global Commercial Alias
GP233021
Gross Volume
992 in³
Gross Weight
7 lb
Horsepower Rating UL/CSA
0.067 Hp
Invoice Description
.06HP,DC,BA,2318P,TENV,GM
Made To Order
No
Medium Description
TENV Enclosure, (GP233021)
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Output Shaft Speed
175 r/min
Product Name
DC Permanent Magnet
Product Net Depth / Length
15.5 in
Product Net Height
8 in
Product Net Weight
7 lb
Product Net Width
8 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
.42 A
Rated Torque
17.0 N·m
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Short Description
TENV,
Stocked At (Warehouses)
Singapore, Singapore | China
Feature → Business Impact → Application: The DC permanent magnet design delivers robust torque in a compact footprint, enabling smaller drive enclosures and simplified wiring. Result: lower installation costs and faster commissioning for packaging, lab automation, and small conveyors. Feature → Business Impact → Application: 0.067 HP, 0.42 A rated current, and 180 V armature voltage translate to high efficiency with reduced heat generation, improving energy consumption metrics during continuous operation. Result: longer motor life in controlled temperature zones and lower energy bills in busy lines. Feature → Business Impact → Application: BA gearbox and 175 r/min output shaft speed provide reliable slow-speed, high-torque performance ideal for precision transfer and indexing. Result: improved positioning accuracy and reduced mechanical wear in assembly lines. Feature → Business Impact → Application: TENV enclosure and steel frame offer rugged durability and easier mounting in harsh factory floors. Result: lower maintenance needs, improved ingress protection, and simplified installation planning. Feature → Business Impact → Application: CE/UR certification and RoHS compliance ensure regulatory alignment across regions. Result: smoother global supply, fewer compliance concerns, and reduced risk during audits. Industry insight: for automation integrators, the GP233021 model supports quick stocking, standard controls compatibility, and proven performance under 40 °C ambient conditions, aligning with common plant room configurations and short-changeover cycles.
